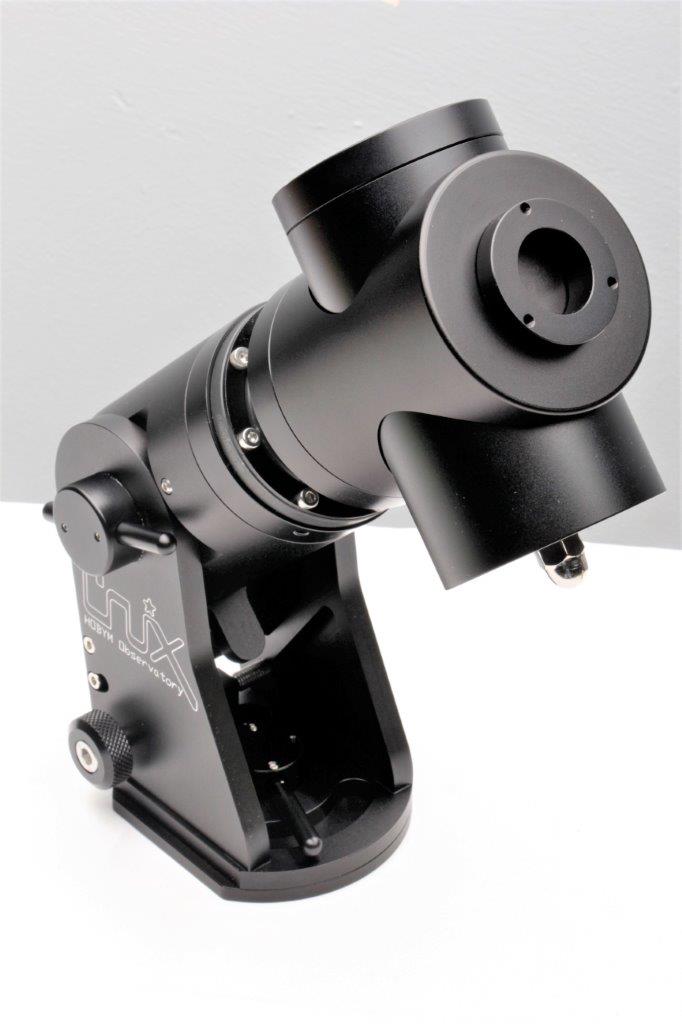

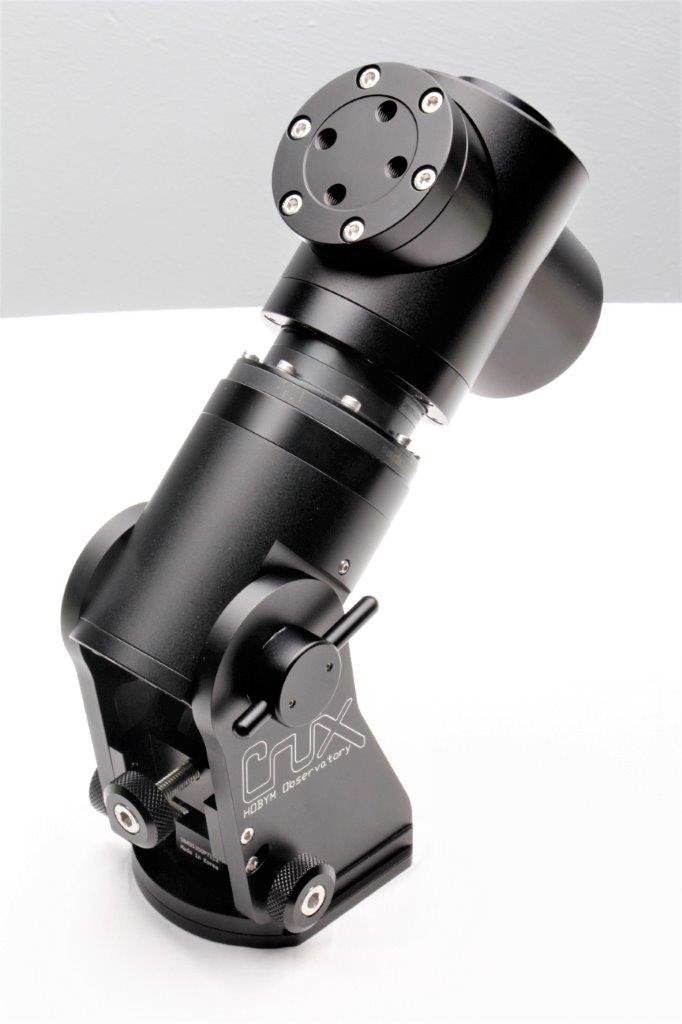

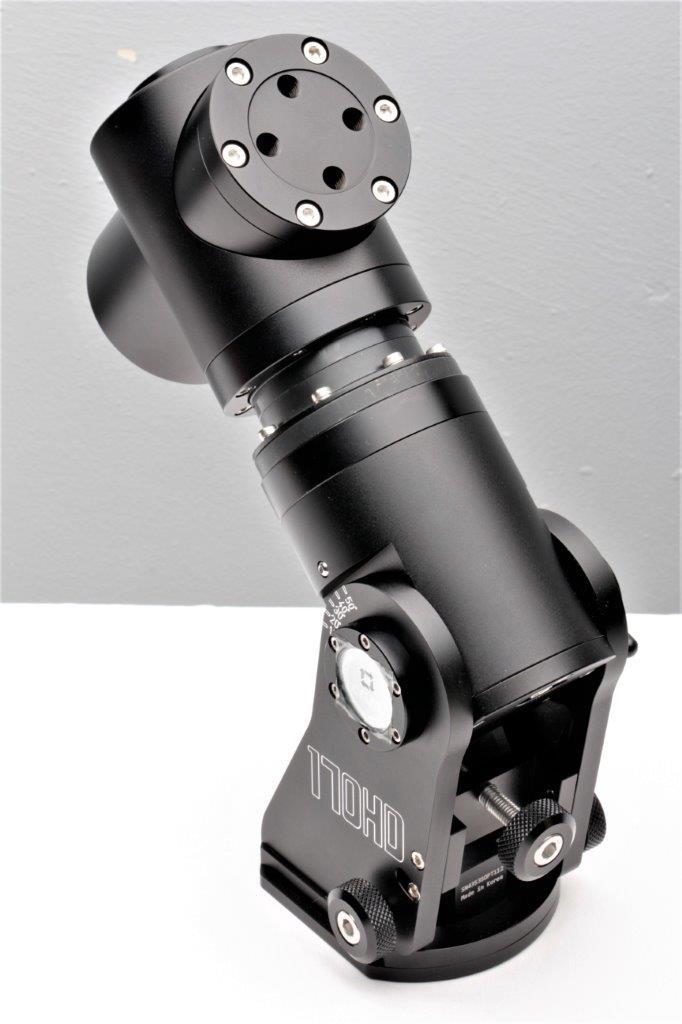

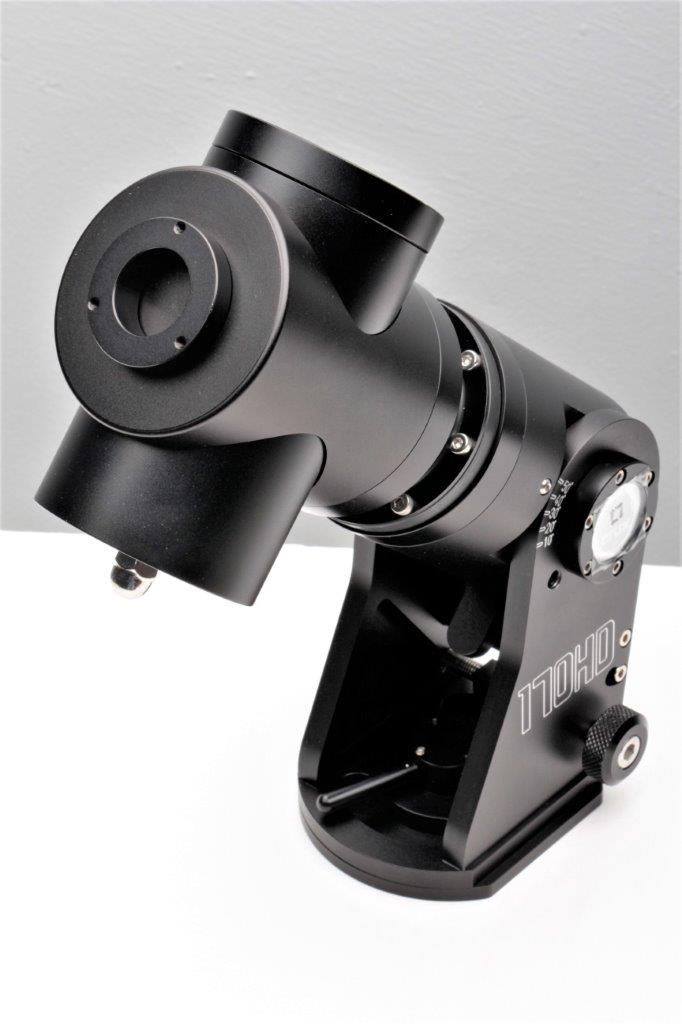

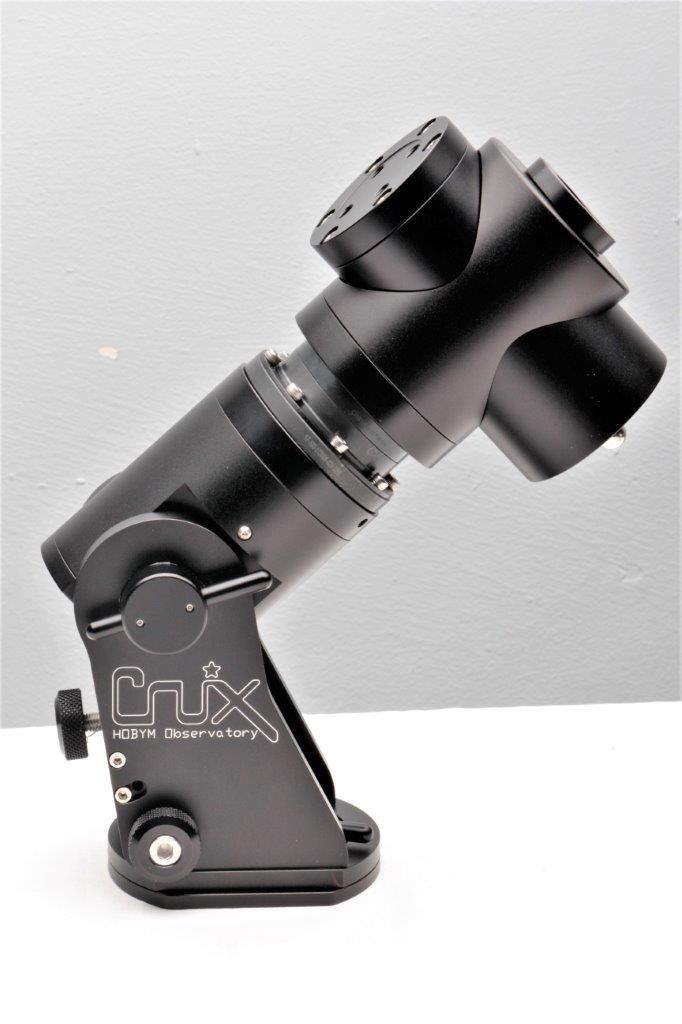

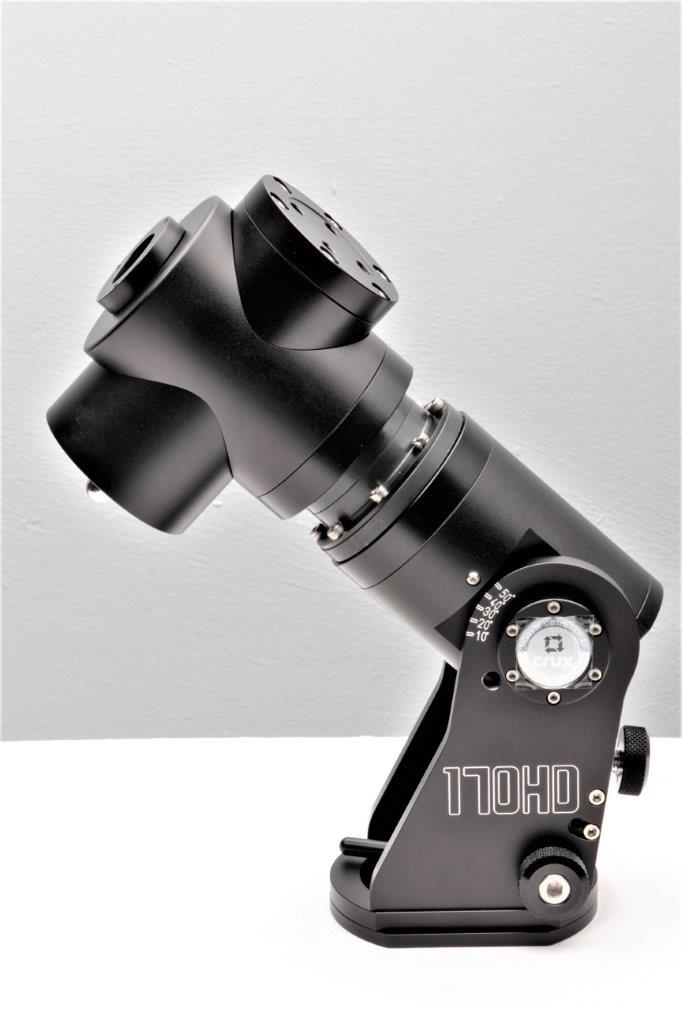

Hobym Crux 170HD Computerized German Equatorial Mount - Black Color

SKU : HOB-CRUX-170HD-BLACKOUT

- Read
  • More on the Way in 14 - 28 Days

Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • This quiet, lightweight, and portable mount can hold up to 5 times its own weight with shaft and counterweights!
  • Perfect tracking for at least 10-minute exposures without the use of guiding.
  • The HOBYM 170, like the rest of HOBYM mounts, has zero backlash with PEC assistance for effectively perfect tracking.
  • Extremely minimal cable management and quick to set up out of the box.
  • Includes TiTan Telescope Control System (TCS) which requires an AC power supply (not included).
  • You will also need a dovetail saddle plate (not included, see below) to mount either V-style or D-style dovetail bars.
  • The AA-DSAD-M8 dovetail plate has a single slot for accepting D Series dovetail bars.
  • The AA-DUAL-M8 dovetail plate has a double slot for accepting D Series dovetail bars as well as V Series dovetail bars.

Product Details

  • Small Mount, Huge Performance

    The Hobym CRUX 170HD is amazingly efficient, weighing an ultra-light 10.8 lbs and able to carry payloads almost 5 times its weight with optional counterweights. The harmonic drive that moves this mount offers excellent tracking performance due to its zero-backlash design. The Hobym CRUX 170HD does not require any counterweights for payloads up to 22 lbs (10 kg). This ensures lower costs and much greater freedom in transporting the mount to remote locations. The mount can carry a full 52.9 lbs (24kg) with the optional counterweight and counterweight shaft.

    Cruz 170HD with TEC 140

    ACCURATE TRACKING

    The Crux 170HD utilizes the P-motion Control system to control cycle errors in the gears. This can minimize the tracking error to less than ±3 arcseconds. You'll be able to take no less than a 10-minute exposure without the use of guiding! This extremely silent mount is also a fraction of the size of other mounts in the same class.

    TITAN TCS

    This incredible telescope mount is equipped with the most advanced telescope control system, the TiTaN TCS, to realize the highest ease of use and control among mobile systems – with or without a computer. The TiTaN TCS controller has high power and the ability to scale and supports advanced wireless environments as well as a connection via serial or USB.

    Alt Text Goes Here

  • specifications

    ComputerizedComputerized
    Drive TypeHarmonic Drive
    Head DesignEquatorial
    Instrument Capacity53 lb
    Mount Head Weight10.8lb
    PECYes
    PortsMicro USB Type B
    PortsRJ12
    PortsRS232
    PortsUSB Type A
    Slew Speed1000x Sidereal
    Telescope ConnectionTakahashi Style 35mm Spacing
  • included items

    • This quiet, lightweight, and portable mount can hold up to 5 times its own weight with shaft and counterweights!
    • Perfect tracking for at least 10-minute exposures without the use of guiding.
    • The HOBYM 170, like the rest of HOBYM mounts, has zero backlash with PEC assistance for effectively perfect tracking.
    • Extremely minimal cable management and quick to set up out of the box.
    • Includes TiTan Telescope Control System (TCS) which requires an AC power supply (not included).
    • You will also need a dovetail saddle plate (not included, see below) to mount either V-style or D-style dovetail bars.
    • The AA-DSAD-M8 dovetail plate has a single slot for accepting D Series dovetail bars.
    • The AA-DUAL-M8 dovetail plate has a double slot for accepting D Series dovetail bars as well as V Series dovetail bars.
