FLI Kepler KL4040 CMOS Back Illuminated Camera w 65mm Shutter

SKU : FL-KL4040-BI-65

- Read
  • Available for Pre-order

Add to Wishlist

Got questions? Click for live chat

  • This option is for 65 mm shutter housing. Please use this link for electronic shutter.
  • Air and Liquid Cooling
  • USB 3.0 Interface
  • Back-Illuminated CMOS

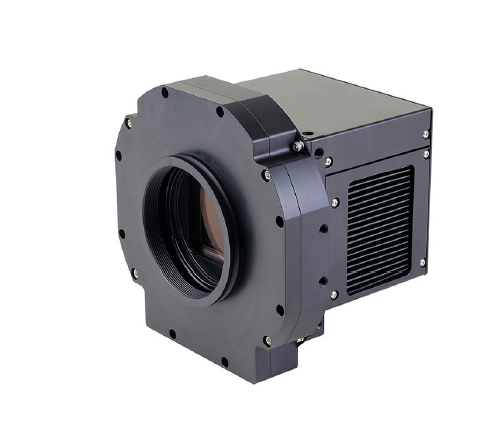

  • Image shows camera with optional 65 mm shutter housing

Product Details

  • The Kepler 4040 BI CMOS camera features the same pixel size and imaging area as the well-known KAF-16803 CCD, but flexes its muscles with ultra-high sensitivity (especially in the UV), super low read noise, and high frame rates... all at a game-changing price to performance ratio!

    While it's not surprising that the KAF-16803 CCD's best performance is with a single long exposure, the Kepler KL4040 does have a better signal-to-noise ratio than the 16803. Even when using stacked short exposures, the signal-to-noise ratio of the KL4040 is still better than the 16803! This results in the KL4040 boasting superior performance and can be used in a wide range of applications.

  • specifications

    ADC16 bit
    Color or MonoMonochrome
    CooledCooled
    Cooling Below Ambient40C
    Dynamic Range14.1 Stops
    Full Well39ke
    Max Frame Rate23fps
    Mega Pixels16.8 MP
    MP13 to 20 MP
    Peak QE90%
    Pixel Array4096 x 4096
    Pixel Size9 microns
    PS7 to 9 Microns
    Read Noise2.3e
    Sensor Diagonal52.1mm
    Sensor TypeCMOS
    SensorGPixel GSENSE4040BSI
    Weight4 lb
  • included items

    • This option is for 65 mm shutter housing. Please use this link for electronic shutter.
    • Air and Liquid Cooling
    • USB 3.0 Interface
    • Back-Illuminated CMOS
    • Image shows camera with optional 65 mm shutter housing
