• The Kepler 4040 BI CMOS camera features the same pixel size and imaging area as the well-known KAF-16803 CCD, but flexes its muscles with ultra-high sensitivity (especially in the UV), super low read noise, and high frame rates... all at a game-changing price to performance ratio!



  While it's not surprising that the KAF-16803 CCD's best performance is with a single long exposure, the Kepler KL4040 does have a better signal-to-noise ratio than the 16803. Even when using stacked short exposures, the signal-to-noise ratio of the KL4040 is still better than the 16803! This results in the KL4040 boasting superior performance and can be used in a wide range of applications.

• specifications

  ADC	16 bit
  Color or Mono	Monochrome
  Cooled	Cooled
  Cooling Below Ambient	40C
  Dynamic Range	14.1 Stops
  Full Well	39ke
  Max Frame Rate	23fps
  Mega Pixels	16.8 MP
  MP	13 to 20 MP
  Peak QE	90%
  Pixel Array	4096 x 4096
  Pixel Size	9 microns
  Port	USB 3.0
  PS	7 to 9 Microns
  Read Noise	2.3e
  Sensor Diagonal	52.1mm
  Sensor Type	CMOS
  Sensor	GPixel GSENSE4040BSI
  Weight	4 lb

• included items

  • This option is for electronic shutter. Please use this link for optional 65 mm shutter housing.
  • Air and Liquid Cooling
  • USB 3.0 Interface
  • Back-Illuminated CMOS

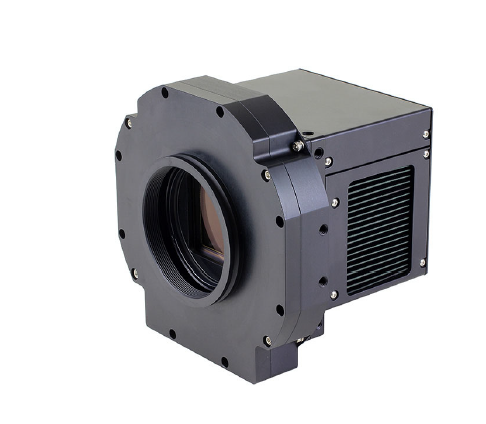

  • Image shows camera with optional 65 mm shutter housing
