ZWO Filter Drawer for Nikon Lens

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

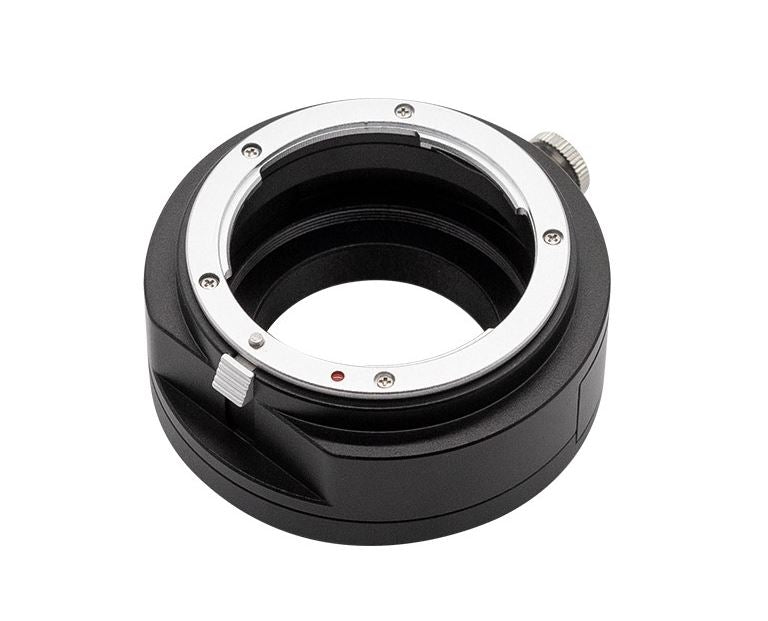

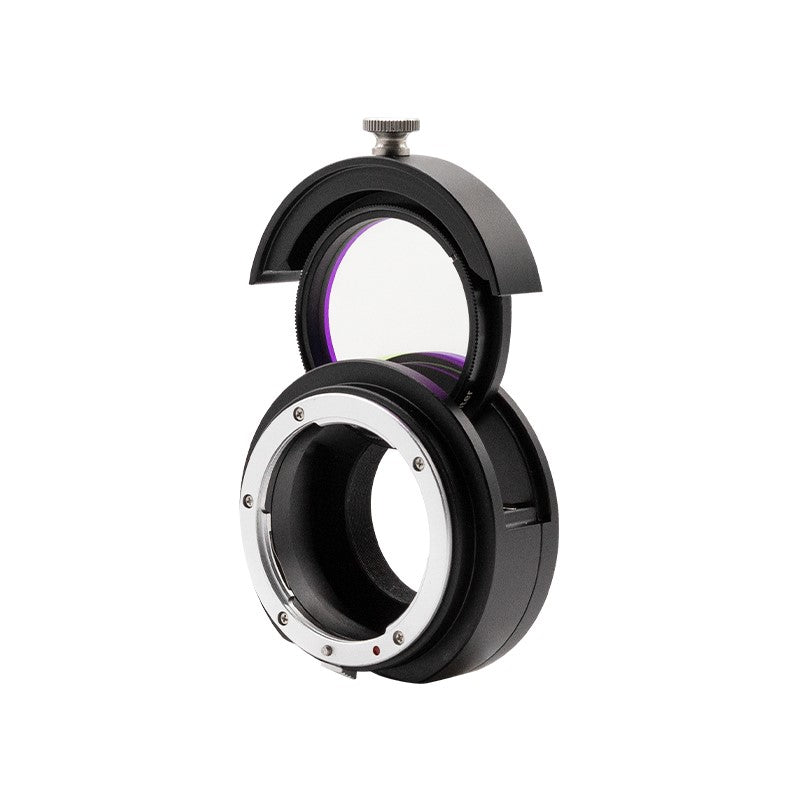

• This filter drawer designed for a Nikon lens has a thickness of 29mm and is perfect for housing 2-inch filters when connecting a Nikon lens to an ASI cooled camera.

  To connect to a full-frame camera, you will need an M54M-M42F adapter.

  Adapter Type	Canon (EF Mount)	Nikon (F Mount)	Thread
  Lens Adapter Only	ZWO-EOS-T2-II	ZWO-NIKON-T2-II	M42 x 0.75
  Lens Adapter w/ Filter Drawer	ZWO-FD-EOS	ZWO-FD-Nikon	M42 x 0.75
  Additional Filter Holder for Filter Drawer	ZWO-F-HLDR-DSLR	ZWO-F-HLDR-DSLR	—
  Lens Adapter to 2" ZWO Filter Wheel (ASI6200, 2400, and 2600 cameras)	ZWO-EFW2-EOS	ZWO-EFW2-NIKON	M54 x 0.75
  Lens Adapter to 1.25"/31mm/36mm ZWO Filter Wheels & Other Cameras	ZWO-EFW-EOS-II	ZWO-EFW-NIKON-II	M42 x 0.75



  Default compatibility with all ASI cooled cameras having a 17.5mm back focus distance including the following camera series:

  • ASI1600
  • ASI294
  • ASI183
  • ASI071
  • AS533
  • ASI2600
  • ASI6200
  • ASI2400

• specifications

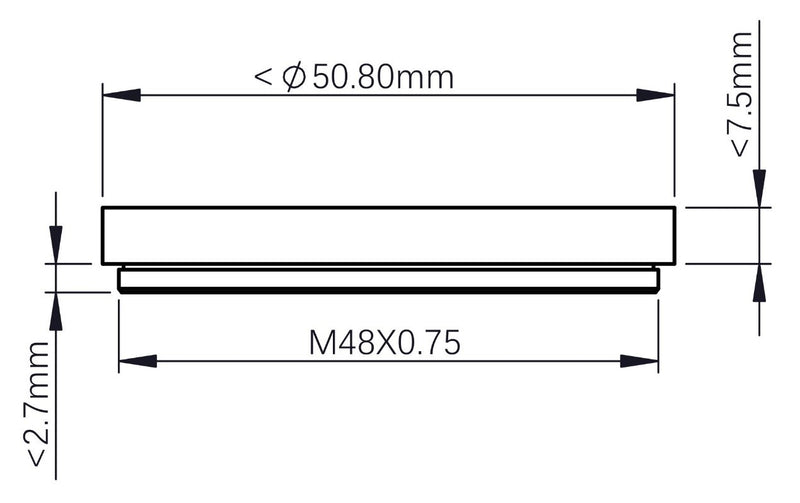

  Back Focus	29mm
  Camera/Eyepiece Side Connection	Male M42x0.75
  Filter Connection	Female M48x0.75

• included items

  • ZWO Nikon Filter Drawer
