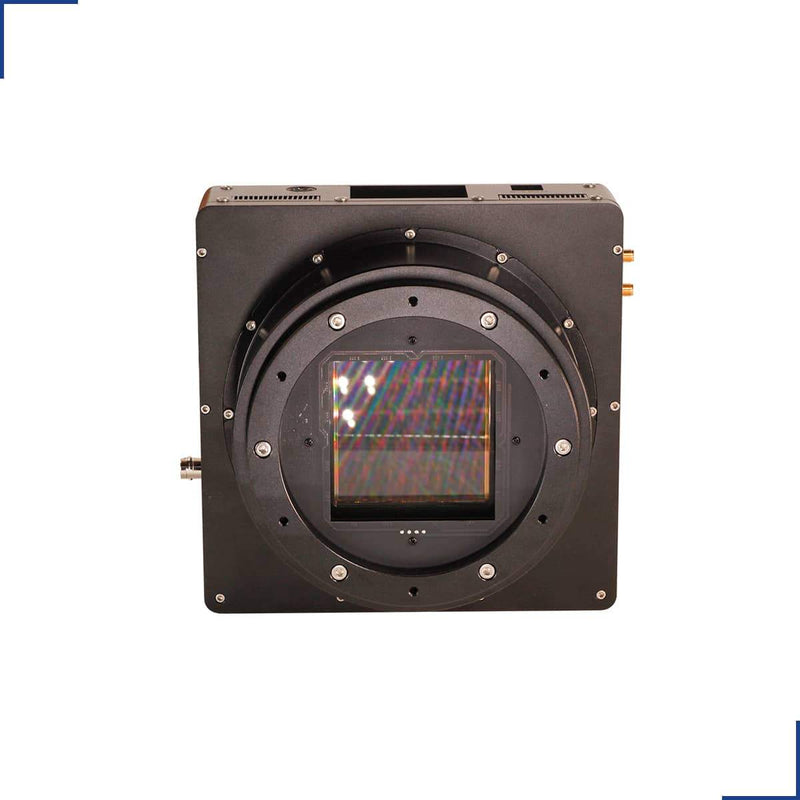

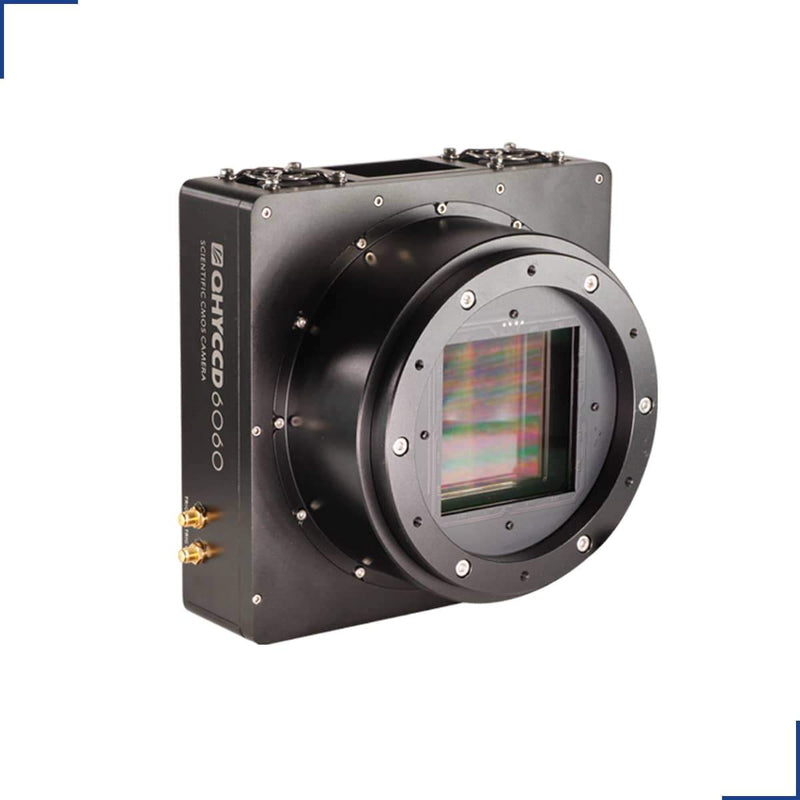

• QHY6060 is a big format scientific CMOS camera with 37.7 Megapixel, 61mm square (89mm diagonal) Gpixel Gsense6060 sensor, 10um pixel size, 14bit ADC, 6K*6K resolution. It has both a back-illuminated version and a front-illuminated version. The FSI version has 72% peak QE and the BSI version has 95% peak QE

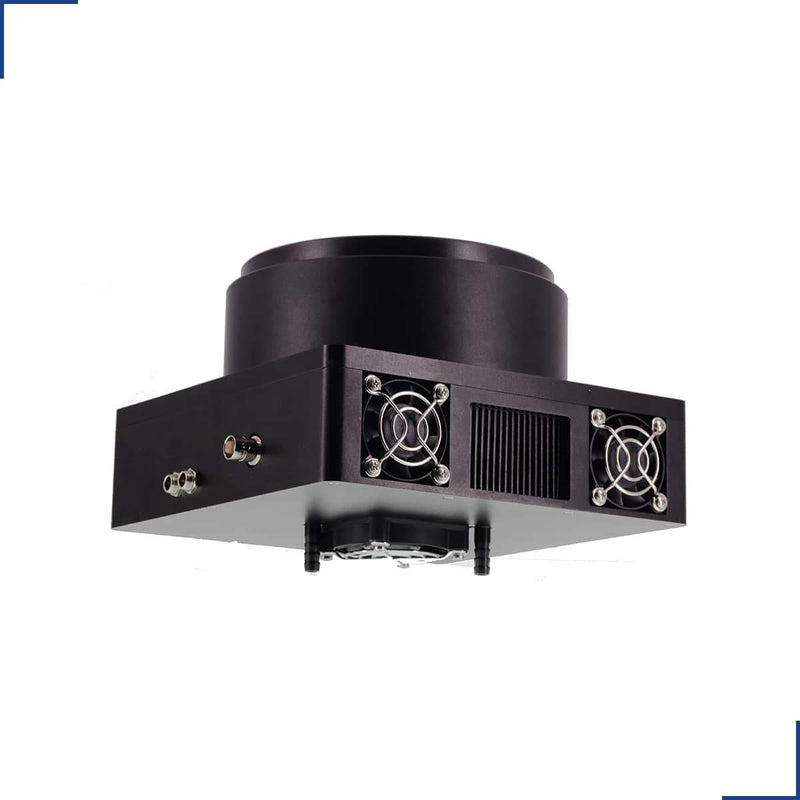

  QHY6060 has a 2-stage TEC cooler and it is air-cooling / water cooling compatible. QHY6060 has USB3.0 high-speed interface.

  The BSI QHY6060 also has a soft X-ray response. In order to use it in a full vacuum environment. The camera needs to be put into a vacuum environment. QHYCCD can offer a special customized design of the full vacuum version. Please contact QHYCCD if you need this version.

  Mechanical Dimensions



  Curves






• specifications

  ADC	14 bit
  Cooled	Cooled
  Cooling Below Ambient	47C
  Dynamic Range	13.9 Stops
  Full Well	70ke
  Mega Pixels	37.6 MP
  MP	More than 20 MP
  Peak QE	95%
  Pixel Array	6134 x 6134
  Pixel Size	10 microns
  PS	10 Microns or Larger
  Read Noise	4.7e
  Sensor Diagonal	86.7mm
  Sensor Type	CMOS
  Sensor	GPixel GSENSE6060 BSI
  Weight	1.2 lb
