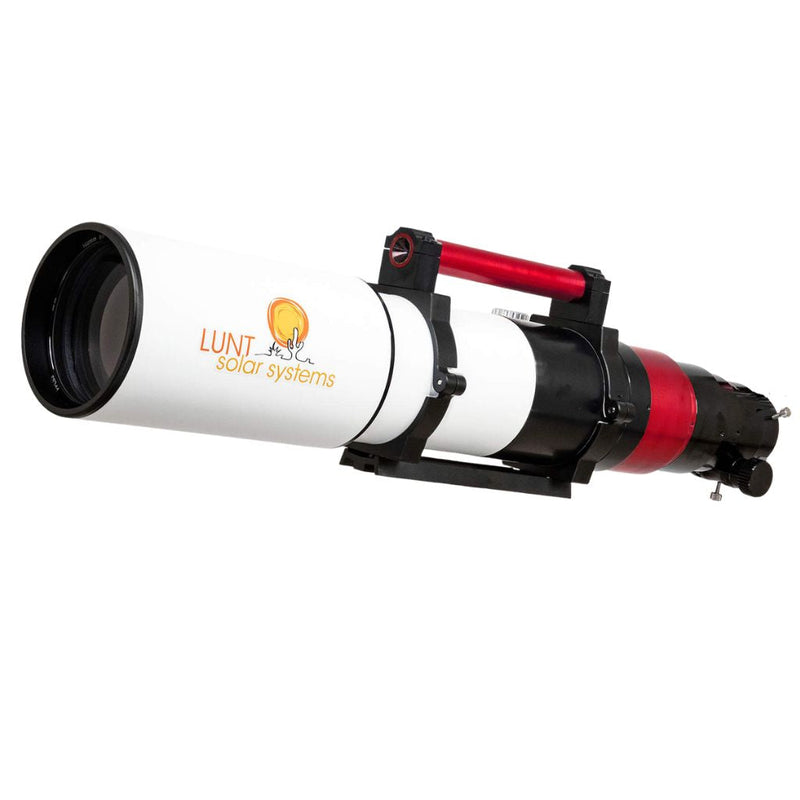

Lunt Solar 100mm Universal Telescope w/ Feather Touch Focuser

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

•


  Enjoy everything the Sun has to offer — prominences, surface granulation, active regions, filaments and more seem to leap from our closest star, all captured in the stellar quality performance you expect from a Lunt Telescope.

  When the Sun sets, simply remove your hydrogen alpha module, replace your focuser, and let the nighttime in!

  The Lunt 100 mm packs a powerful triplet ED APO lens (FPL53 glass) that will guide you across the Milky Way in stunning detail. Now you have a top-of-the-line, extra-low dispersion (ED) nighttime telescope to view planets, stars, the Moon and anything else in between!

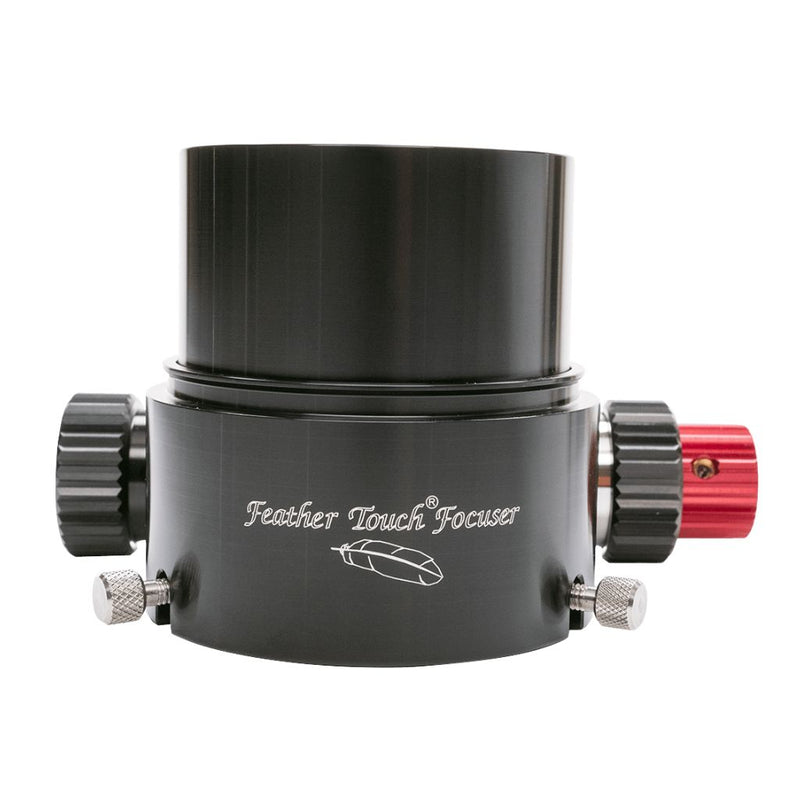

  2″ Feather Touch Focuser

  The Starlight Feather Touch Focusers have been redesigned and is even better than the original! All running parts are now hardened stainless steel on hardened stainless steel. This greatly improves the smoothness, wear characteristics and its robustness. This new design will virtually not wear out and moves with even greater smoothness and precision than the original model. It is still an absolute must for CCD imaging and astro-photography, in addition to making visual use a joy.

  Standard Features:

  • Ultra-smooth coarse/fine focus knobs (10:1 Ratio)
  • Glare resistant black internal baffling
  • Durable hardened stainless steel, steel, and aluminum construction
  • Anodized aluminum fine focus knob
  • Standard Draw Tube with nylon
  • Tipped stainless steel set screws (gentle on eyepieces)
  • Ultra-Low backlash system for accurate control
  • 52 mm threaded Draw Tube to accommodate filters
  • Sleek aesthetic design

  Technical Information:

  • Focuser travel: 1.5″ or 2.5″ (depending on model)
  • Minimum focus height: 35.56 mm
  • Focuser height with adapter plate: 40.64 mm
  • Focus repeatability: 0.01 mm
  • Backlash: 0.0 mm
  • Fine focus reduction: 1,778 mm per step
  • Lifting capability: 2.5 kg = 5.5 lb

• specifications

  Aperture	100mm (4")
  Bandpass	<0.45 Angstrom (Double Stack)
  Bandpass	<0.65 Angstrom (Single Stack)
  Focal Length	714mm
  Focal Ratio	f/7
  Focuser	Feather Touch
  Glass Type	FLP53
  Highest Magnification	175x
  Optical Design	Solar
  Optical Design	Triplet Refractor
  Tube Weight	12.7 lb

• included items

  • Lunt 100 mm Universal Day & Night OTA
  • Ring set assembly (with dovetail & Red Dot Sun Finder handle)
  • Hard case with custom foam insert
  • Feather Touch focuser
