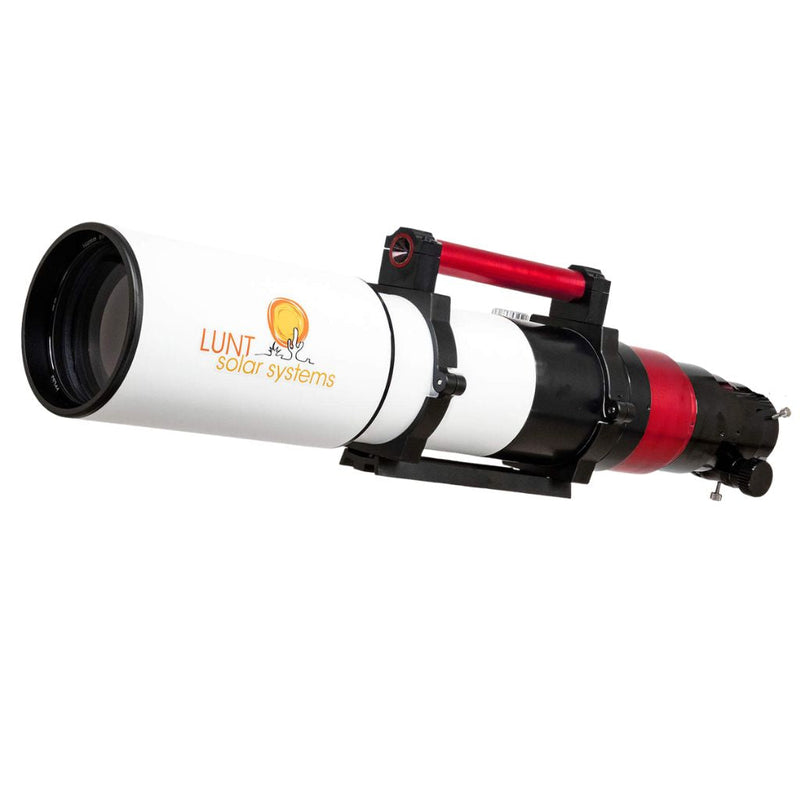

Lunt Solar 100mm Universal Telescope w/ B1200 Blocking Filter & Rack & Pinion Focuser

Brand: Lunt Solar

SKU : LS-LS100MT/B1200R&P

- Read
Looking for a Lunt Solar 100mm Universal Telescope w/ B1200 Blocking Filter & Rack & Pinion Focuser? Shop this product at Agena Astro by clicking the SHOP NOW button!
SHOP NOW
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • Professional Grade APO Triplet OTA
  • The 100 mm Telescope joins Lunt Solar Systems’ new Universal day and night line-up, allowing you to enjoy the complete range of astronomical observation using only one telescope
  • With 100 mm of aperture, this scope is big enough to impress in any of its configurations, while retaining a transportation-friendly form factor for use during the day or night
  • Like all of Lunt’s Universal Telescopes, our 100 mm supports multiple wavelength configurations

Product Details


  • Enjoy everything the Sun has to offer — prominences, surface granulation, active regions, filaments and more seem to leap from our closest star, all captured in the stellar quality performance you expect from a Lunt Telescope.

    When the Sun sets, simply remove your hydrogen alpha module, replace your focuser, and let the nighttime in!

    The Lunt 100 mm packs a powerful triplet ED APO lens (FPL53 glass) that will guide you across the Milky Way in stunning detail. Now you have a top-of-the-line, extra-low dispersion (ED) nighttime telescope to view planets, stars, the Moon and anything else in between!

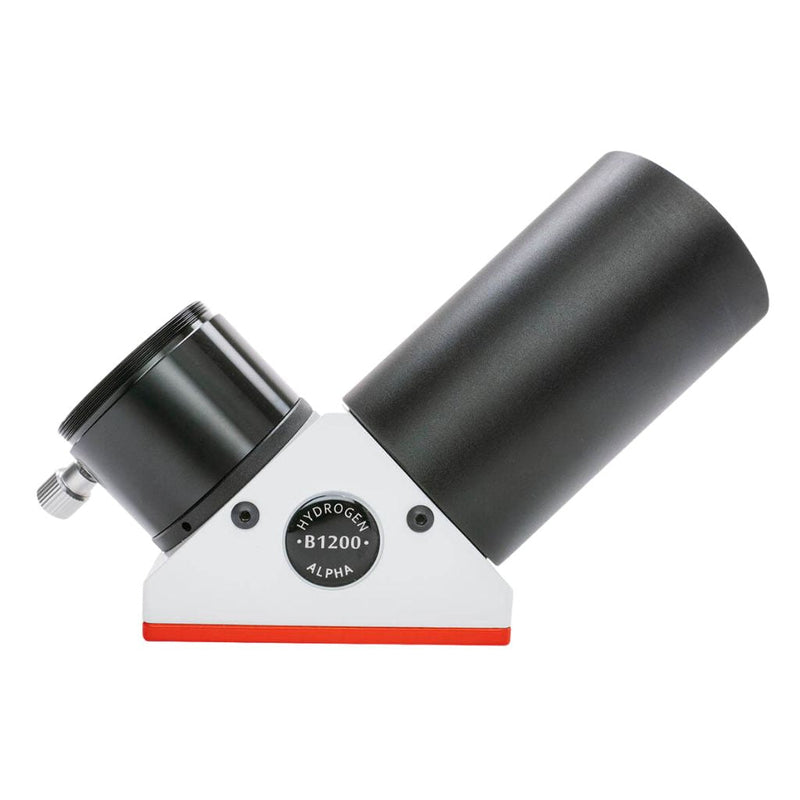

    B1200 Blocking Filter

    A Blocking Filter is a required component when using any Lunt solar filter or solar telescope products. The housing contains additional filters that are needed for safety when viewing the Sun. Do not use a Lunt Solar Systems telescope or filter without a Lunt brand blocking filter. Lunt Solar can only warranty safety or performance when one of their blocking filters is paired with a Lunt H-alpha filter or telescope.

    Focal Length Suggestions for Visual Use:

    • B600 : For visual use on telescopes with focal lengths up to 600 mm
    • B1200: For visual use on telescopes with focal lengths up to 1200
    • B1800: For visual use on telescopes with focal lengths up to 1800 mm
    • B3400: For visual use on telescopes with focal lengths up to 3400 mm

    When imaging with a Lunt Solar System it is recommended that the user opt for the next larger blocking filter than that recommended for visual use. This is due to the fact that most imaging systems require additional “back focus”. It’s important to realize that the blocking filter be moved further up the light cone. As a result, the aperture of the blocking filter needs to be larger to allow for the larger cone size.

    Focal Length Suggestions for Imaging Use:

    • B600: For imaging use on telescopes with focal lengths up to 400 mm
    • B1200: For imaging use on telescopes with focal lengths up to 600 mm
    • B1800: For imaging use on telescopes with focal lengths up to 1200 mm
    • B3400: For imaging use on telescopes with focal lengths up to 1800 mm

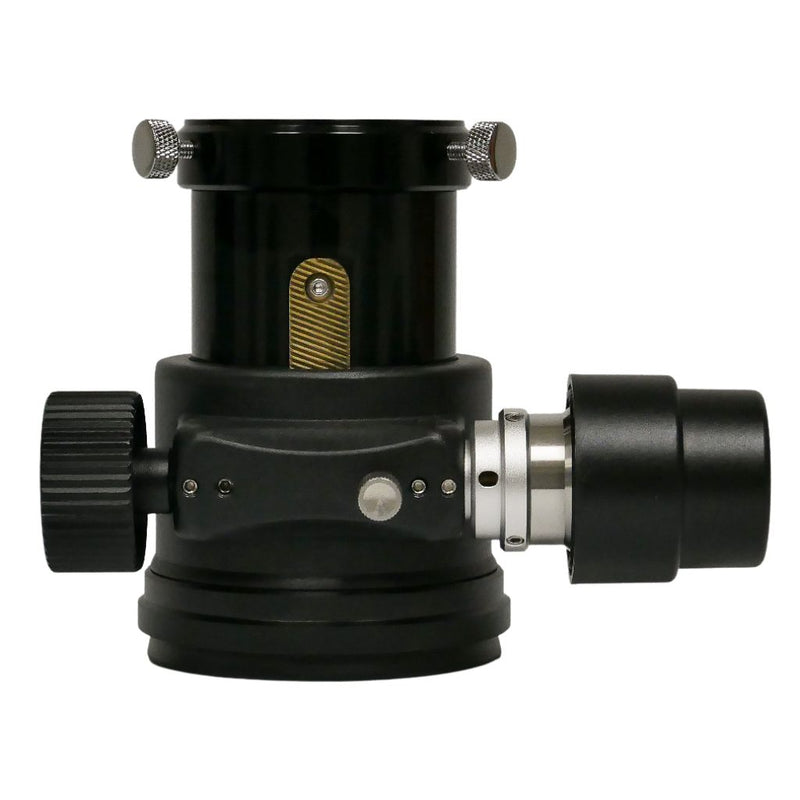

    2" Rack & Pinion Focuser

  • specifications

    Aperture100mm (4")
    Bandpass<0.45 Angstrom (Double Stack)
    Bandpass<0.65 Angstrom (Single Stack)
    Focal Length714mm
    Focal Ratiof/7
    FocuserRack & Pinion
    Glass TypeFLP53
    Highest Magnification175x
    Optical DesignSolar
    Optical DesignTriplet Refractor
    Tube Weight12.7 lb
  • included items

    • Lunt 100 mm Universal Day & Night OTA
    • Ring set assembly (with dovetail & Red Dot Sun Finder handle)
    • Hard case with custom foam insert
    • B1200 blocking filter
    • Rack & Pinion focuser
