iOptron HEM44 Hybrid Equatorial Mount

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

• Freedom from cumbersome counterweights and shaft is here!

  Introducing the HEM44 and the HEM44EC, iOptron’s latest revolutionary hybrid strain wave gear mounts. These light weight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 13.65lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HEM44 brings this vision to reality.

  Utilizing state of the art strain wave gear technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM44s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

  A HEM44 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

  The HEM44EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

  Features:

  • Advanced strain wave drive technology
  • Payload capacity of 20 kg (44 lbs) with the mount weight of 6.2 kg (13.65 lbs)
  • CNC machined
  • Unique friction brake to safely stop movement during a planned or unplanned power interruption
  • 270 second gear period
  • Go2Nova® hand controller with ~212,000 object database
  • iPolar electronic polar scope for easy and accurate polar alignment
  • Cable management system, no hanging exterior cables to moving parts
  • Dual saddle (Vixen and Losmandy-D styles)
  • Built in zero position search and locator
  • Power down position and location memory
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi (via hand controller)
  • USB port for firmware upgrade and computer control
  • Aluminum carrying case
  • Two year warranty

• specifications

  Computerized	Computerized
  Database	212000 Objects
  Encoders	No
  Free Shipping	Yes
  Head Design	Hybrid
  Instrument Capacity	44 lb
  Latitude Range	15 to 65 Degrees
  Mount Head Weight	13.7 lb
  Periodic Error Correction (PEC)	No
  Ports	DC12V 5A
  Ports	ST4
  Ports	USB 2.0
  Power Supply	100 to 240V
  Telescope Connection	Dual Vixen & Losmandy
  Warranty	2 years

• included items

  • HEM44 mount head
  • Go2Nova® hand controller

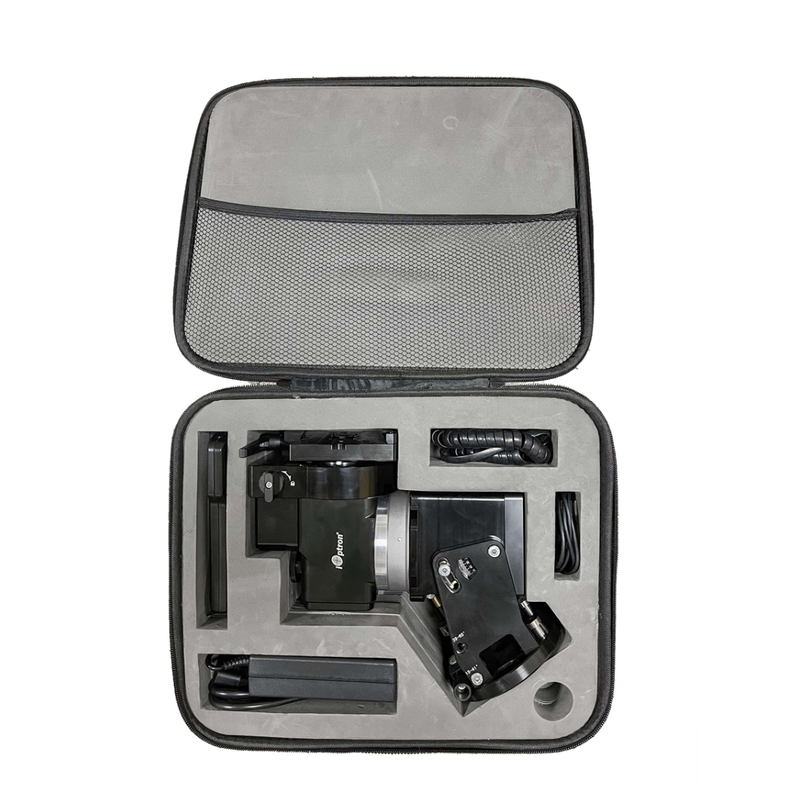

  • Aluminum carrying case
  • Power supply
