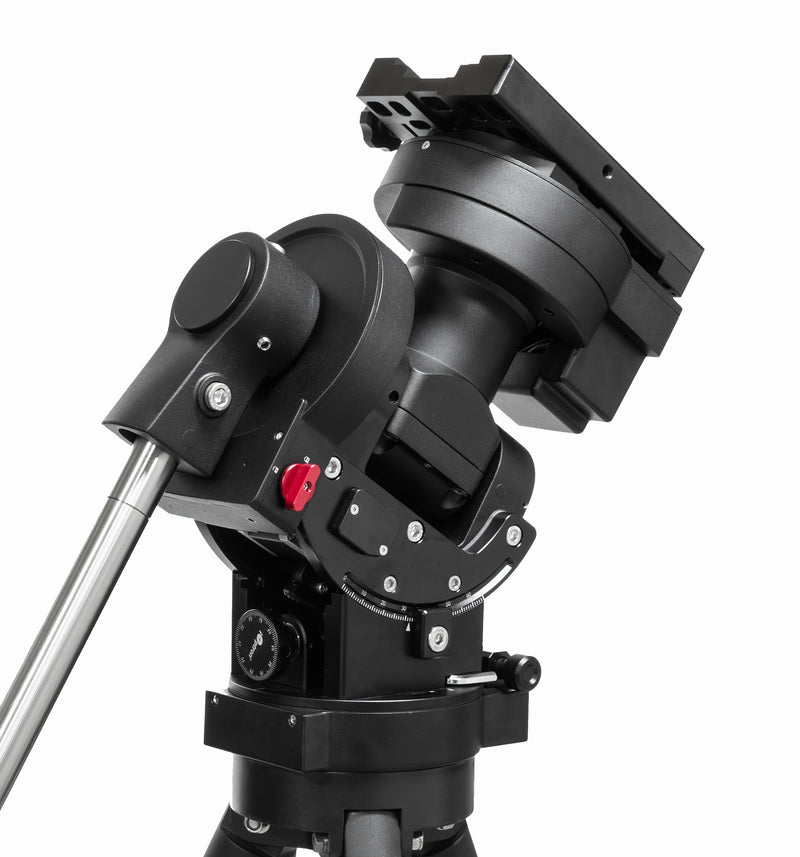

iOptron CEM70ECW w/ iPolar

Brand: iOptron

SKU : IO-C704AW0

- Read
  • One Left in Stock

Add to Wishlist

Got questions? Click for live chat

  • A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
  • Ideal for both visual observation and astrophotography

Product Details

  • The CEM70 series mounts are new standard bearers for equatorial mounts in the 70lb payload segment. The mounts are packed with advanced features however the CEM70G is the first of its type with an onboard optical guiding system increasing tracking accuracy while streamlining the components resulting in a more portable imaging setup.

    Retaining the inherent properties of the center balance design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient accurate portable mount. With precise GOTO pointing and accurate tracking, the CEM70EC is a solid performer for observers and imagers alike.

    Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guider, and camera, and cumulatively assure users the CEM70 designed with their needs in mind.

    Features

    • Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
    • Easy to use and reliable gear clutches
    • Precision altitude and azimuth adjustment
    • Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
    • iPolarTM electronic polar scope
    • Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology with built in heater
    • High precision tracking with low periodic error (PE <0.3 arcsec rms)
    • Realtime periodic error correction (RPEC)
    • 32-channel Global Positioning System (GPS)
    • USB3.0 powered connection
    • Integrated ST-4 autoguiding port
    • Advanced cable management system with more choices
    • Spring loaded 8" Vixen/Losmandy dual saddle
    • NEW iOptron subsidized TheSky Imaging Edition
    • Built-in Wi-Fi connectivity
  • specifications

    Azimuth Adjustment Range± 4 Degrees
    Communication PortUSB 3.0 powered
    Dovetail Saddle8" Losmandy D & Vixen
    Latitude Adjustment Range0°~ 65°
    Mount Weight13.6kg (30lbs)
    Payload Capacity31.8kg (70lbs)
    Payload Weight Ratio2.33
    Warranty2 Year Warranty
    Worm Period348 sec
  • included items

    • CEM70ECW mount head
    • Hard case
    • Accessories
    • 1x 9.5kg counterweight
    • AC power adapter
