FLI Kepler Gsense4040 CMT Front Illuminated Grade 2 - 65mm

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

• The KL4040 scientific CMOS camera has the same pixel size and imaging area as the popular 16803 CCD Sensor. What makes is special is that it has half the noise and 40% higher quantum efficiency than 16803. This Kepler cooled CMOS cameras provides ultra-high sensitivity, extremely low noise, and high frame rates, all at a game-changing price to performance ratio.

  The KL4040 is ideal for low-light applications including Confocal Microscopy, Light Sheet Microscopy, TIRF and GFP, Orbital Debris Detection, Super-Resolution Microscopy.

  Supplied with three operational modes: High Gain, Low Gain, and High Dynamic Range. Depending on which mode you choose to use your can either shoot 24 (HDR) or 48 (LDR) frames per second at full resolution. In the High Dynamic Range mode, you will be able to capture 14.3 stops of Dynamic range for in both long exposure and video modes

• specifications

  ADC	16 bit
  Back Focus	16.5 mm
  Camera Connection	Male FLI Atlas Dovetail
  Color or Mono	Monochrome
  Cooled	Cooled
  Delta T	45C
  Dynamic Range	14.3 Stops
  Full Rez Frame Rate	8fps
  Full Well	70ke
  Max Frame Rate	24fps
  Mega Pixels	16.8 mp

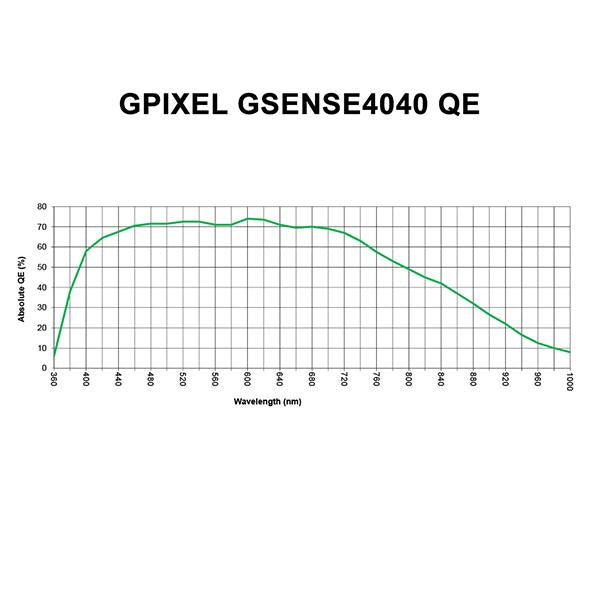

  Peak QE	74%
  Pixel Array	4096 x 4096
  Pixel Size	9 microns
  Read Noise	3.7e
  Sensor Diagonal	52.1 mm
  Sensor Type	CMOS
  Sensor	GPixel GSense4040
  Weight	3 lbs

• included items

  • USB3.0 (3 Gbps)
  • Liquid and/or Air Cooled
  • Deep Cooling (up to 55°C below ambient)
  • LDR and HDR modes
  • Reaches operating temperatures in 5 minutes
  • 14.3 stops of dynamic range
