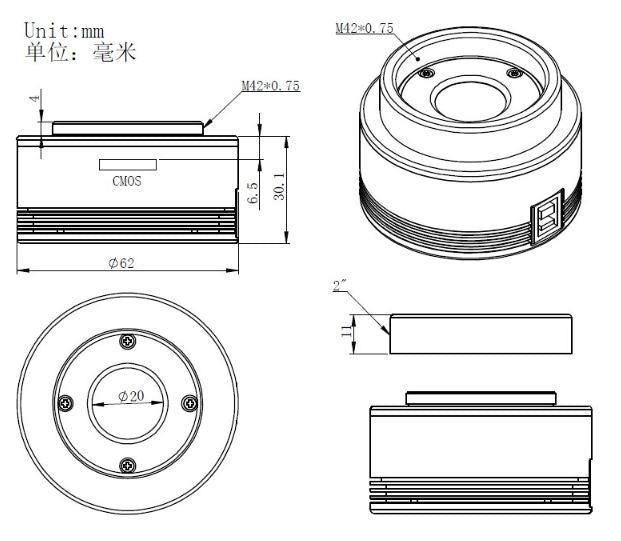

ZWO ASI 174 Monochrome CMOS Telescope Camera Engineer Drawing
gallery
gallery
gallery

ZWO ASI174MM Monochrome Planetary Imaging Camera

SKU : ZWO-ASI174MM

- Read

  • Free Shipping

  • More on the way in 14-28 days

$499

Price Match Guarantee

Add to Wishlist

Got questions? Click for live chat

  • Ideal for solar, lunar, planetary, and deep-sky imaging!
  • Sensor type: 1.5-inch CMOS Monochrome.
  • Resolution: 2.3 MP.
  • Pixel Array: 1936 x 1216.
  • Pixel Size: 5.86µm x 5.86µm.
  • Maximum Frame Rate at Full Resolution: 164fps.
  • Maximum Frame Rate at 640 x 480: 397fps.



Product Details

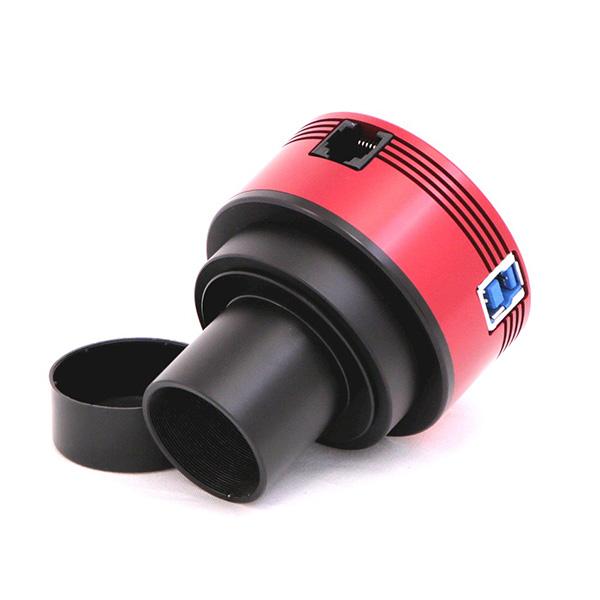

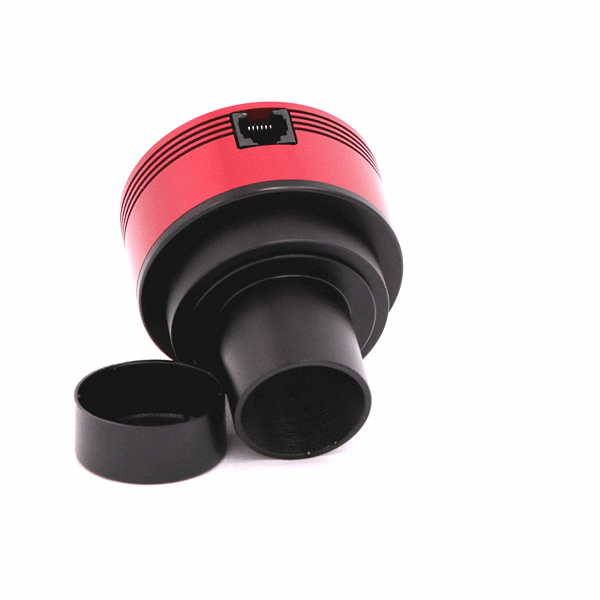

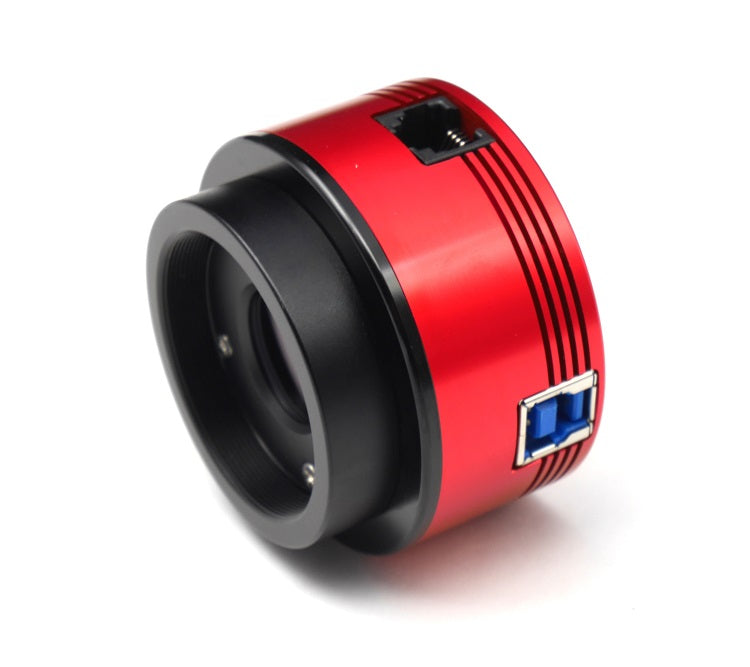

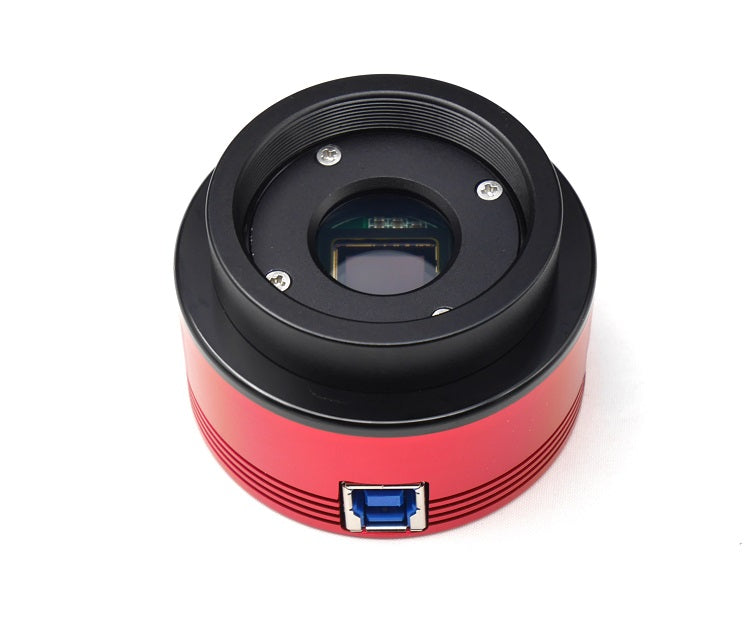

  • The ZWO ASI174MM Monochrome Planetary Imaging Camerais ideal for solar, lunar, planetary, and some deep-sky imaging. Designed with modern features like a USB 3.0 port, an AR window, ST-4 guide port, and 0.25-inch tripod thread, make it an exceptional performing astrophotography camera.

    The ZWO ASI174MM Monochrome Camera Specifications at a Glance

    EXPERIENCE ASTROPHOTOGRAPHY WITH THE ZWO ASI174 MONOCHROME CAMERA

    Optimum Design

    Encamped in a vibrant, metallic red aluminum housing and with both a USB and ST4 autoguider port, the ZWO ASI174MM is versatile and fast.

    Prioritized Mechanics

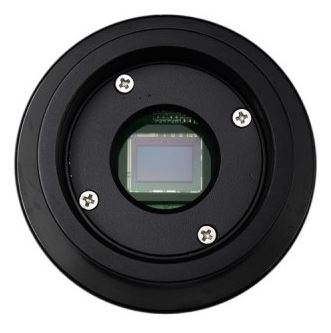

    Sony IMX174 CMOS Sensor

    Bad vision, wind, or movement can alter the image if the readout speed is not quick enough (< 30fps). The Sony IMX174 CMOS sensor assures images of moving objects avoid focal plane distortion, something crucial during solar and lunar imaging.

  • specifications

    ADC12 bit
    Back Focus17.5 mm
    Camera ConnectionM42x0.75 mm
    Color or MonoMonochrome
    CooledUncooled
    Free ShippingYes
    Full Rez Frame Rate128fps
    Full Well32ke
    Max Frame Rate577fps
    Mega Pixels2.4 mp
    Pixel Array1936 x 1216
    Pixel Size5.86 microns DC
    Read Noise6e
    Sensor Diagonal13.4 mm
    Sensor TypeCMOS
    SensorSony IMX174
    Warranty2 Year Warranty
