ZWO ASI6200MM Pro Cooled Monochrome Camera
- 64 MP Monochrome Full Frame Sensor.
- Thermo Electric Cooling (TEC) down to -30°C below ambient.
- Shoots 8k video!
- Perfect for Deep Space Astrophotography and Scientific Imaging.
Accessories Added
Want Help?
Ask Our Telescope Experts
1.800.483.6287

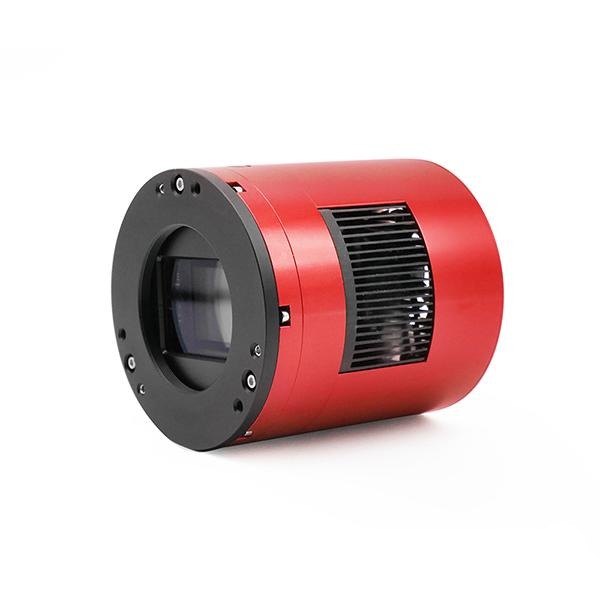

ZWO ASI6200MM Pro Cooled Monochrome Camera
ASI6200MM Pro
Versatile. Compact. Exceptional Image Quality
The ZWO ASI6200MM Pro is a full-frame camera packed with features that help you produce world-class images. With exceptional noise reduction technology and video capabilities, the 6200 Pro is ideal for :
- Deep Space Astrophotography.
- Planetary Imaging.
- Sky Surveys.
- Microscopy.
- Forensic Science.
ADAPTABLE CAMERA BODY

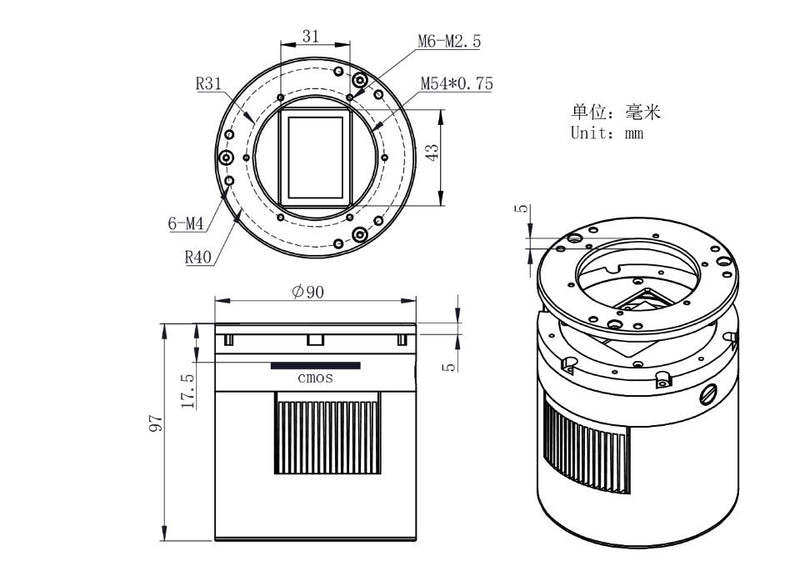

Like most ZWO cooled cameras, the 6200 Pro body has an extremely short back focus of 17.5 mm. This makes it very easy to adapt to almost any telescope system. Especially telescopes or reducers where back focus is very scarce.

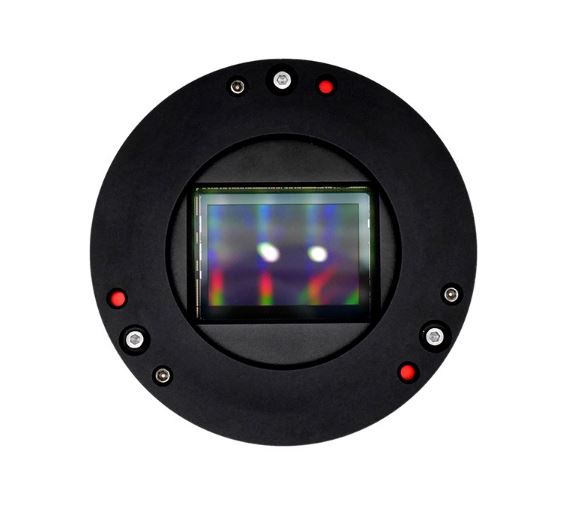

Light-Sensitive, Backlit IMX455 Sensor
The back-illuminated CMOS image sensor from Sony provides sensitivity and noise reduction essentially unmatched in most cameras of the same class. These are two of the key factors when looking to enhance your image quality. Native to CMOS sensors, the IMX455 also functions with extremely low power consumption while maintaining high-speed operations.
Camera Performance and Cooling
The ZWO ASI6200 has a dynamic range of up to 14 stops and quantum efficiency of 80%. Under this operation, a two-stage TEC cooling system is used to lower the CMOS sensor temperature to more than 30 degrees below ambient temperatures, greatly reducing dark current generation and sensor noise even during long exposures. Dark current suppression technology is also integrated into this camera for further reduced noise.
At a cooling temperature of zero degrees Celsius, the dark current noise is only 0/004e/s/pix, meaning a 300s exposure will only cause 1.2e of dark current noise!

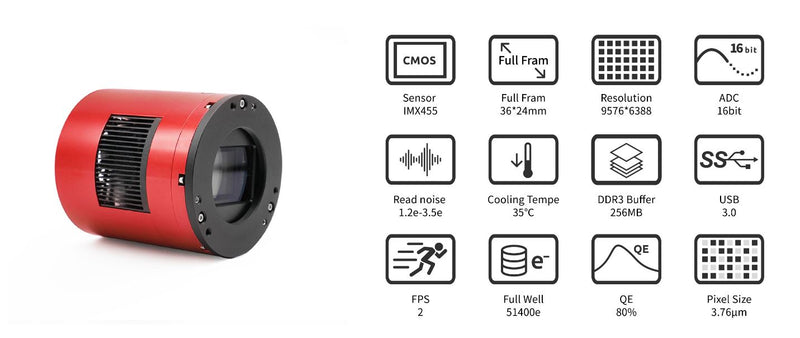

SPECIFICATIONS
| ADC | 16 bit |
|---|---|
| Back Focus | 17.5 mm |
| Camera Connection | Female M54x.75 |
| Color or Mono | Monochrome |
| Cooled | Cooled |
| Delta T | 60C |
| Dynamic Range | 13.9 Stops |
| Free Shipping | Yes |
| Full Rez Frame Rate | 9fps |
| Full Well | 51ke |
| Mega Pixels | 61.2 mp |
| Peak QE | 80% |
| Pixel Array | 9576 x 6388 |
| Pixel Size | 3.75 microns |
| PS | 3 Microns or Smaller |
| Read Noise | 3.5e |
| Sensor Diagonal | 43.2 mm |
| Sensor | Sony IMX455 |
| Weight | 1.4 lbs |
INCLUDED ITEMS
Camera Bag
ASI Camera Body
2 m USB3.0 Cable
ASI Quick Guide
M54 to M48 21 mm Adapter
M48 16.5 mm Spacer
2 " Cover
Hex Wrench
M42-M48 0mm Adapter
0.5m USB 2.0 Cable x2
