ZWO ASI585MC USB 3.0 Color Astronomy Camera

SKU : ZWO-ASI585MC

- Read
Add to Wishlist

Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • OSC solar, lunar & planetary camera
  • Utilizes the Sony IMX585 one shot color sensor
  • Zero amp glow & large full well capacity
  • 91% quantum efficiency

Product Details

  • ZWO's latest OSC planetary camera features the Sony IMX585 sensor for high resolution photos of the planets, sun and moon. The camera boasts zero amp glow, meaning your images will be clear of unnecessary readout noise.

    ZWO ASI432MM Color Solar & Lunar Camera Specs

    ZWO ASI585MC Color Planetary Camera Specs

    The ASI585MC's large sensor size allows the camera to maintain the same 2.9μm pixel size of the comparable ZWO ASI462MC camera, while offering 4x the resolution, with a total of 8.29 megapixels for a 4K capture. This sensor is ideal for solar and lunar imaging, and may be used as an all-sky camera to capture local weather conditions.

    Zero Amp Glow with STARVIS 2

    The new IMX585 sensor used in this camera offers zero amp glow, and improves upon the ASI485MC's dark current noise and full well capacity. Additionally, it improves upon its predecessor's light sensitivity by as much as 1.5x.

    Model
    ASI585MC
    ASI485MC
    Color or mono
    Color
    Color
    Amp Glow
    No
    Yes
    Sensor Size
    1/1.2"
    1/1.2"
    Resolution
    3840x2160 4K
    3840x2160 4K
    Pixel Size
    2.9μm
    2.9μm
    Readout Noise
    0.8-12e
    0.6-6.45e
    QE Peak
    91%
    85%
    Full Well
    40ke
    13ke
    ADC
    12bit
    12bit
    Back Focus
    6.5mm/17.5mm
    6.5mm/17.5mm
    Maximum FPS
    46.9fps
    39fps
    Disgonal
    12.84mm
    12.86mm

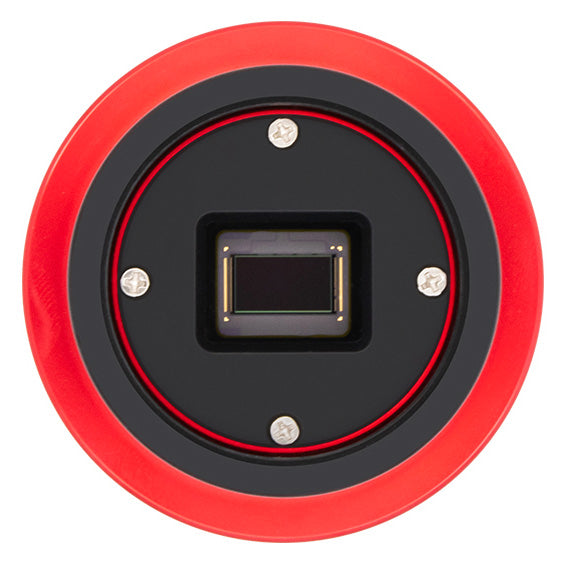

    The ASI585MC's sensor is back-illuminated. This complex manufacturing process moves structural wiring from the front of the light sensititve chip to the back, giving the sensor a larger light gathering area for higher sensitivity. This results in excellent low light photos thanks to the resulting low readout noise and large full well depth.



    Full Well Gain Chart
    Dymanic Range vs. Readout Noise



    ASI432MM Quantum Efficiency & Amp Glow

    Quantum efficiency is extremely important when it comes to efficiently collecting available light. This camera boasts an impressive 91% QE, which when paired with its zero amp glow characteristic, makes for highly detailed and accurate captures.

    Quantum Efficiency

    Quantum efficiency

    300 second exposure with zero ampo glow

    300 second exposure with zero amp glow

    ASI5852MC Dimensions Diagram

    Conection Method

    ASI5852MC Dimensions Diagram

    Dimensions

    What's in the box

    What's in the box

  • specifications

    ADC12 bit
    Back Focus6.5mm
    Camera ConnectionFemale M42x0.75
    Color or MonoColor
    CooledUncooled
    Dynamic Range12 Stops
    Free ShippingYes
    Full Rez Frame Rate46.9fps
    Full Well40ke
    Max Frame Rate46.9fps
    Mega Pixels5 to 8 MP
    Peak QE91%
    Pixel Array3840 x 2160
    Pixel Size2.9 microns
    Read Noise1e
    Sensor TypeCMOS
    SensorSony IMX585
    Weight0.28 lb
  • included items

    • ASI585MC camera body
    • 1.25" cover
    • 2" cover
    • ST4 cable
    • 1.25" nose piece
    • Quick guide
    • 2.0m USB 3.0 cable
