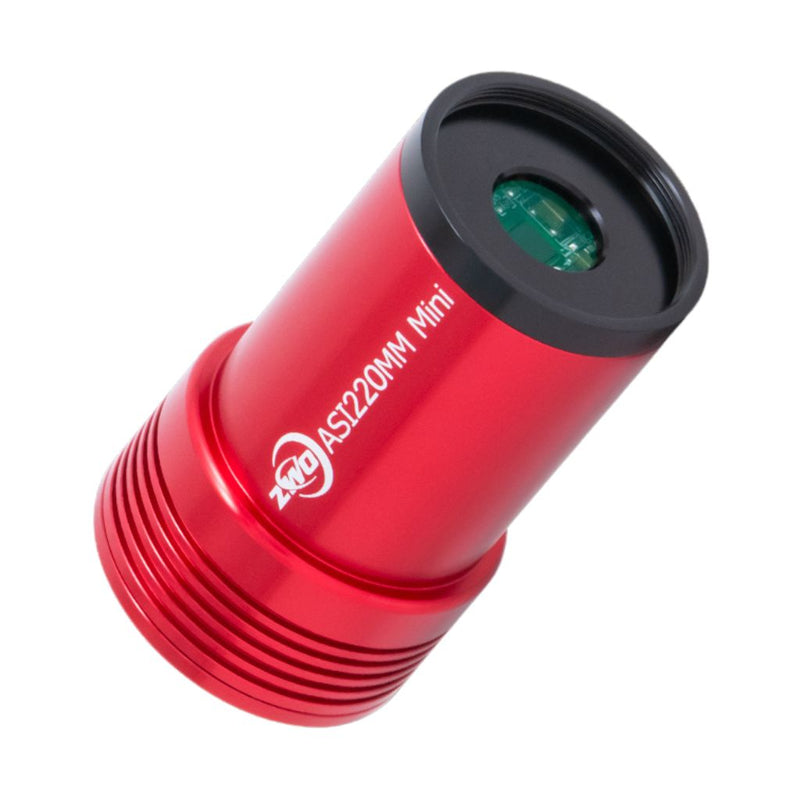

ZWO ASI220MM Mini USB2.0 Mono Guide Camera

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

• New Generation of Guide Cameras

  ASI220MM Mini camera integrates 1/1.8" SC2210 sensor (7.68mm x 4.32 mm). It is a mono guide camera with excellent near infrared sensitivity. this camera has 4um * 4 um pixels with an array of 1920x1080 and a full well capacity of 8780e. The protective window is AR coated.



  Iteration

  The ASI220MM Mini can be regarded as an upgraded version of the ASI290MM mini. It has a bigger sensor format and larger pixel size with better NIR Sensitivity.



  Camera Performance

  The readout noise of the ASI220MM Mini can be as low as 0.6e.



  Quantum Efficiency

  ZWO believes the QE peak value of the ASI220MM Mini is 92% at 500nm.



  USB 2.0 Port & ST4 Port

  1. ST4 Port: The camera can be connected directly to the auto-guider port of the mount.

  2. USB 2.0 Port: The camera features a USB-C 2.0 port that provides you with an easier connection method than the ordinary USB port.



  Connection Methods



  In Connection with OAG

  The Mini camera series are all well suited for OAG use. It can be pushed inwards or pulled outwards to allow you to ensure that the distance from the prism to the main camera sensor is exactly equal to the distance from the prism to the guide camera sensor.



  In Connection with CD Adapter and CS Lens



  In Connection with 1.25" Extender



  Mechanical Diagram



• specifications

  ADC	12 bit
  Back Focus	8.5/12.5mm
  Color or Mono	Monochrome
  Free Shipping	Yes
  Full Well	8.78ke
  Max Frame Rate	14fps
  Mega Pixels	2.07MP
  Peak QE	92%
  Pixel Array	1920x1080
  Pixel Size	4 microns
  Protective Window	21 to 1.1 AR
  Read Noise	0.6 to 3.2e
  Sensor Diagonal	8.81mm
  Sensor Size	7.68x4.32mm
  Sensor Type	CMOS
  Sensor	SC 2210
  Shutter	Rolling Shutter

• included items

  • ZWO ASI220MM Mini USB2.0 Mono Guide Camera
