ZWO 36 mm H-alpha SII OIII 7nm Filter Set

SKU : ZWO-NBSET7-36MM

- Read
  • Free Shipping

  • In Stock

Add to Wishlist

Got questions? Click for live chat

  • Observe increased contrast between nebula and the night sky, without brightening the nebula.
  • Each polished to reach an accurate one-fourth wave.
  • Multi-layered anti-reflection coatings.

Product Details

  • The ZWO 36 mm H-alpha SII OIII 7nm Filter Set allows only Hydrogen, Oxygen, and Sulfur emissions to be photographed. These filters will enhance contrast for these wavelengths and block most wavelengths produced by city lights. Narrowband filters will reduce the transmission of most wavelengths and only allow certain ones narrow bands to pass.

    Technical Data of the ZWO 36 mm Filter Set

    • FWHM: 7±0.5nm.
    • Glass Thickness 2.0+/-0.03 mm  (1.25 inches/ 31 mm/ 36 mm).
    • Fine-optically polished to ensure accurate 1/4 wavefront over the both surfaces.
    • About 90% transmission at H-alpha line 656 nm (H-Alpha filter).
    • About 90% transmission at SII line 672 nm (SII filter).
    • About 90% transmission at major OIII line 500nm (OIII filter).
    • Infrared wavelength 700-1100 nm cut-off.
    • <0.1% transmission of off-band, OD3 (Optical Density).

    Transmission Curve

    Transmission Curve Graph
  • specifications

    Bandpass7nm
    Filter Thickness1.9 mm
    Filter TypeH Alpha
    Filter TypeOIII
    Filter TypeSII
    Free ShippingYes
    ShapeRound
    Size36mm

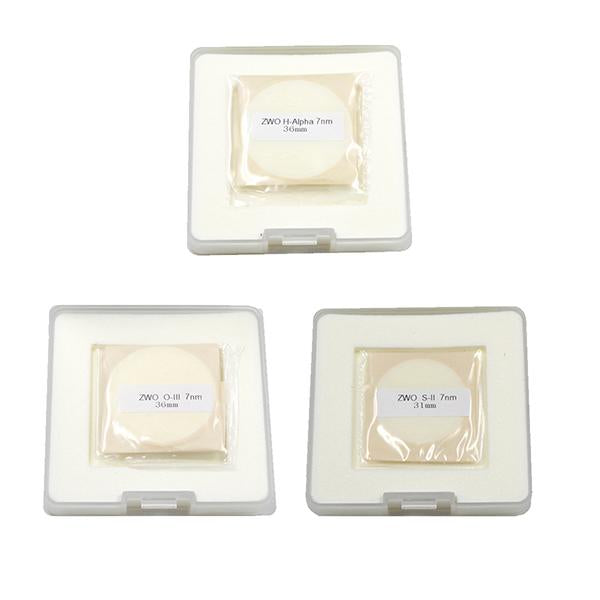

  • included items

    • H-Alpha filter.
    • SII Filter.
    • OIII Filter.
    • Case x3.
