ZWO 2-Inch Mounted Filter Drawer - M54

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

• The ZWO 2-inch Mounted Filter Drawer (M54 thread), with 20 mm ring design, is specifically made to match with ZWO ASI6200MM and MC Pro cameras.

  Technical information::

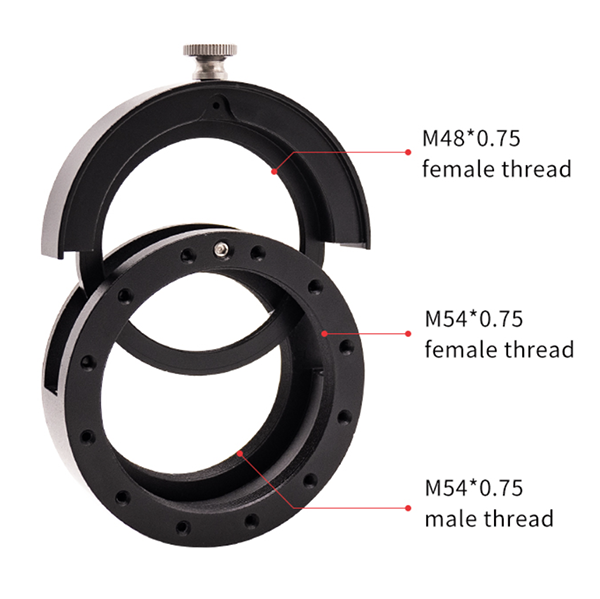

  • M54 * 0.75" female thread on telescope back.
  • M48 * 0.75" female thread in drawer for 2-inch filter.
  • M54 * 0.75" male thread for ASI6200 camera front.
  • 70 mm H x 70 mm L x 20 mm W.
  • Manufacturer's note：This solution can only reach 56 mm back focus length. Also the M48-M42 adapter will block the camera sensor a little bit, so we recommend you use the 2-inch EFW with M68 OAG.

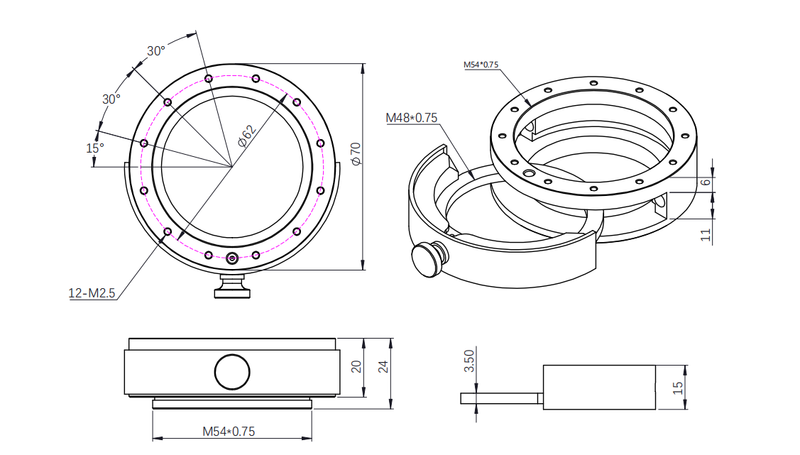

  • Click on the Gallery thumbnail to view mechanical drawing.





  There are double strong magnets to create a stronger adsorption hold, easier installation, and easier drawer removal.

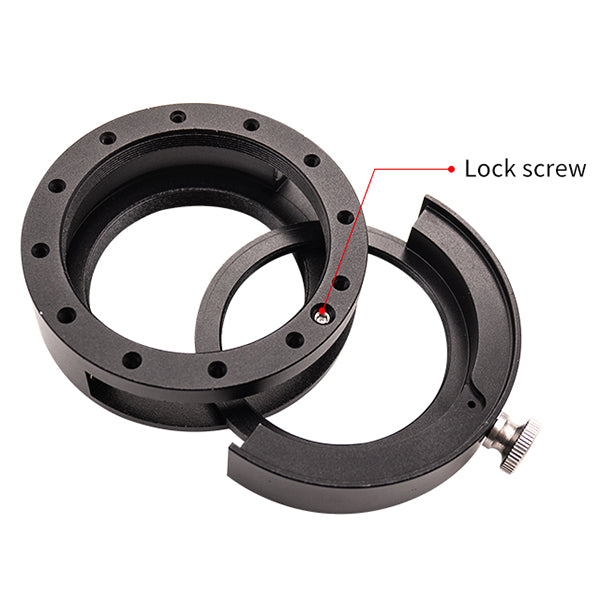

  There is a lock-screw on the side of the M54 filter Drawer. The locking function is helpful on adjusting the tension to eliminate the gap for double insurance during use.

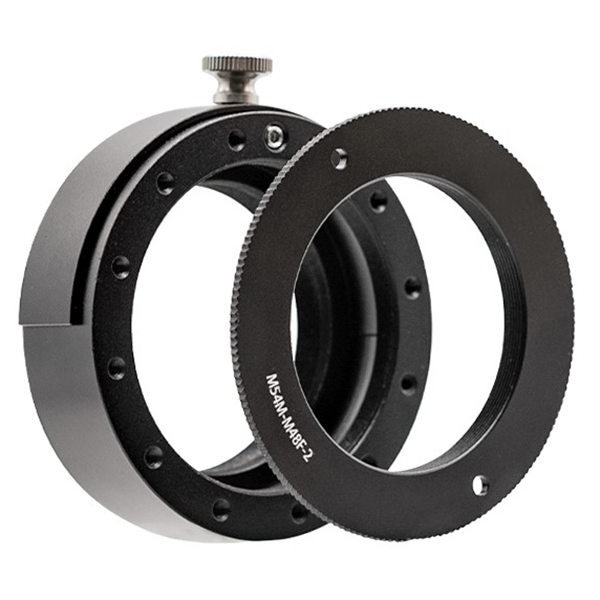

  Also included: AM54-M48-2 adapter with this M54 Filter Drawer, so you can use the drawer with your camera or your telescope.

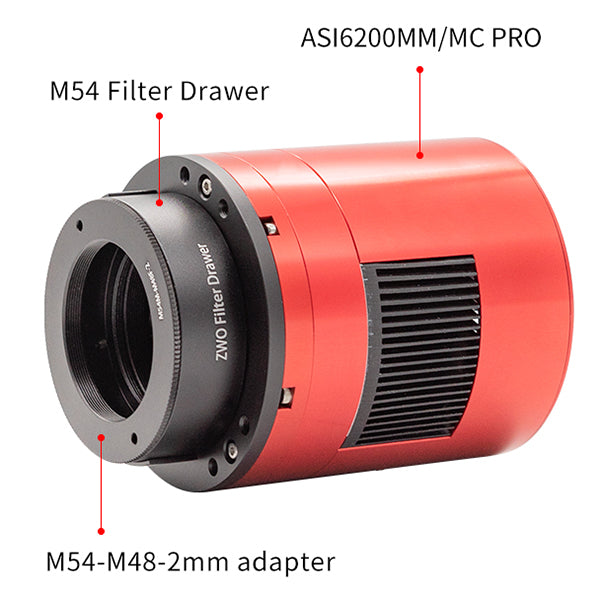

  The ASI6200 camera 55 mm backfocus solution

  Manufacturer's Note：This solution can only reach 56 mm back focus length. If you want 55 mm back focus length. Also the M48-M42 adapter will block the camera sensor a little bit. So we recommend you use the 2-inch EFW with M68 OAG.



• specifications

  Back Focus	20 mm
  Camera/Eyepiece Side Connection	Male M54x0.75
  Filter Connection	Female M48x0.75
  Scope Side Connection	Female M54x.75

• included items

  • ZWO 2-Inch Mounted Filter Drawer - M54
