William Optics iOptron Skyguider Pro Dec Adapter & Vixen Style Clamp

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

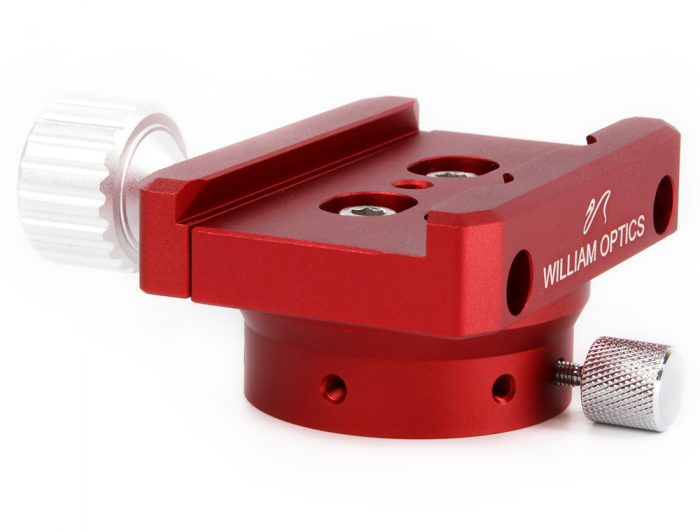

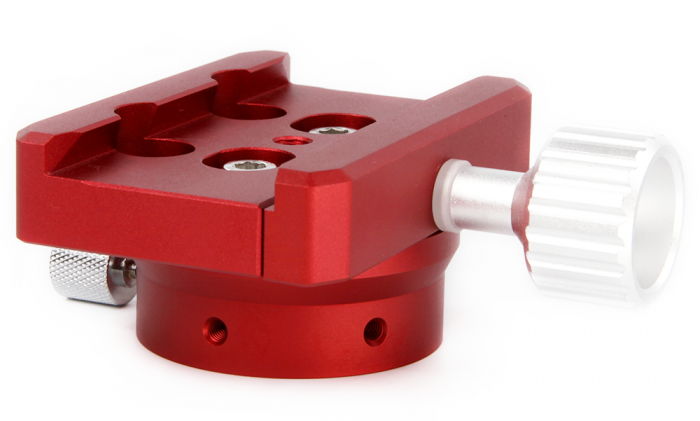

• William Optics iOptron Skyguider Pro Dec Adapter

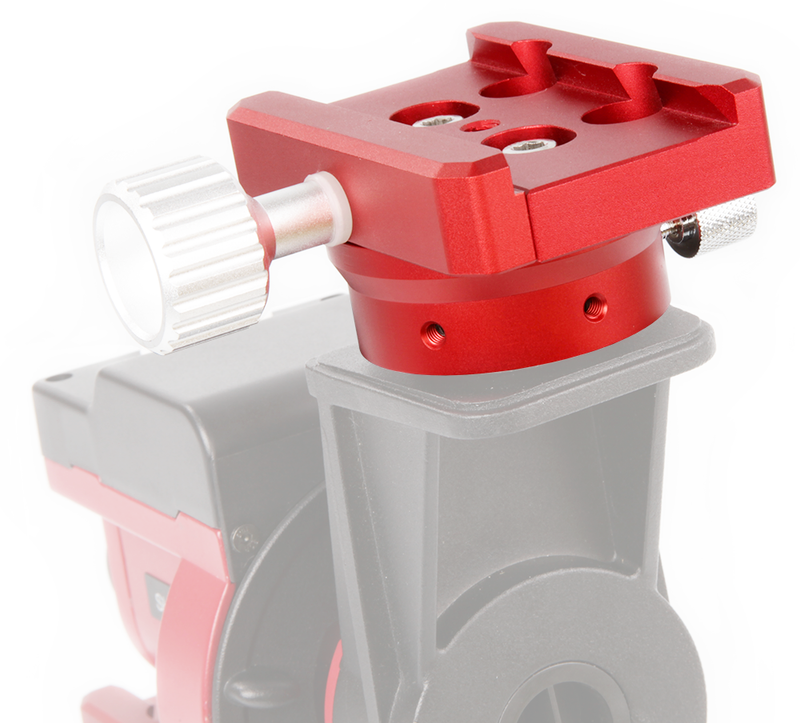

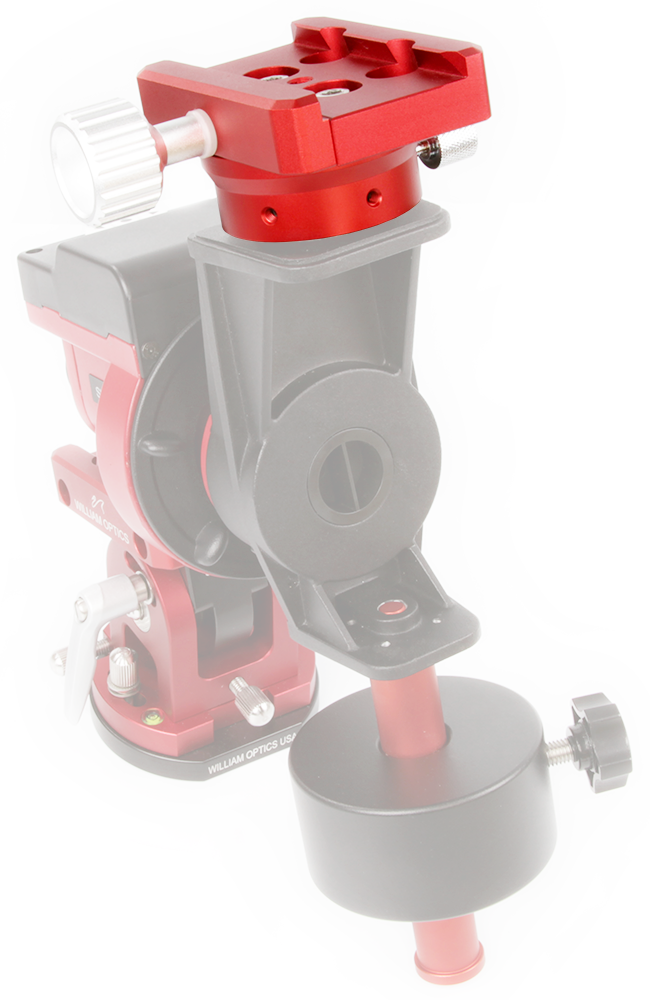

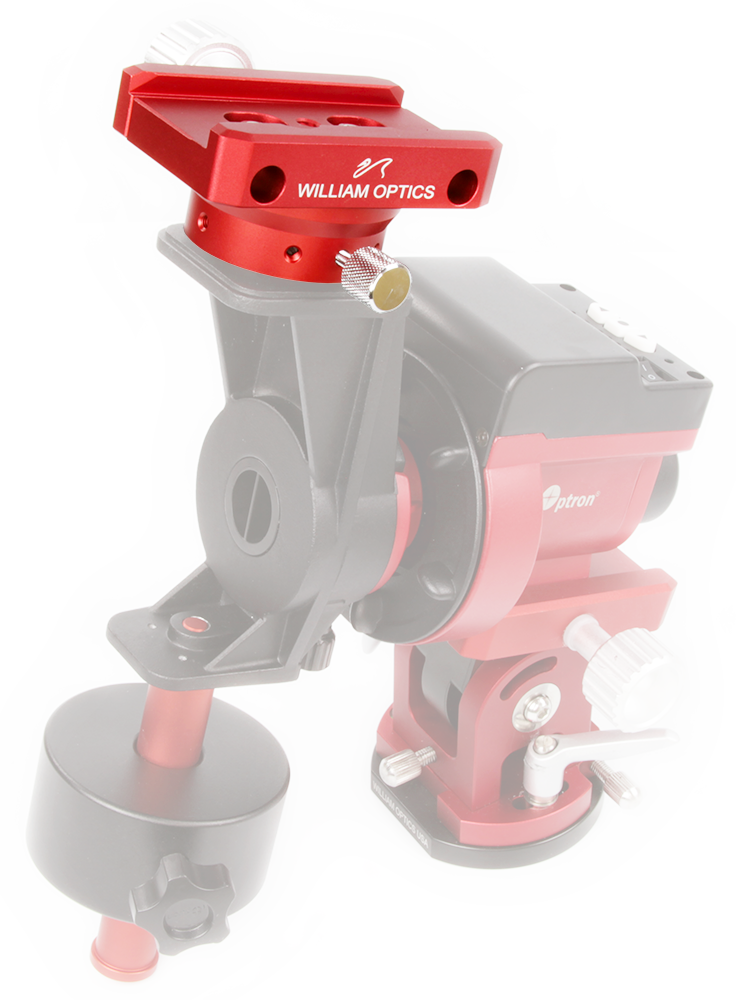

  This iOptron Skyguider Pro dec adapter from William Optics is a great tool that will give two functions. First, and foremost, the adapter will allow users to attach a Vixen style saddle onto their iOptron Skyguider Pro mount.

  As a bonus, this adapter can act as a riser block. It will raise the dovetail up just a bit and make it easier to focus longer refractors.

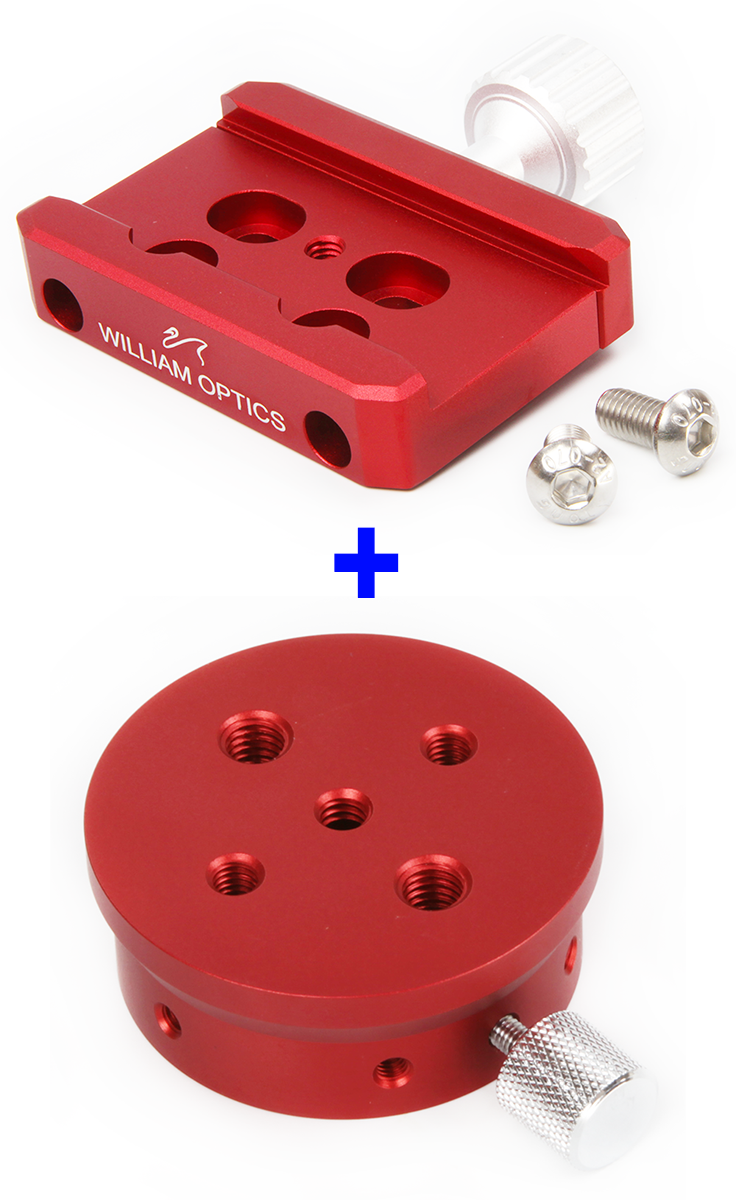

  The iOptron Skyguider Pro dec adapter from William Optics lets you attach a Vixen style saddle to the Skyguider Pro, making it possible to mount a small telescope with a Vixen style mounting rail. The saddle (shown in the 3rd photo, but sold separately) attaches to the adapter through a pair of M6 and M8 mouting holes or a 1/4"-20 hole in the middle.

  William Optics Vixen Style Clamp

  This William Optics Vixen Style saddle clamp is designed to accept Vixen-style dovetails. It includes an oversized aluminum lock knob for easy gripping, even with gloves on!

  William Optics Vixen Style saddle clamp Features

  • Length: 90 mm
  • Width: 63 mm
  • Central Depth: 12.5 mm
  • Outer Edge Depth: 18.5 mm
  • Mounting Holes: Four M8 and two 1/4-20
  • Weight: 8.1 ounces

• specifications

  Warranty

  2 Year Warranty

• included items

  • William Optics iOptron Skyguider Pro Dec adapter
  • William Optics SP90 Saddle Plate for Vixen Dovetails - 90 mm - Red
  • Type - V-Series (Vixen)
  • Saddle Length - 3.5"
  • Pro Dec Adapter weight - 140g
