TPO Dovetail Mount Adapter - Vixen Style

  • Sale
  • $33.96
  • Regular price $39.95
  • ITEM #
    OS-DM


18

Features

TPO Dovetail Mount Adapter - Vixen Style

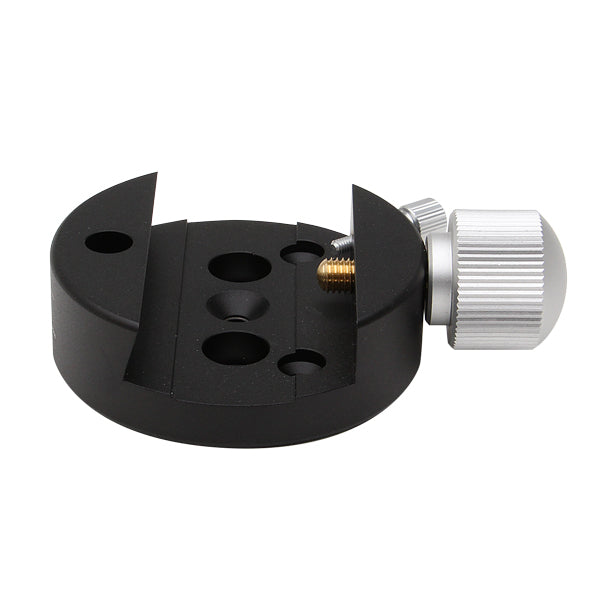

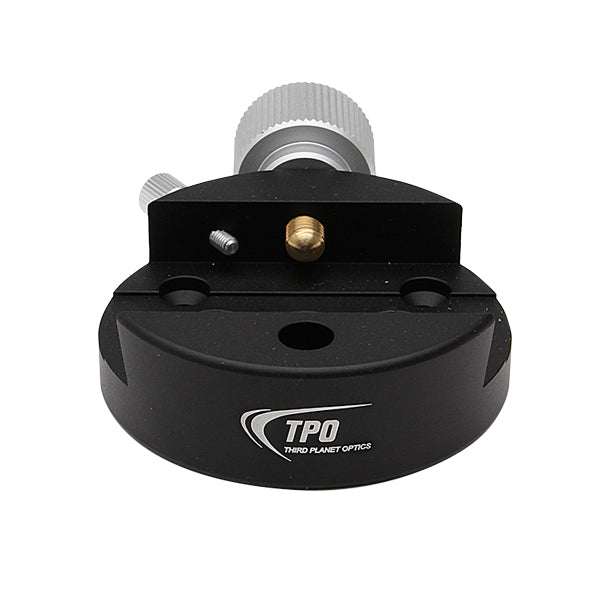

The TPO Vixen Style Dovetail Mount Adapter works with a Vixen-style dovetail plate and attaches to camera tripods and other mounts with ease. Now you can just slide your equipment home in the precision machined adapter, lock it down with the generous knurled knob and captive screw, and you're ready to photograph or observe!



TPO Product Number: DM

Additional Information

Accessory TypeAdapters & Accessories
Adapter TypeDovetail/Vixen Style
Free ShippingYes
ManufacturerTPO
Warranty1 Year Warranty

Questions & Answers

Ask a Question
  • Does this screw on to a 1/4-20 screw for mounting or have mounting holes in it base?

    The center hole is tapped for a 1/4"-20 screw and the other two holes will accept 2 conical flat head screws (either 6mm or 1/4"-20) from above to attach this to tapped holes 35mm apart front to back (like some of the AstroTrac parts).

  • Does this screw on to a 1/4-20 screw for mounting or have mounting holes in it base?

    The OS-DM has a 1/4-20 screw for mounting.

  • Does it have holes? How does it attach? Can't conceive how it attaches with your photo.

    The OS-DM has a tapped 1/4"-20 hole in the center for attachment to a camera tripod or dovetail and two countersunk holes (for conical flat-head screws) 35mm apart front-to-back (each 17.5mm ahead or behind the central 1/4"-20 tapped hole) that can accept

  • Will the Celestron 6" OTA fit in this device?

    Hello Tom, Thank you for your question. As long as the 6" has a v-series dovetail plate on the bottom, it will indeed fit.

  • Will this fit my Konus Motormax 130 Maksutov-Cassegrain telescope?

    This item will not fit the Konus telescopes

  • What are the dimensions of this panel?

    The dimensions of the panel are 12-3/8" x 12-3/8" x 0.75" thick.

  • What is the gross weight of the panels?

    The panel weight is 3 lbs including the power cable.

  • What are the measurements of this dove tail plate. I am thinking of purchasing same to modify an old Orion Astroview mount head that did not have the dove tail plate, only a top head that you screw the OTA rings too.

    The OS-DM has a tapped 1/4"-20 hole in the center and 120 degrees apart at a radius of 1.08" (27.5mm). It also has larger M8/ 3/8"-16 pass through holes front to back with a 35mm spacing. The adapter is a round "puck" 80mm in diameter, and the main knob

  • The dovetail on my telescope is about 43mm wide, will it fit this adapter?

    Yes, this dovetail adapter will fit your 43mm wide dovetail.

  • The Q&A states this dovetail adapter works with 6mm small Tahahashi mounts in one answer a 8mm regular Tahahashi mounts in another. Which is it? I need 8mm to work with my EM-10.

    The OS-DM will work with both 6mm and 8mm bolts at 35mm spacing. This will have no issues attaching to an EM-10.
