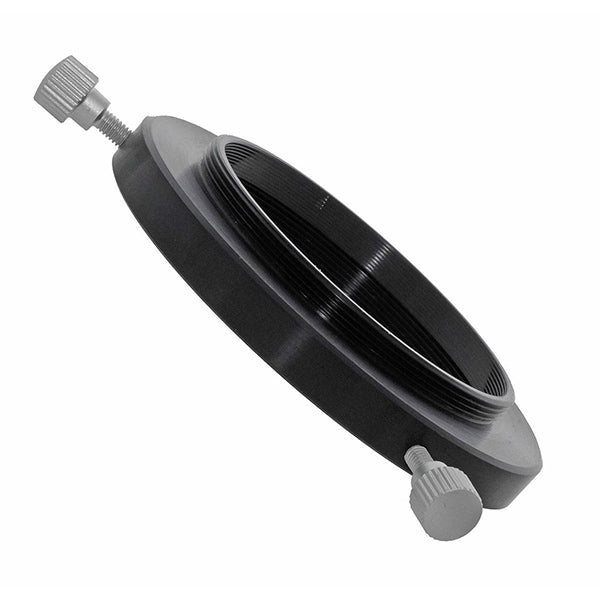

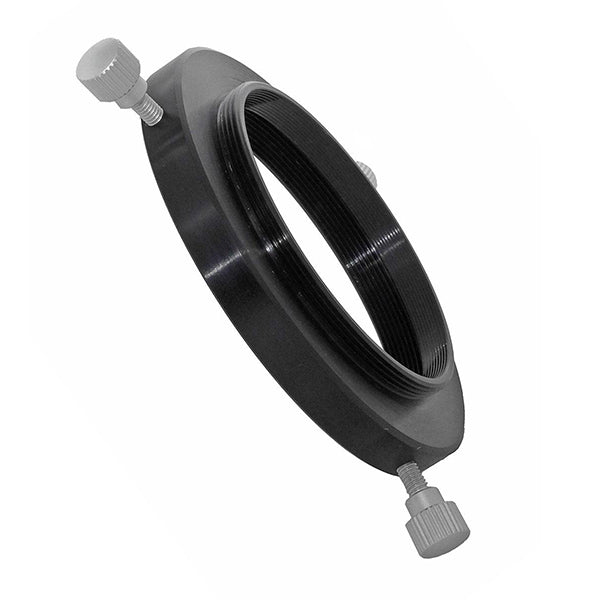

• A 360 ° rotation and quick coupling - M68x1 - short construction adapter.

  This M68 adapter is a real problem solver from Teleskop-Service for all astrophotographers who work with the professional M68x1 thread system. With the shortest overall length (only 10.5 mm), the adapter offers a quick coupling and 360 ° rotation. Non-slip knurled screws also allow operation with gloves.

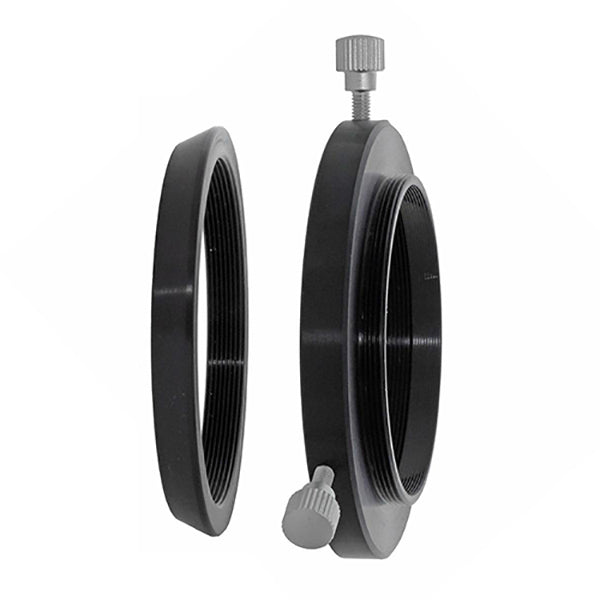

  The rotation adapter consists of 2 parts:

  Part 1: The inner, tapered adapter creates the connection to the telescope. Part 2: The outer adapter holds the connection adapter with three screws and connects to the camera.

  The advantages of the TSM68ROT adapter:

  • Only 10.5 mm optically effective overall length - ideal for short-term adaptations.
  • Perfect centering - the inner adapter ring is always exactly in the middle - due to the clamping, it tightens itself.
  • Thanks to a generous wall thicknesses and long threads, even heavy accessories can be safely installed.

  Where to use the TSM68ROT adapter:

  • Quick coupling: You can remove the camera within seconds. Unscrewing is prevented so the cables do not get tangled.
  • 360 ° rotation: You can rotate the camera up to 360 ° to achieve optimal positioning of the target object onto the camera sensor.
  • Improved guide star search with off-axis guider: If you screw the TSROTM68 in front of the off-axis guider, you can rotate the guider and thus have a larger field for finding a bright guide star.

  Technical Specifications of the TSROTM68:

  • Connection thread telescope side : M68x1 internal thread - length 8 mm.
  • Connection thread camera side : M68x1 external thread - length 5 mm.
  • Visually effective overall length : 10.5 mm (without the M68x1 external thread).

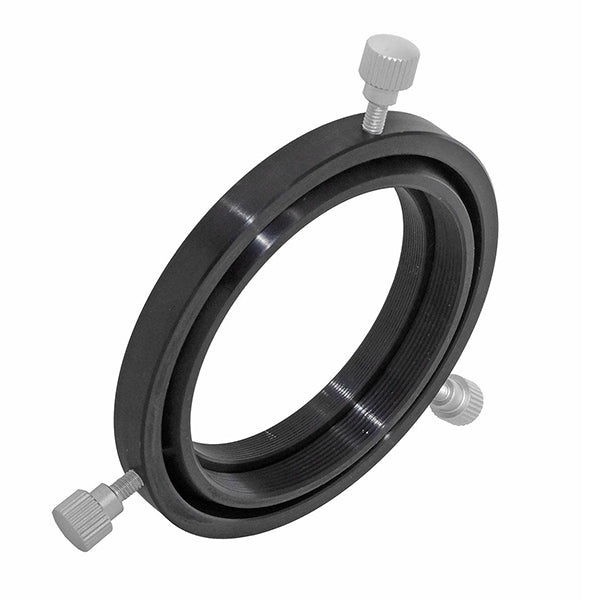

  • Clamping : Fixing the adapter position with 3x M4 knurled screws.



• specifications

  Back Focus	10.5 mm
  Camera/Eyepiece Side Connection	Female M68x1
  Length	10.5 mm
  Scope Side Connection	Female M68x1

• included items

  • A useful adapter for M68x1 thread, 360 ° rotation, quick coupling with maximum fit, and short overall length.
  • Visually effective overall length : 10.5 mm (without the M68x1 external thread).
  • Connection thread telescope side: M68x1 internal thread - length 8 mm.
  • Connection thread camera side: M68x1 external thread - length 5 mm.
  • You can remove the camera within seconds without the hassle of screwing.
  • Position the a nebula or galaxy on the camera sensor by simply turning the adapter.
