Tele Vue NP 127 FLI f/5.4 Petzval Refracting Telescope

Product Details

• Description
• Specifications
• Recommended Products
• Reviews

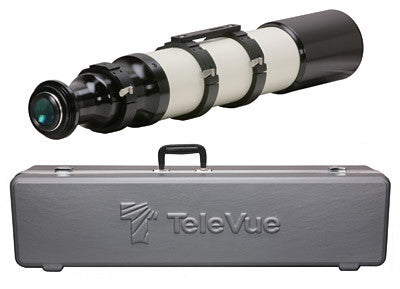

• Tele Vue NP127fli 5" Imaging Refractor

  The Televue NP127fli is a 5 inch apochromatic refractor designed specifically for imaging with a FLI Proline Camera, Atlas Focuser & Centerline filter wheel. A combination of an ultra flat field of view, short focal length resulting in a fast f/ 5.3 design pairs flawlessly with the FLI PL16803 camera but will work with perfection with any FLI Proline camera of your choosing.

  Weighing in under 16 pounds the NP127 is a highly portable precision imaging telescope. Special placement of the built in Large Field Corrector sits inside of the FLI Atlas focuser putting it in a prime position for use with this particular equipment combination and your choice of FLI Proline CCD camera. All connections are acheived with FLI's Zero Tilt Adapter system and Tele Vue's proprietary image tilt corrector is built into this specifically designed refractor allowing for precision adjustment of the imaging plane bringing out the absolute best. While every NP127fli is adjusted for perfection prior to shipment, adjustments are easily made should they be necessary.

  *Please note that all FLI equipment noted above is sold separately.



• specifications

  Aperture	127 mm (5")
  Camera/Eyepiece Connection	Male FLI Atlas Dovetail
  Corrected Image Circle	52mm
  Dawes Limit	0.91 arcseconds
  Focal Length	680 mm
  Focal Ratio	f/5.4
  Free Shipping	Yes
  Highest Magnification	254x
  Light Gathering Power	329x
  Limiting Magnitude	14.3
  Optical Design	Petzval
  Tube Diameter	127mm
  Tube Length	914mm
  Tube Weight	15.8 lbs
  Back Focus	49mm
