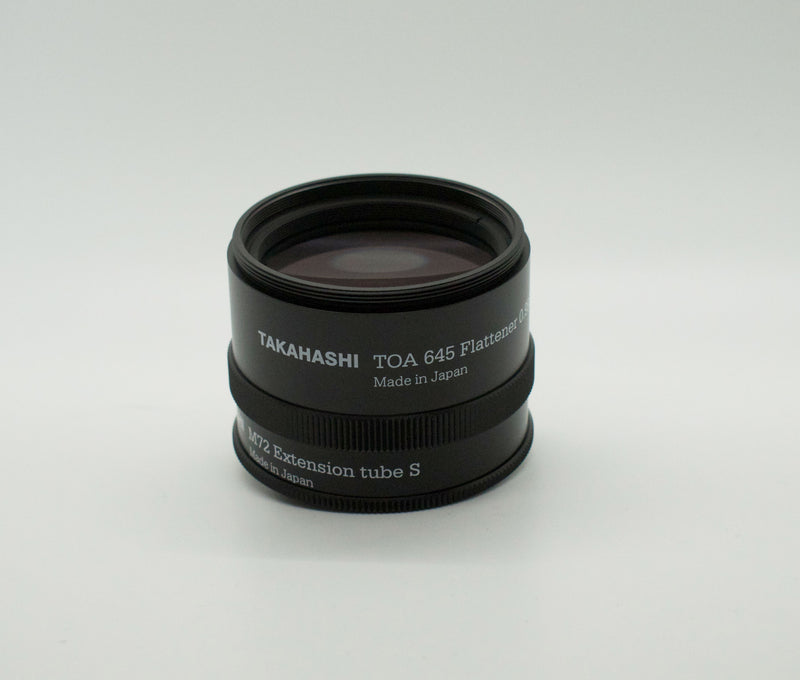

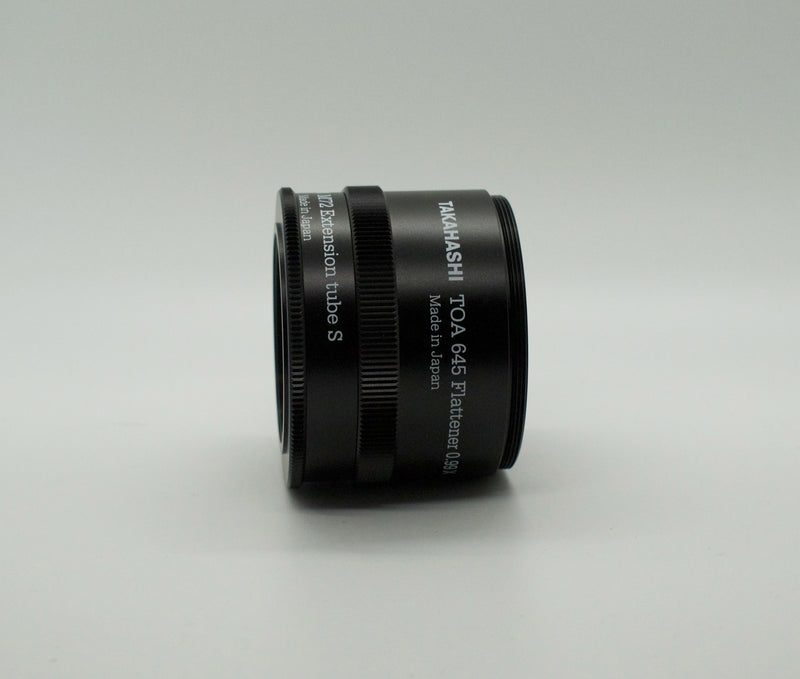

Takahashi TOA 645 Flattener 0.99X for TOA150B

SKU : TK-TKA32587S

- Read
Add to Wishlist

Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • Features two fully multi-coated lens elements in two groups and provides outstanding correction out to a 60 mm image circle
  • At a 30 mm diameter image circle, the RMS spot diameter is 2 microns, and at 43 mm it is 3 microns. Even out to the full diameter of 60 mm, the RMS spot diameter is 5 microns
  • For the TOA-150 with the included adapter ring (S), the flattener has a male M72 facing the telescope and a female M54 facing the camera

Product Details

  • The newly-designed 645 flattener features two fully multi-coated lens elements in two groups and provides outstanding correction out to a 60 mm image circle. Being designed specifically for the TOA-130N and TOA-150B, RMS spot diameters of 1 micron on-axis are achieved. At a 30 mm diameter image circle, the RMS spot diameter is 2 microns, and at 43 mm it is 3 microns. Even out to the full diameter of 60 mm, the RMS spot diameter is 5 microns. With these spot sizes, images are nearly aberration on even the newest small pixel sensors.

    For the TOA-150 with the included adapter ring (S), the flattener has a male M72 facing the telescope and a female M54 facing the camera. The metal back distance from the M54 thread is 56.2 mm. If you remove the adapter ring (S), the camera can interface with a female M72 thread with a metal back distance of 73.9 mm.

  • included items

    • Takahashi TOA 645 Flattener 0.99X for TOA150B
    • Adapter ring
