    Features

    Takahashi TOA-150B Double ED Triplet Refractor Telescope - Heavy-Duty 4" Focuser

    Takahashi TOA-150B - 5.9" f/7.33 Ortho-Apochromat Triplet Refractor Telescope

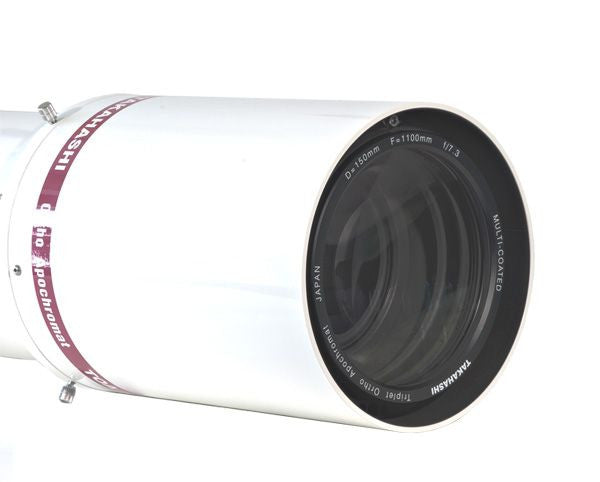

    The Takahashi TOA-150B employs a newly designed triplet using special elements to produce the highest order of color correction. Orthoscopic means perfected visually and Apochromatic means you're free from those strange violet glows which often accompany bright stars or planets. Thanks to the ingenious design of layering an FPL-53 Extra-low Dispersion glass element between two extreme quality crown and flint elements - perfection ensues. And what's more, it's air spaced, so there's no oil between the elements to leak or become opaque with age. The lens cells are durably constructed to withstand transport - yet are fully able to be collimated should the owner wish to make adjustments. With 1/12th wave accuracy and an airy-disc Strehl ratio of 0.992, the optics on the Takahashi TOA-150B Ortho-APO are as near to perfection as you can get!

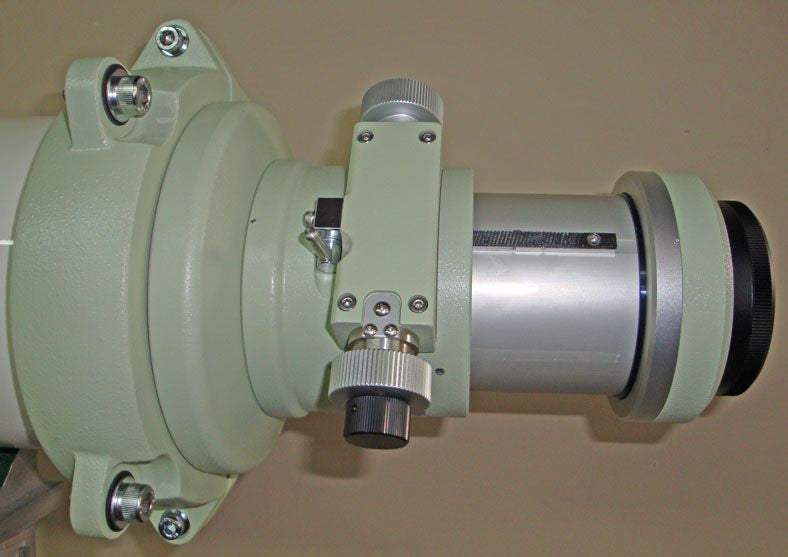

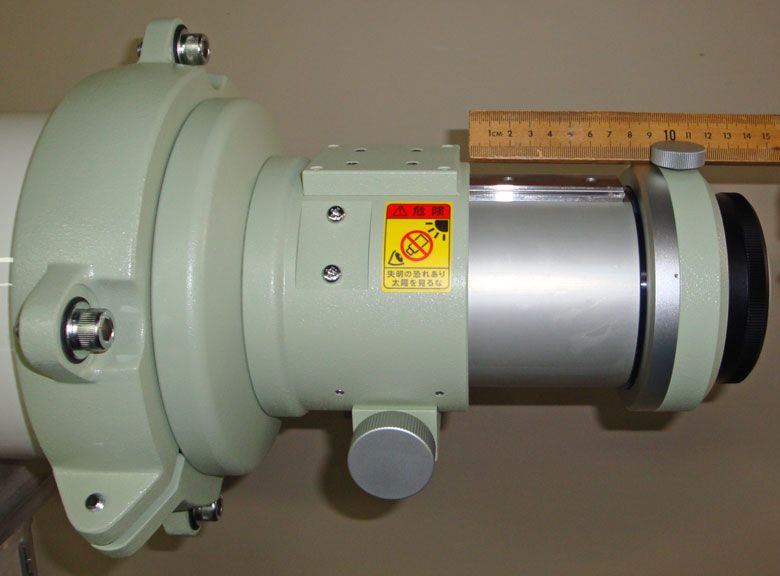

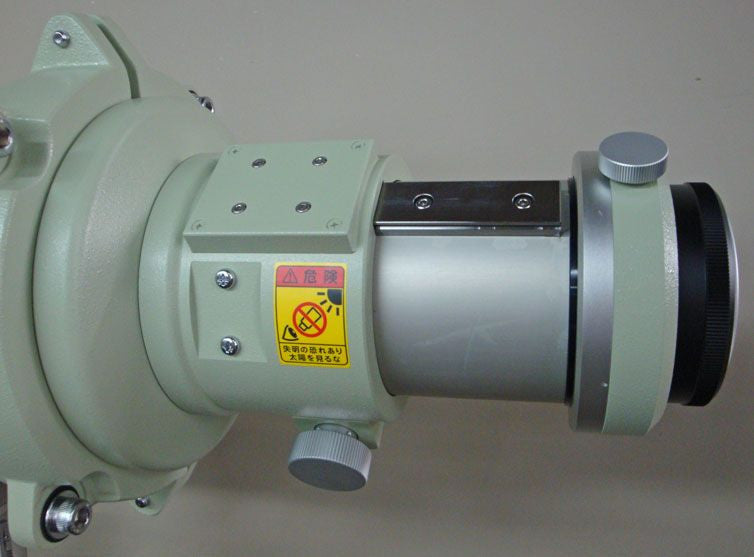

    The Takahashi TOA-150B Ortho-APO is a dream come true for those who want to use a medium format camera. It includes a newly designed 4" focuser that uses a long stroke linear bearing designed to handle heavy instrument packages with ease. LIke the FSQ-106ED, the focuser on the TOA-150B uses a trigger lock focus lock and has a new pinion assembly. A camera angle adjuster is included, and enables the observer or astrophotographer to turn the ocular or camera 360 degrees to better view or frame an object to be photographed. The 4" focuser, coupled with the optional dedicated flattener, will produce a fully usable 90mm diameter image circle. But that's not all. The focuser itself offers a generous 225mm of backfocus to allow the use of additional accessories, like adding on color filter wheels, etc. What's more, the focuser itself offers "no slip" stability with dual knobs for ease of use, 10:1 Micro Edge Focuser and 2" threaded eyepiece/accessory holder with 1.25" compression ring eyepiece holder also supplied.

    The Takahashi TOA-150B Refractor is perfect for visual, CCD and classic astrophotography. The f/7.3 focal ratio with a 1100mm focal length is long enough for high magnification observations of the Moon and attaching the optional Extender TOA converts the TOA-150 APO into a f/11.68 planetary instrument capable of very high magnification. You'll get images which display.the high order of color correction of the Ortho-Apochromat Series without saturated color and, thanks to the numerous knife-edged baffles, it displays amazing contrast - all packaged in a short, 38" tube with the dew preventive lens shade retracted that weighs just under 43 pounds. It even has an optional convenient handle at the rear - located just before the focuser - which will allow for an easy grip for carrying and setting up the optical tube.

    Takahashi quality... Through and through!

    Takahashi Product Number: TSA0150

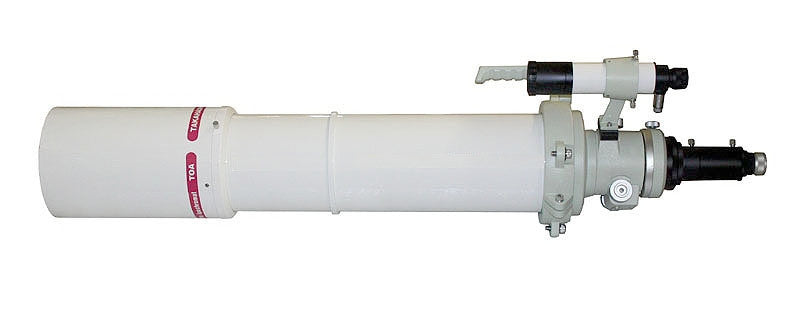

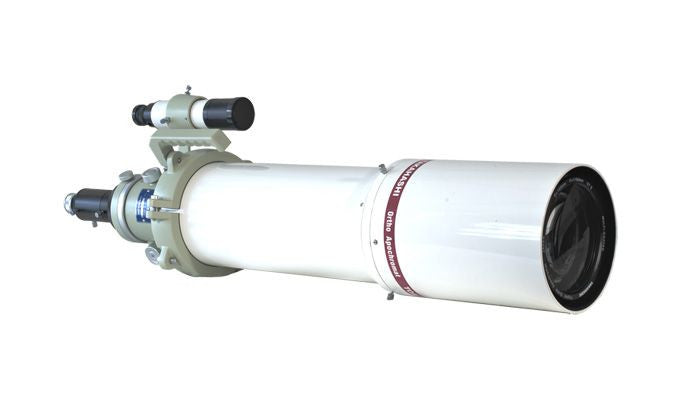

    Photo shows a Takahashi TOA-150B OTA with optional viewfinder, bracket, and handle.

    Important Note: Takahashi America requires that their telescope optical tube assemblies be shipped via 2nd Day Air or faster in order for the full warranty to be in force. Please make sure you choose the appropriate shipping method in your shopping cart or, if you speak to an OPT associate, request 2nd Day Air or faster. If you are purchasing a telescope and mount package or any accessories to accompany an OTA, please contact OPT for a shipping quote, since only the OTA is required to ship second day air but all other products can be shipped separately via any other available shipping method. Thank you!

    Additional Information

    Aperture150 MM (5.9")
    Back Distance275.0mm
    ConditionNew
    CounterweightsNone
    Dew Shield IncludedYes
    Diagonal Included Sold Separately
    Exterior ColorGloss White
    Focal Ratio f/8.0
    Free ShippingYes
    GPS includedNo
    Hand Controller includedNo
    Highest Useful Magnification479x
    Image Circle 1.6x = 1.3 degrees
    Limiting Stellar Magnitude13.4
    ManufacturerTakahashi
    Mount Type OTA Only
    Optical CoatingsCoated
    Optical Design Apochromatic
    OTA Length990mm
    OTA Outer Diameter179mm
    OTA Weight20kg
    Power Adapter Included Does Not Require Power
    Telescope SeriesTakahashi TOA
    Tripod Type Included Sold Separately
    Warranty5 Year Warranty

    Customer Reviews

    No reviews yet Write a review

    Questions & Answers

    Ask a Question
    • What is the weight of the TOA 150 with the equipment described in the offering?

      With the balance weight ring toward the rear of the scope, the weight of the TOA-150B is 43 lbs. Without the weight ring, the tube weight is 33 lbs. Rings, finders, and any other visual or photographic accessories would add to these weights.

    • Can this T-Ring work with Olympus E-500?

      Unfortunately, no. This T-ring is only for the older Olympus OM-1 film cameras. The manufacturer we get these t-rings from does not currently make a ring for the E-series cameras.

    • How many inches?

      Hello Gabriela, This telescope has an aperture of 76mm. Therefore, it is 3 inches in diameter.

    • Is this module added to the etalon already in the LS80THa, or does it replace it?

      This etalon is added between the original etalon and the focuser on the LS80THa. You will then have separate pressure tuning control for each etalon.
