Takahashi FOA-60Q f/8.8 Doublet Refractor OTA Telescope with 1.7x Extender

Product Details

• Description
• Specifications
• Recommended Products
• Reviews

• TAKAHASHI FOA-60Q ORTHO APOCHROMATIC REFRACTOR with a 1.7x EXTENDER:

  The FOA-60Q is a new compact apochromatic fluorite doublet refractor from Takahashi.  The base telescope features a 60 mm aperture and a 530 mm focal length.  It has a 1.7x extender, which increases the focal length to 901 mm.

  The spacing of the doublet elements is such that the correction of the spherical aberrations is similar to that found in the much larger TOA series.  This innovative design results in a Strehl ratio in excess of 96-percent for the base unit and over 99-percent with the extender.



  • Compact design for relatively long focal length, making it ideal for transport
  • Outstanding visual and photographic performance, providing a 44 mm diameter image circle for full frame imaging
  • Available with a 0.93x flattener

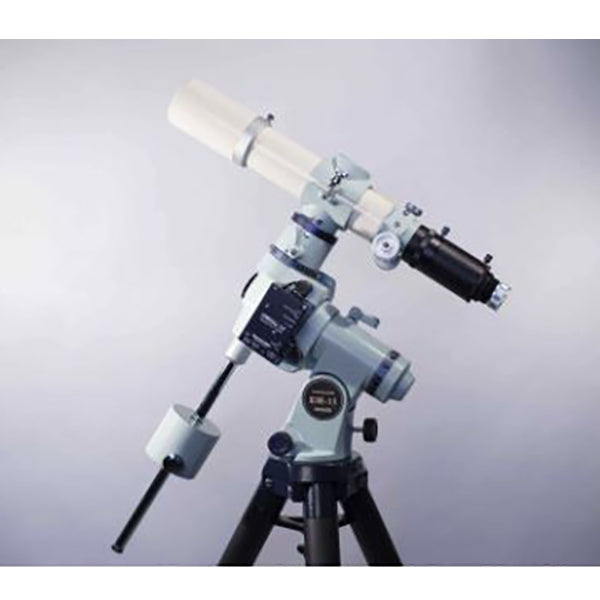

  Image Note:  FOA-60 OTA (without the 1.7x Extender -Q) Shown in use.  Mount, tripod, tube holder, and finder shown for use only and are not included.



• specifications

  Aperture	60 mm (2.25")
  Back Focus	208.1mm
  Camera/Eyepiece Connection	1.25" Nosepiece
  Dawes Limit	1.93 arcseconds
  Focal Length	900 mm
  Focal Ratio	f/15
  Glass Type	Florite
  Highest Magnification	120x
  Light Gathering Power	73x
  Limiting Magnitude	12.6
  Optical Design	Doublet Refractor
  Tube Diameter	68mm
  Tube Length	510mm
  Tube Weight	4 lbs
  Warranty	5 Year Warranty
