Starlight Xpress Trius Pro 834 Cooled Monochrome CCD Camera - Blue Edition

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

• The TRIUS Pro 834 Monochrome Camera -Blue Edition - is part of the SONY ICX 1-inch format sensor series just like the TRIUS PRO 694 and 814. This camera has 12 million pixels with each of them being a 3.1-micron square which perfectly suits these to short focal length optics like refractors, with the ideal length being between 300 to 600 mm. With read-noise figures better than many CMOS cameras, along with high QE (Quantum Efficiency), delta cooling of approx. -45°C, 16bit data, and solid full-well depth figures, this is a great addition to wide field deep-sky imaging setups.

  Versatile Camera Body

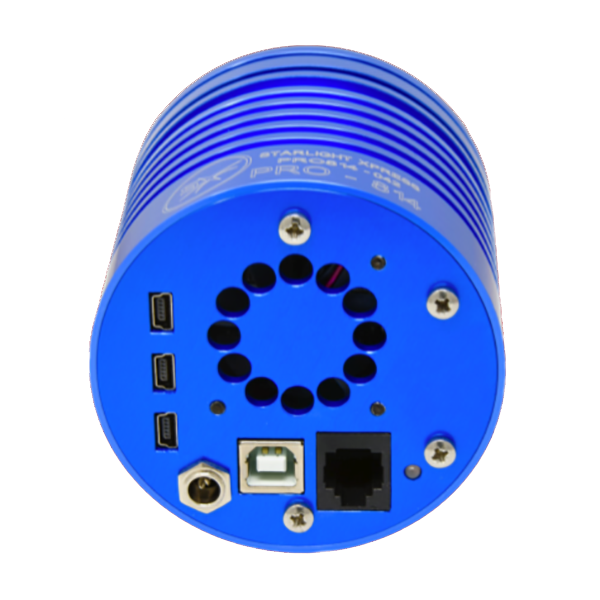

  All Trius Cameras have incorporated a USB hub into the main camera, which offers 3 x USB 2.0 ports at the rear of the camera. Each port is capable of delivering up to 200 mA and is able to drive a Lodestar, or UltraStar for guiding and another two USB ports for our USB filter wheels, etc. This integration greatly reduces the number of cable trails back to the computer and gives less potential cable tangling around the mount during your imaging session.





  Low Temp Cooling Systems

  The TRIUS Pro Camera Series reach anywhere between -40 and -50 degrees C of cooling, ensuring that your noise levels stay extremely low. Combined with this, each camera is designed with Argon-filled sensor chambers to further optimize this process.



  The Trius Pro Blue Edition family.

• specifications

  ADC	16 bit
  Color or Mono	Monochrome
  Cooled	Cooled
  Delta T	45C
  Full Well	8ke
  Mega Pixels	12 mp
  Peak QE	78%
  Pixel Array	4240 x 2824
  Pixel Size	3.1 microns
  Read Noise	3e
  Sensor Diagonal	15.8mm
  Sensor Type	CCD
  Sensor	Sony ICX834
  Weight	1 lbs

• included items

  • This is a TRIUS Pro 834 Monochrome Camera -Blue Edition.
  • Sensor:  CCD Sony ICX834; 12 MP; 16bit; 3.1 microns-square pixels; an 4240 x 2824 pixel array; and a Sensor Diagonal of 15.8 mm.

  • Read Noise:  3e-.
  • Peak QE:  78%.

  • Full Well:  8ke-.

  • Cools to minus 45-degrees Celsius below ambient temperature.
  • Best used as a deep-sky imaging camera.
