Starlight Instruments Electronic Focusing System with HSM20 Motor

Product Details

• Description
• Included Items
• Recommended Products
• Reviews

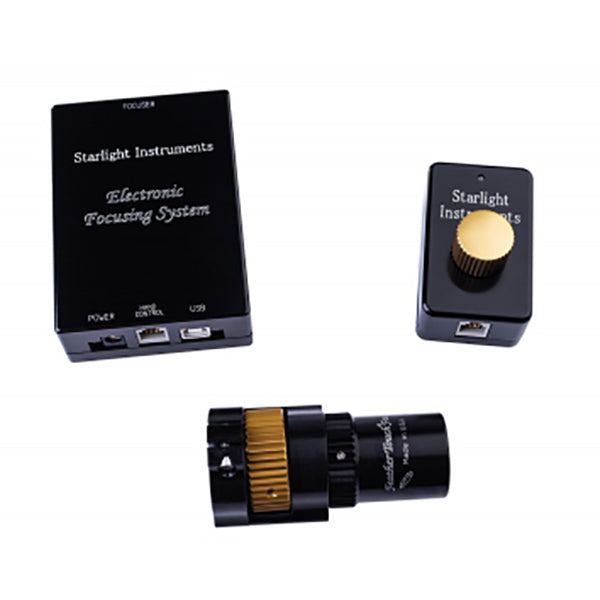

• Compact Starlight Instruments Electronic Focusing System (EFS) with HSM20 motor, control box, and hand controller works with any ASCOM compliant software.

  Control box is 4.13-inches (105 mm) long, 2.87-inches (73 mm) wide and 1.1-inches (28 mm) thick.

  Hand controller has an innovative feature in that you can change the number of steps the focuser moves with 1 step, 10 step, or 100 step increments. This is done by pressing the knob on the hand controller. Each step speed has an LED light mode, RED 1 step, Amber 10 step, 100 Green step. It is connected to the EFS control hub via RJ11 cable.

  The EFS system draws a maximum 1 amp of power at 12V

  The EFS can be controlled by standard USB cable

  HSM20 Stepper Motor

  This "Handy" stepper motor unit works exclusively on the Focuser Boss II electronic focuser. The design of this motor housing allows you to still be able to manually turn the focus knob on the focuser by simply turning the over-ride knob on the motor housing. This motor has a built-in temperature thermistor for temperature control through the SI-EFS and the Focuser Boss II digital system. Here are the various motor choices:

  • The HSM20 has 19,450 steps per inch and the HSM30/35 has 24,300 steps per inch.
  • This HSM20 motor unit fits the 2.0-inch FeatherTouch focusers, MPA Retrofits (Takahashi and Tele Vue), and Micro FeatherTouch Telescope Focusers for the SCT scopes.
  • The HSM30 motor unit fits the 2.0-inch, 2.5-inch, and 3.0-inch FeatherTouch Rack/Pinion focusers, along with the 2.7-inch Astro Physics focuser with the FeatherTouch Upgrade.
  • The HSM35 motor unit fits the 3.5-inch FeatherTouch Rack/Pinion focuser and the 4.0-inch Astro Physics focuser with the FeatherTouch Upgrade.
  • The Tak option will fit any Takahashi 4-inch stock focuser.

  The motor connects to the EFS control hub via Ethernet cable.

  Starlight Inst Electronic Focusing System -with HSM20 Motor-INCLUDED.

  All cables are supplied with the EFS



• included items

  • Electronic Focusing System compatible with all ASCOM compliant software
  • Includes focusing hub, hand controller, and HSM20 stepper motor
  • 1, 10, and 100 step control.
  • All required cables included.
