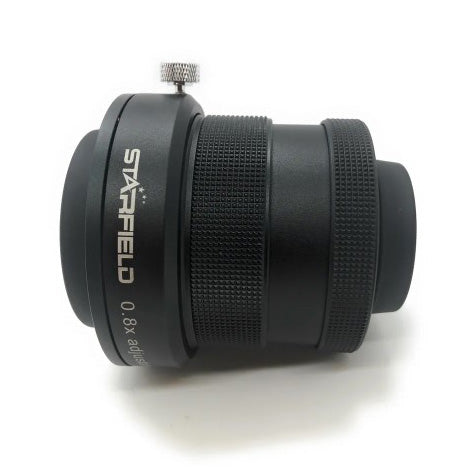

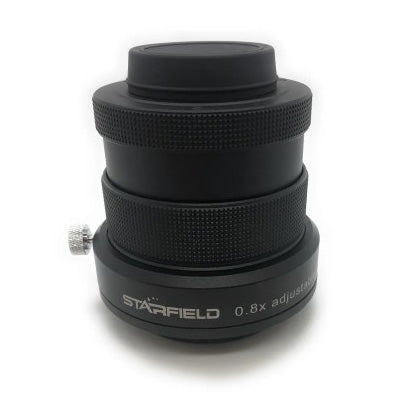

Starfield 2" Adjustable 0.8x Reducer for 70mm to 90mm Telescopes

Brand: Starfield Optics

SKU : SF-FFRA-08-2

- Read
Add to Wishlist

Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • Suitable for refractor telescopes from 70mm to 102mm aperture with 2" focusers
  • Filters can be added inside the reducer

Product Details

  • End the back focus struggle with the Starfield 2" Adjustable 0.8x Reducer for 70mm to 90mm Telescopes. This handy reducer makes finding and adjusting back focus easy when connected to the Géar 80 / 90 mm telescope focuser or other compatible telescope with a 2" focuser.

    Starfield 2" Adjustable 0.8x Reducer for 70mm to 90mm Telescopes

    Adjustable 2 inch Reducer for 70 to 90mm Telescopes



    The chart above shows back focus settings and dimensions for this 0.8x reducer. In addition to the listed telescopes, this reducer will work with other telescopes with a 70mm to 102mm aperture.

    • 102 mm / focal ratio f/7 - 55 mm
    • 90 mm / focal ration f/6 - 56 mm
    • 80 mm / focal ratio f/7 - 57.6 mm
    • 80 mm / focal ratio f/6 - 59.6 mm
    • 70 mm / focal ratio f/6 - 61.6 mm



    Achieving the correct amount of back focus is simple, just refer to the chart above. If fine tuning is required, just apply a small twist. When adding accessories such as filter wheels, internal filters, or rotators, simply add up the thickness of all the accessories plus the distance to your sensor and subtract from 61.6. Then you set the reducer to the number you just calculated for perfect back focus.

  • specifications

    Adjustment Range0 to 17mm Stepless
    Camera ConnectionM48x0.75 External Thread
    Focuser Size2"
    Internal Filter HolderYes
    Lens CoatingMulti Coated
    Lenses3 with ED Element
    Reduction Factor0.8x
    Telescope Aperture70mm to 102mm
    Telescope ConnectionM63x1 External Thread
    Telescope TypeRefractor
  • included items

    • Starfield Adjustable 2" Reducer for 70 to 90mm Telescopes
