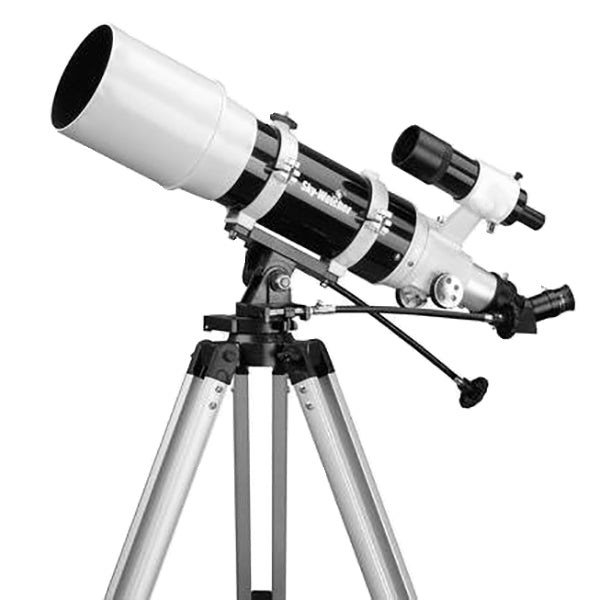

Sky-Watcher StarTravel 120 AZ3 f/5 Doublet Refracting Telescope

This Sky-Watcher 120mm (4.75-inch) f/5 telescope is a two-element, air-spaced, fully multi-coated objective, achromatic refractor, which can give exciting "rich field" astronomical views. It can provide excellent vistas of star fields, clusters, nebulae, galaxies, planets, the Moon and (with correct filtering or by projection) the Sun. It is also a fine terrestrial telescope when mounted on an alt-azimuth mount or a photographic tripod. Crisp images at a reasonable price make it an excellent beginner's "first telescope", or a great travelling telescope for a more advanced observer.

This larger aperture model has more light collecting power at the same focal ratio and accepts 2-inch diagonals for awesome wide field views, while only a small amount of chromatic aberration and weight. Weighing about 3kg. (6.5-pounds) the optical tube assembly is readily carried and with a compressed length of approximately 50cm (21.7-inches) it is easily transported.

As a refractor, it is quick and easy to set up and the low-maintenance, enclosed optics come fully collimated from the factory. The optical tube assembly comes with "tube mounting rings". These hinge open to allow easy installation of the optical tube and the locks can be loosened during use to allow tube rotation and balancing. Mounting the telescope on an alt-azimuth or an equatorial mount is quick and simple with the appropriate mounting plate. This telescope also performs well as a fixed aperture, 510mm lens for both terrestrial and astrophotography.

The "fast" f/5 focal ratio, combined with today's high-speed films, is excellent for capturing lunar and solar eclipses as well as for nature photographs. A solid, equatorial mount and a method of guiding are required for longer exposure astrophotography. A T-mount thread on the eyepiece holder allows direct attachment of an appropriate T2-adapter and the optional extension tube gives closer focusing for terrestrial photography.

-



  • 120mm achromatic refractor
  • 600mm (f/5)
  • Manual alt‐az mount (AZ3)
  • Accessory tray
  • Fine motion control knobs
  • Adjustable aluminum tripod
  • 25mm and10mm 1.25" Super eyepieces
  • 1.25" erect 45 degree image diagonal
  • 2" Rack and Pinionfocuser
  • 2" to 1.25" adapter
  • Red dot finder



  • 120mm achromatic refractor
  • 600mm (f/5)
  • Manual alt‐az mount (AZ3)
  • Accessory tray
  • Fine motion control knobs
  • Adjustable aluminum tripod
  • 25mm and10mm 1.25" Super eyepieces
  • 1.25" erect 45 degree image diagonal
  • 2" Rack and Pinion focuser
  • 2" to 1.25" adapter
  • Red dot finder







    SPECIFICATIONS

    Aperture120 mm (4.75")
    Camera/Eyepiece ConnectionFemale 2" Filter/Wide T—Ring (M48x0.75)
    Dawes Limit0.19 arcseconds
    Focal Length600 mm
    Focal Ratiof/5
    Free ShippingYes
    Hightest Magnification240x
    Light Gathering Power294x
    Limiting Magnitude14.1
    Optical DesignDoublet
    Tube Length600mm
    Tube Weight6.5 lbs
