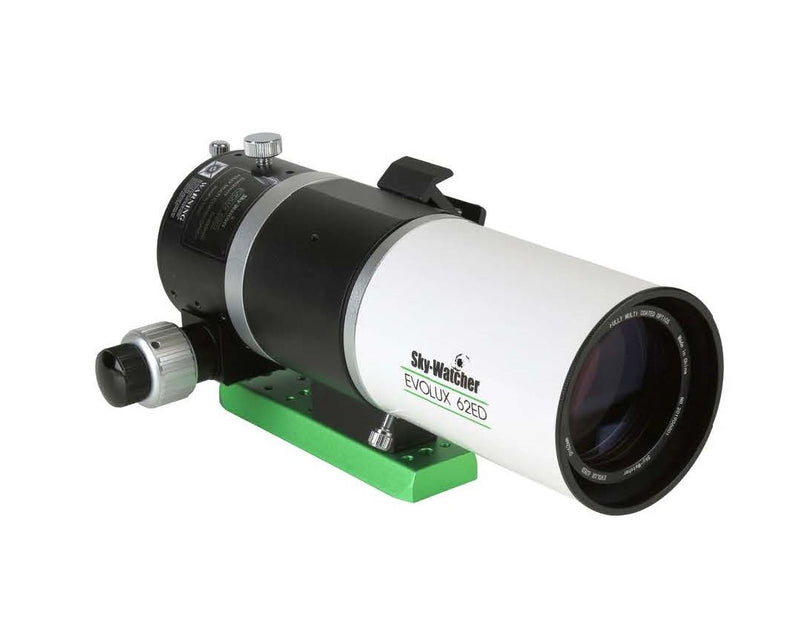

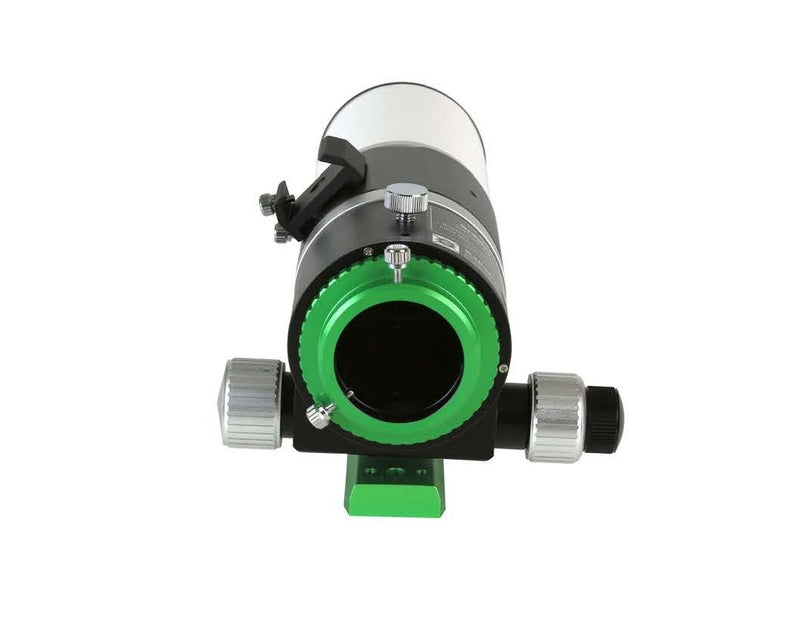

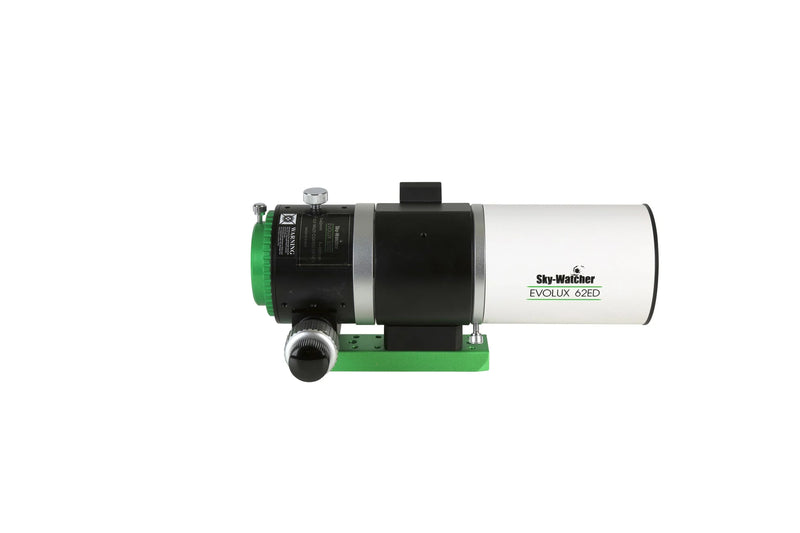

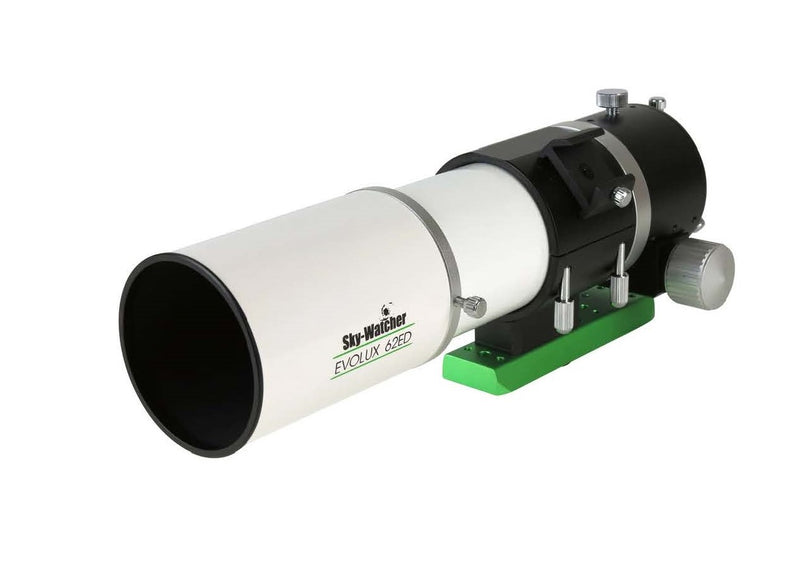

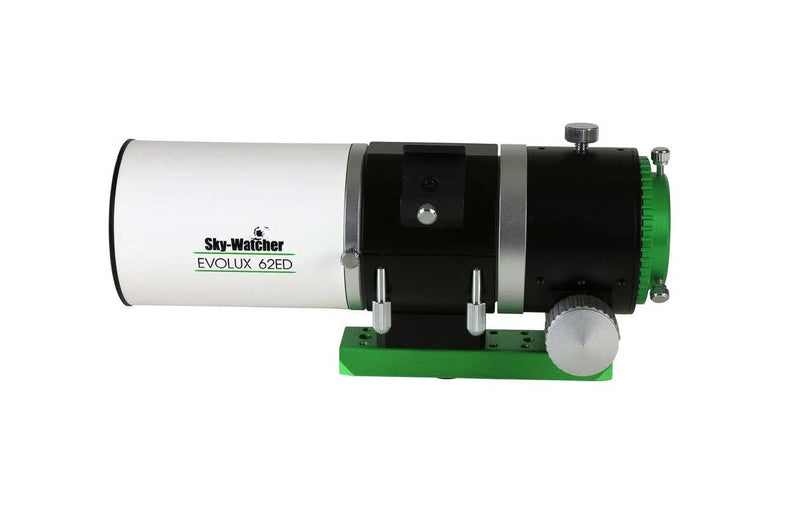

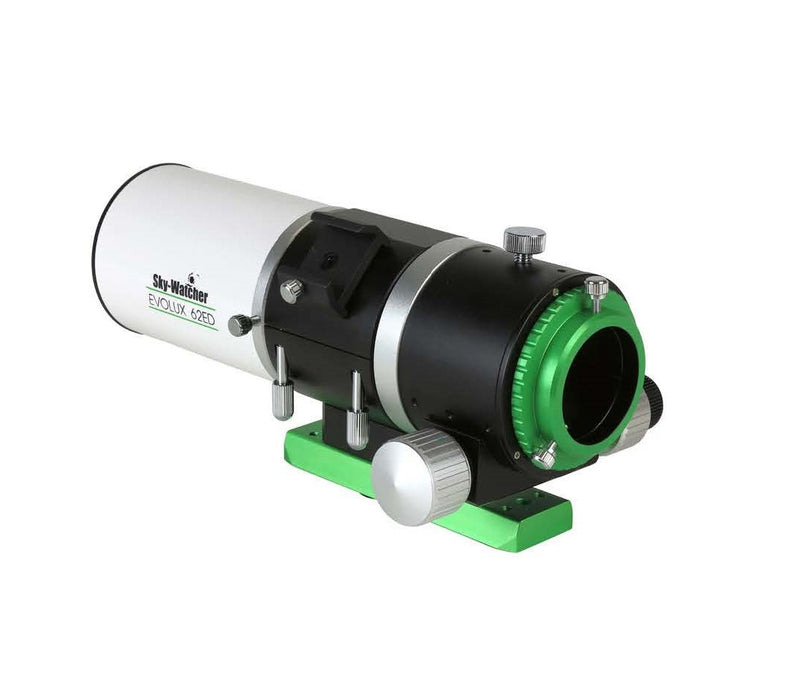

Sky-Watcher Evolux 62ED Doublet APO Refractor

Brand: Sky-Watcher

SKU : SW-S11305

- Read
Looking for a Sky-Watcher Evolux 62ED Doublet APO Refractor? Shop this product at Agena Astro by clicking the SHOP NOW button!
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • New ED doublet apochromatic optical design
  • New lightweight, compact design perfect for wide field astrophotography
  • New optical design featuring our proprietary Metallic High-Transmission Coatings™ (MHTC™)
  • 62mm aperture
  • 400mm focal length
  • Fast f/6.45 focal ratio
  • One ED element with matched optics
  • Adjustable dew shield protects against stray light and condensation on the lens
  • Clamshell mounting system with dual finder scope brackets
  • 2.4-inch 11:1 precision dual-speed rack-and-pinion style focuser for better load capacity
  • V-style dovetail fits most mounts
  • Optional reducer/corrector (360mm at F/5.8)
  • Hard case included for your travel or storage needs

Product Details

  • Building on the foundation of the popular Evostar line of refractors, Sky-Watcher has developed the all new Evolux. Designed for the savvy astrophotographer looking for a lightweight scope that still packs a punch with key upgrades in the optics and the mechanics, Evolux is a perfect fit for a wide field grab and go setup.

    Sky-Watcher’s Evolux apochromatic doublet refractors are the perfect blend of superior extra-low dispersion glass and affordability. The lens assembly utilizes a proprietary combination of matched lenses, delivering tack-sharp stars with charcoal-black, contrast-rich skies. All ED glass elements feature our proprietary Metallic High-Transmission Coatings™ (MHTC™), virtually eliminating all false color while the adjustable dew shield prevents stray light and condensation from affecting your photography.

  • specifications

    Aperture62mm (2.5")
    Back Focus55 mm
    Camera/Eyepiece ConnectionFemale M56x1 / Male M48
    Collimatable CellNo
    Corrected Image Circle30 mm
    Dawes Limit1.87 arcseconds
    Dew Shield Diameter90mm
    Dovetail Length6"
    Focal Length400mm
    Focal Ratiof/6.45
    Free ShippingYes
    Glass TypeED Doublet
    Highest Magnification122x
    Lens CoatingsFully Multi Coated
    Limiting Magnification11.44
    Lowest Magnification9x
    Optical DesignDoublet Refractor
    Optical QualityDiffraction Limited (1/4 wave)
    OTA Length Extended14.5"
    OTA Length Retracted11.5"
    Rayleigh Limit2.25
    Tube Diameter80 mm
    Tube Weight5.5 lb
  • included items

    • Sky Watcher Evolux 62ED Doublet APO Refractor
    • Foam-lined aluminum hard case (14.25" x 9.5" x 6.5")
    • 2.4-inch dual-speed rack-and-pinion-style focuser
    • Dual finder scope brackets
    • V-style dovetail
    • Clamshell ring
    • Adjustable dew shield
