Shelyak eShel Spectrograph System - No Guiding Camera

Brand: Shelyak

SKU : SL-ES0006

- Read
Looking for a Shelyak eShel Spectrograph System - No Guiding Camera? Shop this product at Agena Astro by clicking the SHOP NOW button!
SHOP NOW
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

Product Details

  • Shelyak eShel Spectrograph System

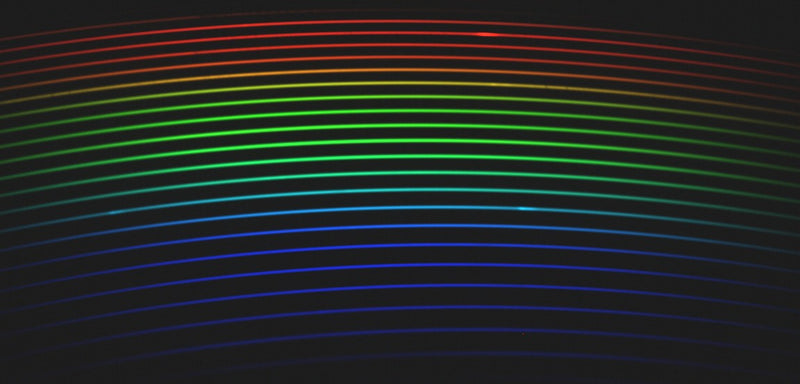

    The Shelyak eShel is the perfect spectroscopy solution specially designed for astronomy. This unique and highly functioning instrument will allow you to productively run your spectroscopic observations. Shelyak designed this spectrograph with Christian Buil, a highly recognized optician expert. The software module has been written by Michel Pujol, an expert in Tcl/Tk and AudeLA platform. They both complement Shelyak's expertise to bring you the best solution in Echelle spectroscopy for astronomy! (Sample Echelle spectrogram in the Gallery image.) The choice of optical fiber has been made to increase radial velocities measurement accuracy and for better comfort in using the eShel.

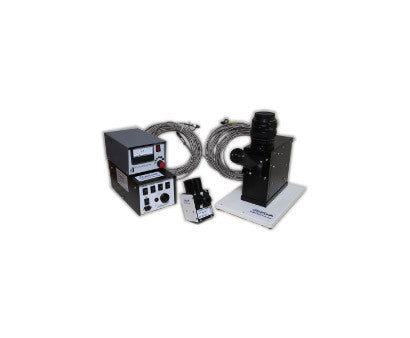

    This Shelyak eShel Spectrograph System Consists of Four Modules

    Fiber Injection & Guiding Unit



    • M42 T-adapter telescope interface
    • 43 mm backfocus
    • Mirror with light going through a 50 um hole for the f/6 standard version
    • Calibration fiber input (remote controlled mirror position)
    • Fiber optics
      • 50 um object fiber
      • 200 um calibration fiber
      • Fibers protected by metal/plastic casing
      • FC fiber connectors
      • Guiding Camera is not included in this package
    Calibration Unit
    • Thorium-Argon lamp with high voltage power supply for precise calibration
    • Flat lamp for Echelle order geometry and blaze processing
    • Electronic to control remotely calibration frame acquisition
    Eschelle Spectrograph
    • Cross-dispersed echelle spectrograph
      • f=125 mm collimator (f/5)
      • R2 high efficiency echelle grating
      • Coated prism cross-disperser
      • 85 mm f/1.8 objective
    • Compact
    • High power of resolution R=10000
    • Visible domain (around 450 to 700 nm)
    • Optimized for large telescopes (50 um fiber)
      • KAF1603me chip based (size >13 x 9 mm)
      • QSI 516ws or SBIG ST1603me camera recommended (not included)
      • Canon EOS lens interface with standard SLR backfocus
    eShel Software
    • Easy to use
    • Open source, based on AudeLA platform and Tcl/Tk language
    • Works on MS Windows platform
    • Multi-language support
    • Remote-controlled operations
    • Automatic spectra reduction procedure after acquisition
    • FITS file support with multiple HDU
    • Export individual orders or merged spectrum

    Shelyak Instruments Product Number: ES0006
