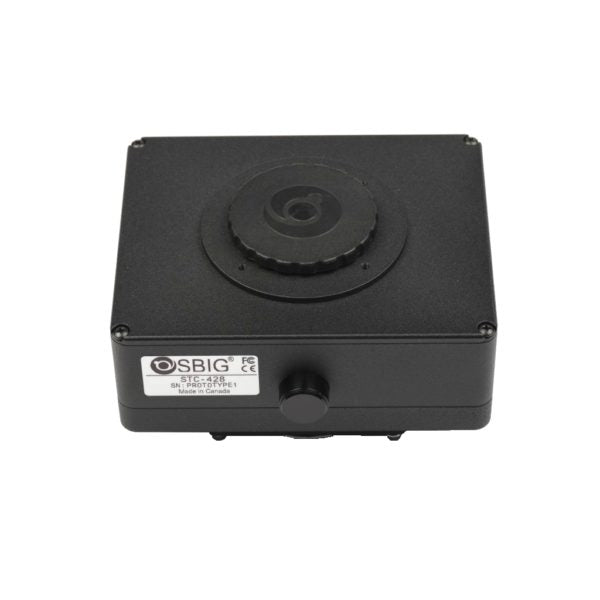

SBIG Scientific CMOS Imaging Camera Monochrome Camera with Internal Shutter

Brand: Diffraction Ltd.


- Read
Looking for a SBIG Scientific CMOS Imaging Camera Monochrome Camera with Internal Shutter? Shop this product at Agena Astro by clicking the SHOP NOW button!
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • A high sensitivity, low noice 7 megapixel IMX428 imaging sensor
  • Includes an internal mechanical shutter for taking dark frames
  • Electronic global shutter for fast exposure times

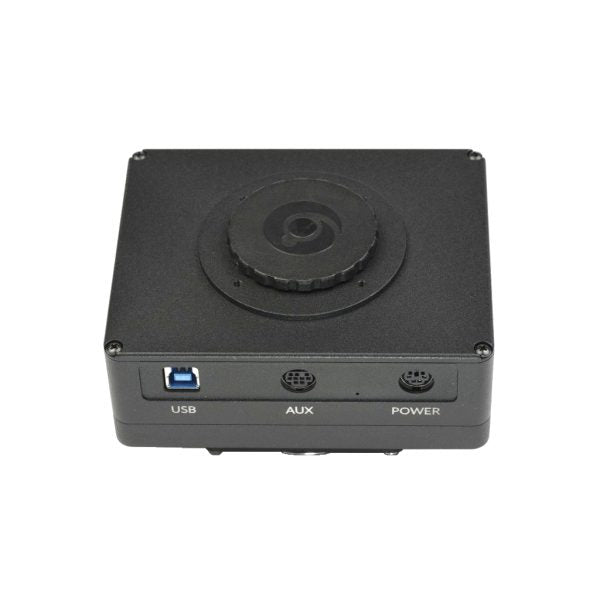

  • Highspeed USB 3.0 interface
  • Downloads in under 50 milliseconds

Product Details

  • The STC-428M Scientific CMOS imaging monochrome camera provides a high sensitivity, low noise 7-megapixel imaging experience in a compact package. This variation of this camera includes an internal mechanical shutter for taking dark frames.

    The new STC-428-M scientific CMOS camera represents a major improvement over CCD technology. Compared with previous CCD models, the STC-428-M features higher sensitivity (78% QE versus 56%), significantly lower read noise (2.5 e- versus 9.3 e-), and 20X faster readout.

    While a single exposure on the IMX428 sensor can equal CCD dynamic range, the combination of fast readout and very low read noise allows for stacking many shorter to produce a greater dynamic range than previously possible. The built-in StackPro™ capability can automatically divide your exposure into up to 16 shorter sub-exposures, and stack them inside the camera prior to download. This increases dynamic range without imposing greater processing requirements on the host computer.

    Our SmartCooling™ active regulation maintains the sensor temperature to within 0.1ºC, and minimizes fan speed based on heat sink temperature for longer life and quieter operation.

    Sensor Specifications:

    • SONY IMX428 CMOS imaging sensor
    • 3208 x 2200 pixels / 7.1 megapixel
    • 4.5 micron pixels
    • 17.6 mm diagonal
    • Peak QE 78%
    • Typical QE:
      • Red (635-700 nm) ~ 63%
      • Green (520-560 nm) ~ 78%
      • Blue (450-490 nm) ~ 75%
    • 12-bit A/D conversion with low-gain and high-gain modes
    • Very low read noise ~ 2.5e-
    • Very low dark current 0.1 e-/pixel/sec typical @ -5C
    • 80 dB dynamic range

    The STC-428-M supports several optional gain modes:

    • Low Gain
      • 12-bit data
      • Gain 5.5 e-/ADU
      • Full Well ~ 22,500 e-
      • Read Noise ~5 e-
    • Medium Gain
      • 12-bit data
      • Gain 2.45 e-/ADU
      • Full Well ~ 10,000 e-
      • Read Noise ~ 2.3 e-
    • High Gain
      • 12-bit data
      • Gain 1.2 e-/ADU
      • Full Well ~ 5,000 e-
      • Read Noise ~ 1.9 e-
  • specifications

    Cooling Delta30 °C
    Exposure0.001 to 3900 seconds
    Full Frame Download90 ms typical
    Imaging Array3208 x 2200 pixels
    Imaging SensorIMX428
    Peak QE78% typical
    Pixel Size4.5 x 4.5 micron
    Sensor Size14.4mm x 9.9mm
    Temperature RegulationYes
    Total Pixels7.1 megapixel
  • included items

    • SBIG STC-428 CMOS Monochrome Imaging Camera
    • T-Thread lens mount
    • 4-40 front panel screw mounts
    • 1/4-20 tripod mount
    • 2" nosepiece adapter
    • Universal power supply
    • USB 3.0 cable
