SBIG Aluma 694 Camera Pro Package with WiFi/USB Interface

SKU : SB-AL-694-PRO-PACK

- Read
  • Free Shipping

  • More on the Way in 14 - 28 Days

Add to Wishlist

Got questions? Click for live chat

  • Excellent performance research grade CCD Camera
  • Sensor: Sony ICX-694ALG
  • Type: Interline Transfer- Research Grade
  • Pixel Array: 2750 x 2200
  • Pixel Size: 4.54 Microns
  • Sensor Diagonal: 14.6 mm x 12.8 mm
  • Wi-Fi functional

Product Details

  • SBIG Aluma 694 Pro Package also includes:

    • 8-Position Self Guiding Filter Wheel
    • 36mm LRGB Filter Set
    • 36mm Narrowband 3-Filter Set

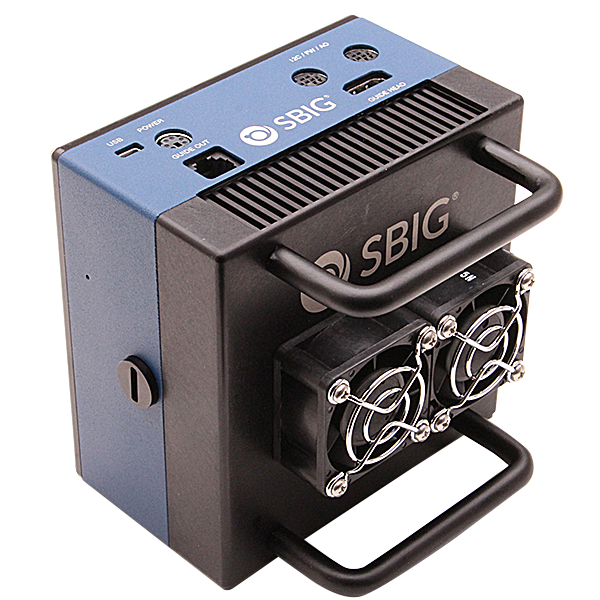

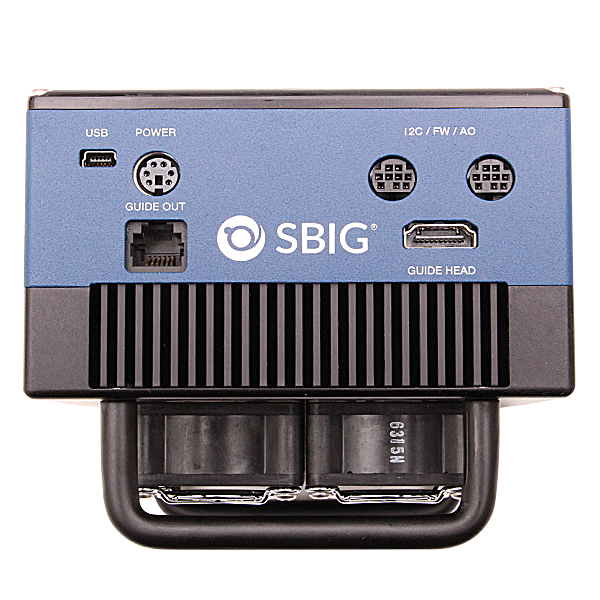

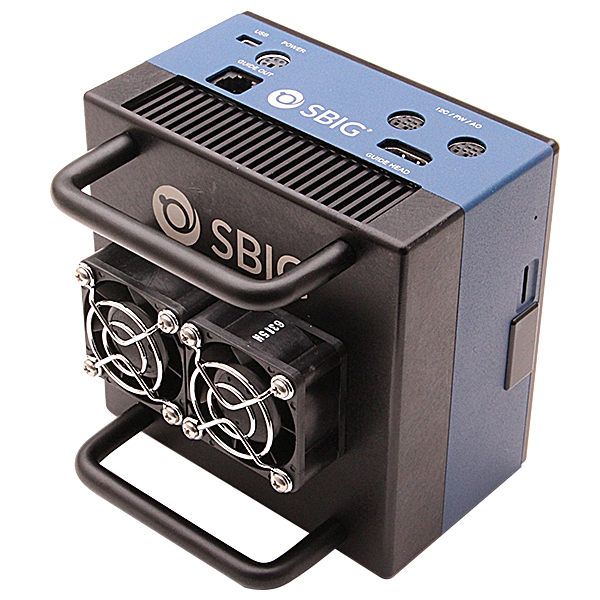

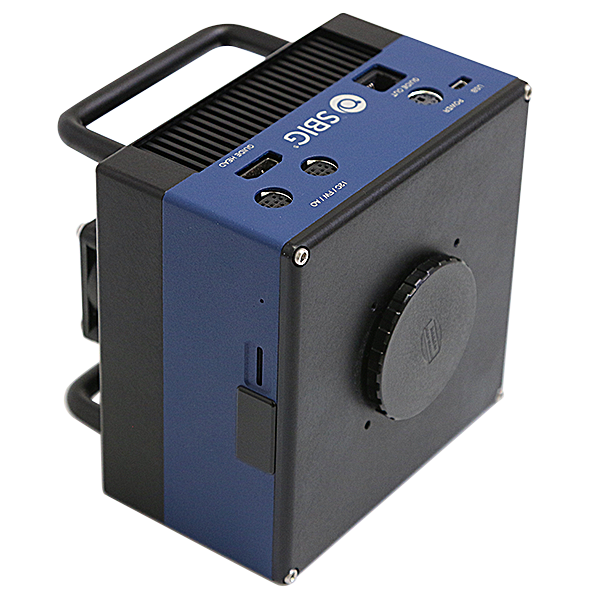

    The Aluma 694 is a high sensitivity research-grade Interline CCD camera using the popular Sony ICX-694ALG imaging sensor for high-quality results. It can boast several features that are unique among research-grade CCD cameras; it includes two-stage cooling, USB 2.0 and WiFi 802.11 b/g/n interfaces, ultra-reliable even-illumination shutter, and fast low-noise readout. The Aluma 694 can be operated remotely through Wi-Fi using a tablet, smartphone, or any kind of personal computer. It is compatible with Windows, Mac, and Linux operating systems.

    The mechanical shutter in use with the Aluma 694 has a minimum exposure time of 0.001 seconds, and a staggering maximum exposure time of 49 days, meaning that in most practical sessions it can go for as long as you would ever feasibly need. The inbuilt cooling system is a powerful TE system using two-stage cooling in the form of a pair of variable speed fans and a high-efficiency heat sink. The maximum cooling delta of this temperature control system is -50 Celsius below the surrounding temperature.

  • specifications

    ADC16 bit
    Color or MonoMonochrome
    CooledCooled
    Delta T50C
    Dynamic Range12.5 Stops
    Free ShippingYes
    Full Well25ke
    Mega Pixels6.1 mp
    Peak QE75%
    Pixel Array2750 x 2200
    Pixel Size4.54 microns
    Read Noise4.5e
    Sensor Diagonal16mm
    Sensor TypeCCD
    SensorSony ICX 694
    Weight2.2 lbs
  • included items

    • Aluma 694 Camera
    • Maxim AL Software
    • iOS / Android software coming soon (via app store)
    • Deluxe carrying case
    • Universal power supply (110V / 220V, 50-60 Hz)
    • 2" Nosepiece adapter
    • USB flash drive containing software, drivers, and documentation
    • 15 foot (4.5 m) USB cable
    • Tracking interface cable
    • SBIG Aluma 8-Position Self-Guiding Filter Wheel
    • 36mm LRGB Filter Set
    • 36mm Narrowband 3-Filter Set
