Radian Telescope 14-inch Lightweight Universal D-Style Dovetail Bar

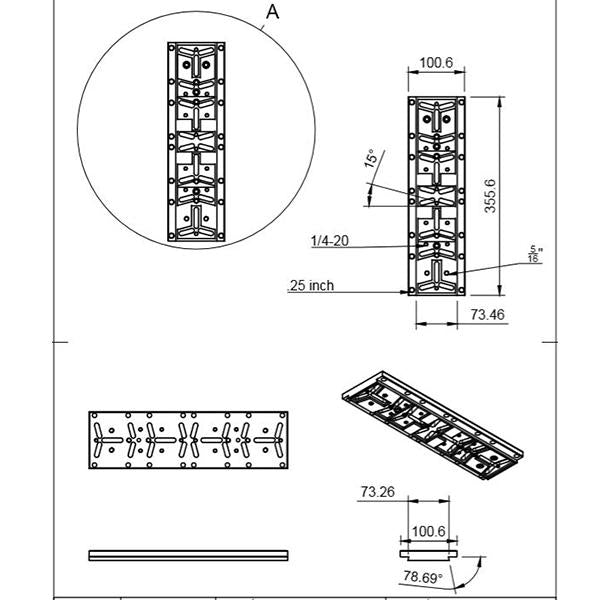

Radian Telescope 14-inch Lightweight Universal D-Style Dovetail Bar-dwg

Radian Telescopes 14-inch Lightweight Universal D-Style Dovetail Bar

SKU : RT-UDB-D-14LW

- Read
$89.95

Price Match Guarantee

Add to Wishlist

Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • Innovative universal slot design
  • Milled from Solid Aluminum Stock
  • Thicker shoulders for extra stability
  • Incremental side marking for finding the balance point
  • Scooped-out metal spaces to make it as lightweight as possible!

Product Details

  • Radian Telescopes 14-Inch Universal D-Style Dovetail Bar Hole and Slot Pattern Comparison

    All New Slot & Bolt Pattern

    The Radian Telescopes 14-Inch Universal D-Style Lightweight Dovetail Bar was completely redesigned to fit with any tube ring system. Unlike other brands, this dovetail bar uses mirrored angle slots to accommodate the width of the bolt pattern found on the most common tube rings. For the extra wide bolt patterns found on Astrophysics, TEC and Parallax rings, this dovetail bar has eighteen tapped 1/4-20 holes, 16 non-threaded counter-bored holes, and four 5/16-18 holes to bolt your hardware from the top of the plate downward.

    Radian Telescopes 14-Inch Universal D-Style Dovetail Bar Thickness Comparision

    Thicker Shoulders for Less Flexure

    The Radian Telescopes 14-Inch Lightweight Universal D-Style Dovetail Bar is thicker than most mass-produced dovetail bars. It is machined from solid aluminum stock to have a 14.4 mm shoulder which will prevent any mechanical flexure. This extra thickness performs so well it can hold larger SCTs in set of tube rings.

    Radian Telescopes 14-Inch Universal D-Style Dovetail Bar Side Markings

    Balance Point Markings

    Balancing your telescope on your mount can be an annoying and time consuming process. The Radian Telescopes 14-Inch Lightweight Universal Dovetail Bar makes this easier with its incremental marking on each side. One side has markings in centimeters while the other has markings in half inch increments.



    Image Note: Images are of the standard Radian Telescopes 14-inch Universal D-Style Dovetail Bar.

  • specifications

    Weight1.9 lbs

  • included items

    • Radian Telescopes 14-Inch Lightweight Universal D-Style Dovetail Bar
    • Four ¼-20" Stainless Steel Socket Head Screws
    • Four M6 Stainless Steel Socket Head Screws
