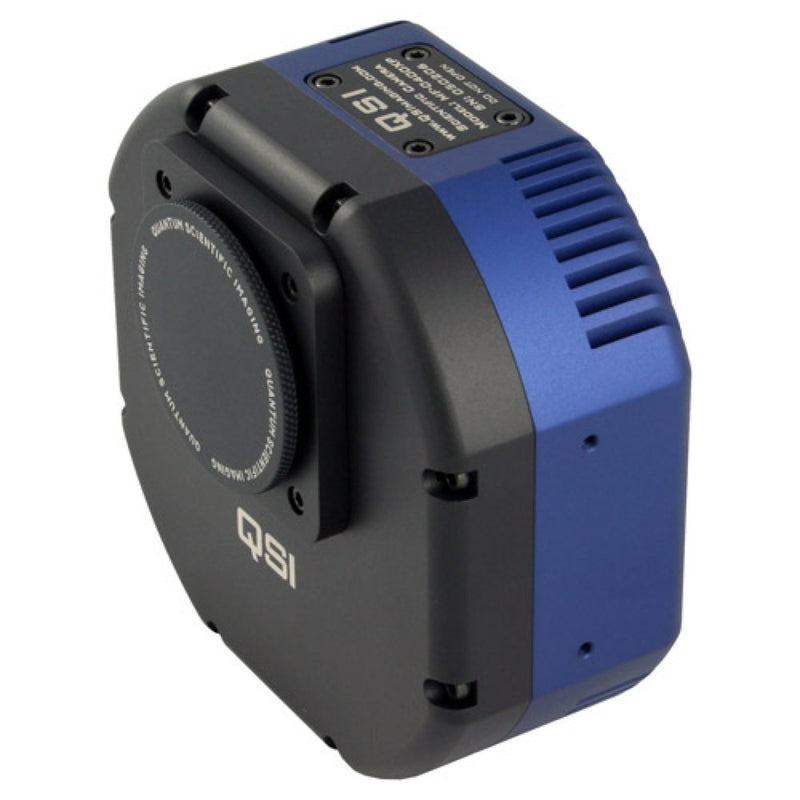

QSI 690i Monochrome CCD Camera - Electronic Shutter, Slim Body

SKU : QS-690I

- Read
  • More on the way in 14-28 days

Add to Wishlist

Got questions? Click for live chat

Product Details

  • The QSI 690i CCD camera features a monochrome, high sensitivity Sony ICX814 sensor. This model includes an electronic shutter only.

    About the QSI 600 Series Cameras

    The QSI 600 Series builds on the foundation of the popular QSI 500 Series. Dual read rates of up to 8 MHz with high-speed USB 2.0 and full 16-bit output allow 600 Series cameras to produce high quality images with high frame rates, extremely wide dynamic range, excellent linearity and exceptionally low noise. Cooling on the 600 Series is achieved with a custom 2-stage TEC supporting regulated cooling to greater than 45C, or greater than 50C with the option Liquid Heat Exchanger.

    The superb imaging performance of 600 Series cameras is wrapped in an attractive, compact design with outstanding power efficiency and investment protecting upgradeability. The refined engineering and impressive fit, finish and attention to detail will surpass your highest expectations.

    About the Sony ICX814 CCD Sensor

    The Sony ICX814 monochrome CCD sensor was built with sensitivity and high resolution in mind. Exceptionally sensitive in the near-infrared spectrum makes it a perfect choice for a wide range of applications, but particularly for imaging nebulae and galaxies. The ICX814ALG is a full frame sensor with a diagonal of nearly 16mm (15.972mm) allowing you to capture large objects.

  • specifications

    Back Focus15 mm
    Camera ConnectionM42 x 0.75
    Color or MonoMonochrome
    CooledCooled
    Mega Pixels9.2 MP
    MP9 to 12 MP
    Pixel Array3388 x 2712
    Pixel Size3.69 microns
    PS3 Microns or Smaller
    Sensor Diagonal16 mm
    Sensor TypeCCD
