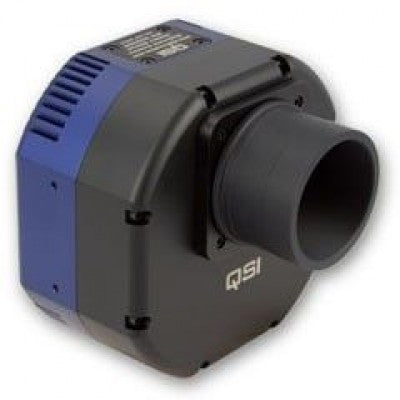

QSI 690ws Monochrome CCD Camera - Mechanical Shutter & 8 Position Filter Wheel

Brand: QSI

SKU : QS-690WS-8

- Read
Looking for a QSI 690ws Monochrome CCD Camera - Mechanical Shutter & 8 Position Filter Wheel? Shop this product at Agena Astro by clicking the SHOP NOW button!
SHOP NOW
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

Product Details

  • About the QSI 600 Series Cameras

    The QSI 600 Series builds on the foundation of the popular QSI 500 Series. Dual read rates of up to 8 MHz with high-speed USB 2.0 and full 16-bit output allow 600 Series cameras to produce high quality images with high frame rates, extremely wide dynamic range, excellent linearity and exceptionally low noise. Cooling on the 600 Series is achieved with a custom 2-stage TEC supporting regulated cooling to greater than 45C, or greater than 50C with the option Liquid Heat Exchanger.

    The superb imaging performance of 600 Series cameras is wrapped in an attractive, compact design with outstanding power efficiency and investment protecting upgradeability. The refined engineering and impressive fit, finish and attention to detail will surpass your highest expectations.

    QSI's 690WS includes both a mechanical and digital shutter. A mechanical shutter has the benefit of allowing for calibration frames to be shot, unattended and are more accurate than digital calibration frames. Also included is an 8 position filter wheel for 1.25" filters of your choice. Filters are not included in this package.

    About the Sony ICX814 CCD Sensor

    The Sony ICX814 monochrome CCD sensor was built with sensitivity and high resolution in mind. Exceptionally sensitive in the near-infrared spectrum makes it a perfect choice for a wide range of applications, but particularly for imaging nebulae and galaxies. The ICX814ALG is a full frame sensor with a diagonal of nearly 16mm (15.972mm) allowing you to capture large objects.

  • specifications

    Back Focus35.5 mm
    Camera ConnectionM42 x 0.75
    Color or MonoMonochrome
    CooledCooled
    Mega Pixels9.2 MP
    MP9 to 12 MP
    Pixel Array3388 x 2712
    Pixel Size3.69 microns
    PS3 Microns or Smaller
    Sensor Diagonal16 mm
    Sensor TypeCCD
