QHY Small Off-Axis Guider

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

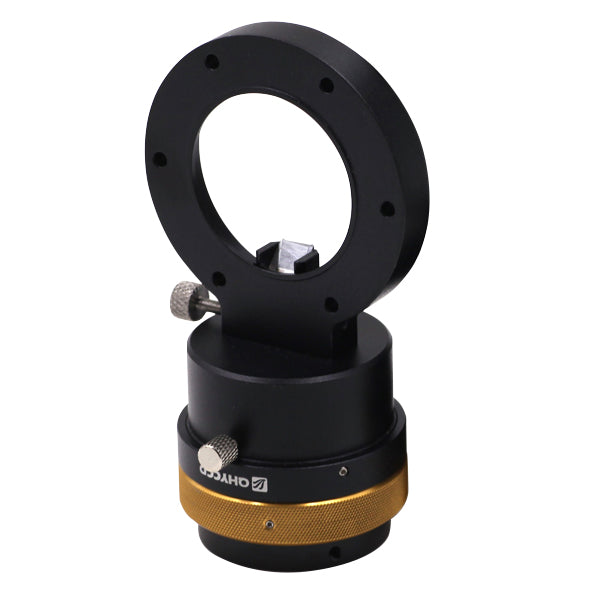

• The Small Off-Axis Guider by QHY has 35 mm to the center point. It is a thin and solid design only being 10 mm thick. Adding an M42 thread adapter ring will add 3 mm for a total thickness of 13 mm. There are six 3 mm through holes in the OAG for direct connection to the QH-QHYCFW2 and QHY A-series camera.

  The prism position can be adjusted and can be locked down to fix its position. The prism is 8 mm x 8 mm size and the aperture between the prism and mirror is 8 mm in diameter. The QH-QHYOAG has a multi-thread 1.25-inch focuser build in which has a locking thumbscrew to hold the guide camera after focusing.

• specifications

  Back Focus	10 mm
  Free Shipping	Yes
  Scope Side Connection	Female M42x0.75

• included items

  • Only compatible with M42 threading.
