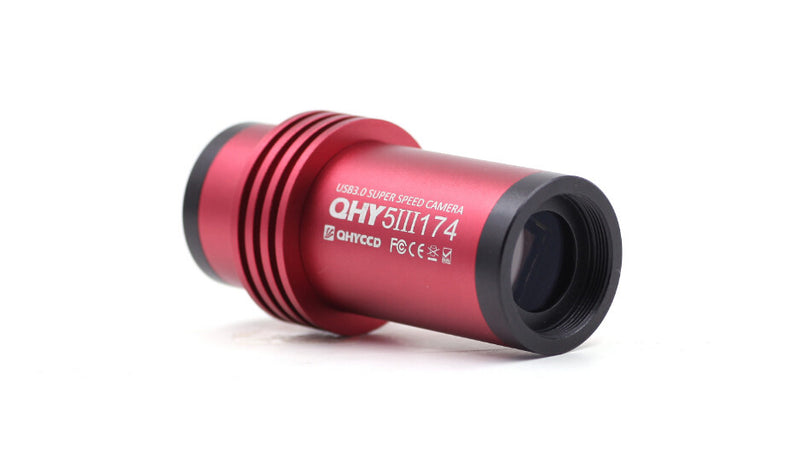

    QHY QHY5-III 174C Uncooled Color CMOS Telescope Camera

    The QHY5III IMX174 1/1.2-Inch 2.3MP Exmor Sensor CMOS Imaging Camera - Color: is the first in QHY's new line of QHY5III series CMOS USB3.0 cameras. It was designed to be excellent for Lunar, Planetary, and Solar imaging, and excels at all three. It also has the capability of taking video footage. This highly flexible design means that it can be used for a wide variety of imaging and video tasks with high-quality results.

    Part of what makes this camera so adaptable is probably the unique new sensor design from Sony that is used here. Sony introduced a new global shutter (GS) CMOS imaging technology called PregiusTM that redefines the GS CMOS imaging category and provides the best of both worlds with fast frame rate and CCD-like imaging performance. The technology offers lower dark noise, which enables higher gains without compromising image quality, as well as higher quantum efficiency. Furthermore, it eliminates pixelization caused by atmospheric agitation and high frame rates when imaging the Planets and the Moon.

    This new QHY camera keeps the 1.25-inch eyepiece design. The advantage of this design is a more efficient transfer of heat to the outer case enabling lower noise, especially in high ambient temperatures. The 1.25-inch design also offers the shortest possible backfocus, making the camera ideal for Off-Axis guiding. In addition, the QHY5III174 uses the rugged and reliable LEMOS style connector for the guide port.

    Additional Information

    ADC12 bit
    Back focus11mm
    Bayer MatrixColor
    Camera ConnectionC mount
    CooledUncooled
    Delta T50°C Below Ambient
    Dynamic Range12 Stops
    Free ShippingYes
    Full Rez Frame Rate138fps
    Full Well32ke
    ManufacturerQHY
    Max Frame Rate490fps
    Mega Pixels2.4 mp
    Peak QE78%
    Pixel Array1936 x 1216
    Pixel Size5.86 microns
    Power ConsumptionUSB 3.0 5V
    Read Noise5.3e
    Sensor Diagonal13.4mm
    Sensor TypeCMOS
    SensorSony IMX174 EXmor
    Weight0.19 lbs
