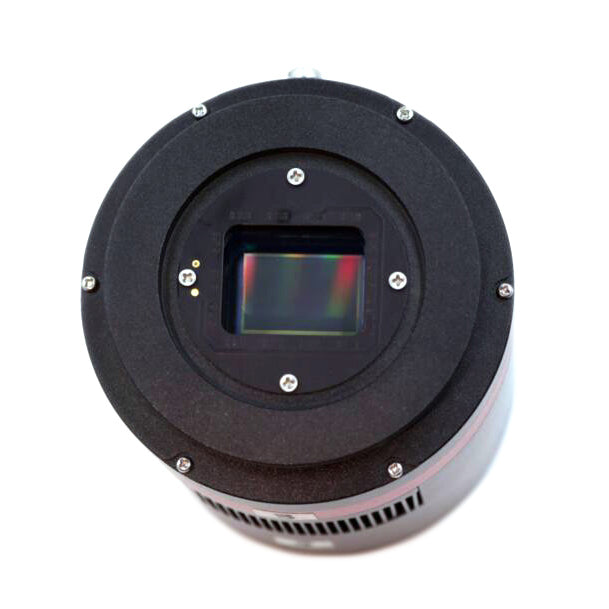

QHY 247 Cooled Color CMOS Telescope Camera

ITEM #
QH-QHY247C



  • APS-C format, 24 Megapixel, 14 bit CMOS color sensor.
  • Anti-dew heater to eliminate condensation and ice buildup
  • Anti-amp glow circuit to reduce long exposure amp glow
  • 128MB DDR memory to speed up download times
  • Sale
  • Regular price $1,699.00

In Stock
Free Shipping
Add to Wishlist
Already have gear? Trade it in for cash or new equipment.

Accessories Added

OPT Telescope Expert

Want Help?

Ask Our Telescope Experts

1.800.483.6287

QHY 247 Cooled Color CMOS Telescope Camera

The QHY 247 Coldmos Cooled Color CMOS Camera uses an APS-C format, 24 Megapixel, 14 bit CMOS color sensor. The Sony IMX193 sensor which is used in this camera is also found in the Nikon D5300 and D5500 cameras. With a read noise of 2.7 electrons and optimized TEC, This is camera produces the lowest amount of noise in QHY's product line.

128MB DDRII image buffer

This image buffer in this camera will prevent dropped frames and run multiple cameras without USB transfer problems. With the 12MB DDR buffer, you are able to capture still images or video footage without data being lost or corrupted.

Anti-dew technology

For more than a decade QHY has been designing cooled cameras and applied all of their knowledge to the QHY247 camera. The full anti-dew technology includes a sealed CMOS chamber with silicon gel tube socket and a heated chamber optical window. These features prevent dew from forming on the sensor and the chamber window allowing your to image in cold and humid environments.

Low Dark Current

In addition to dual stage TE cooling, QHYCCD implements proprietary technology in hardware to control the dark current noise in the QHY247C. As a result, the dark current of this camera is a remarkable 0.0012e-/p/s at -15C.

Sensor AR coating

Halos around bright stars are caused by reflections between surfaces of elements in the optical path. An uncoated surface usually reflects about 8%-10% of the light striking it while a high quality multiple layer coating reflects only 1% or less. The IMX193 has superb quality AR coatings on the sensor and this can significantly reduce the halo effect.

APS-C, 24 Megapixels

The QHY247C has 24 Megapixels, high resolution, 3.91 um pixels in a 6024 x 4024 array. When combined with high quality telescope optics or even with the RASA telescope, the QHY247C can generate the large images that are ideal for large scale printing.

 Vendor Number: 100103

 -

SPECIFICATIONS

ADC14 bit
Back Focus18 mm
Camera ConnectionFemale M42x.075
Color or MonoColor
CooledCooled
Delta T35C
Dynamic Range13.7 Stops
Free ShippingYes
Full Rez Frame Rate3fps
Full Well36ke
Max Frame Rate10fps
Mega Pixels24.2 mp
MPMore than 20 MP
Peak QE74
Pixel Array6024 x 4024
Pixel Size3.9 microns
PS3 Microns or Smaller
Read Noise2.7e
Sensor Diagonal28.3 mm
Sensor TypeCMOS
SensorSony IMX193
Weight1.5 lbs

INCLUDED ITEMS
