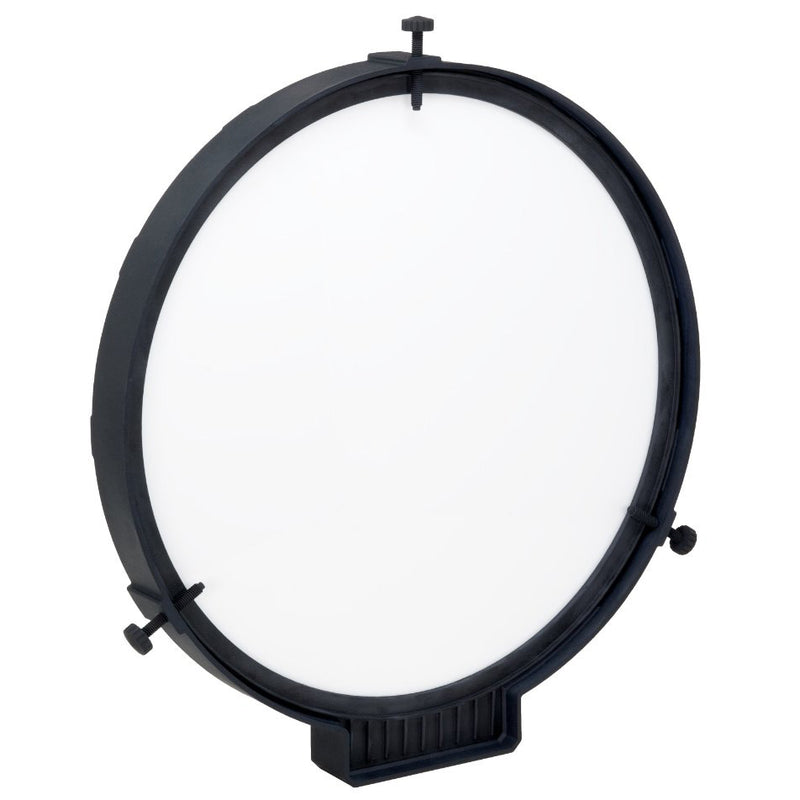

PrimaLuceLab GIOTTO 285 Smart Flat Field Generator

Brand: PrimaLuceLab


- Read
Looking for a PrimaLuceLab GIOTTO 285 Smart Flat Field Generator? Shop this product at Agena Astro by clicking the SHOP NOW button!
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • Even illumination for accurate flat field calibration
  • Fits telescopes up to 285mm in diameter
  • Adjustable light intensity: 100 levels
  • Control via built-in WiFi or USB-C
  • Requires 12v power source

Product Details

  • The PrimaLuceLab GIOTTO 285 Smart Flat Field Generator is designed to provide accurate flat field calibrations. The dimmable LED lights are mounted behind an advanced diffuser to allow for a perfectly flat field of light. This even light field creates the ideal view for camera calibration shots.

    PrimaLuceLab GIOTTO 285mm Smart Flat Field Generator

    PrimaLuceLab GIOTTO 285 Flat Field Generator Features


    GIOTTO flat field generators were created by PrimaLuceLab to give astrophotographers a perfectly uniform, flat color field. Select from 100 brightness levels for calibration purposes via USB-C or the built-in WiFi.

    Adjusting the GIOTTO flat field generator's brightness is easy with your smartphone or from your PC with the use of an ASCOM driver or the PLAY app for Windows. GIOTTO flat field generators are powered by 12v DC.


    GIOTTO 285 Dimensions


    GIOTTO 285 USB C Port and 12v Power

    USB-C and 12v Power Connections


    GIOTTO 285 Smart Flat Field Generator

    This flat field generator is suitable for use on telescopes with an aperture of up to 255mm. For example, the PrimaLuceLab GIOTTO 285 mm is a great choice for 10" to 12" telescopes. Thumbscrews allow for fast mounting to optical tubes with a 252mm to 315mm outer diameter.

    While the GIOTTO 285 may fit over your scope's OTA, you will want to be sure that the illuminated area of the GIOTTO generator will extend past your telescope's optical view. Because of this, if your telescope's external diameter is close to 285mm, you may want to consider upgrading to the GIOTTO 320. The idea is to ensure that the diameter of the illuminated field is larger than the diameter of your telescope's optical tube.

  • specifications

  • included items

    • PrimaLuceLab GIOTTO 285 Smart Flat Field Generator
