PrimaLuceLab EAGLE 4 Telescope Control Unit - Standard Version

Brand: PrimaLuceLab


- Read
Looking for a PrimaLuceLab EAGLE 4 Telescope Control Unit - Standard Version? Shop this product at Agena Astro by clicking the SHOP NOW button!
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • Single control unit with a powerful Windows 10 Enterprise computer
  • Quick SSD storage

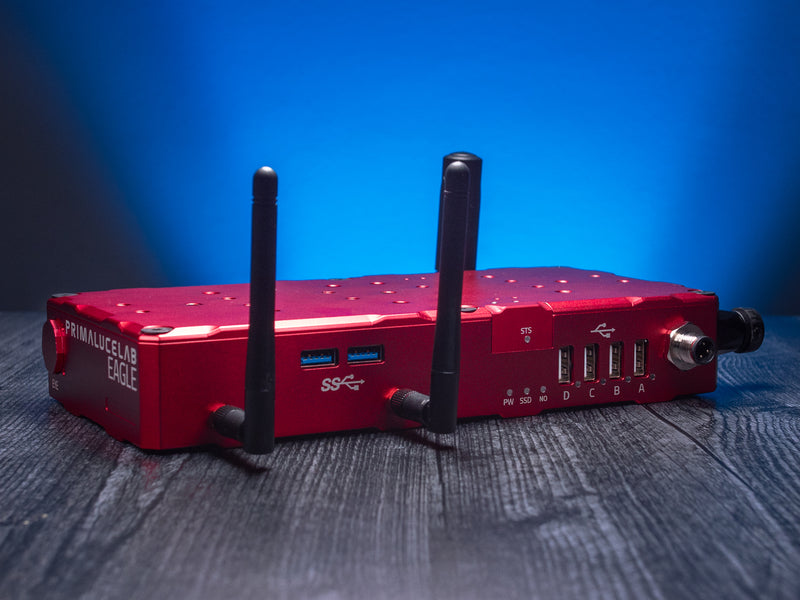

  • 8 port USB hub

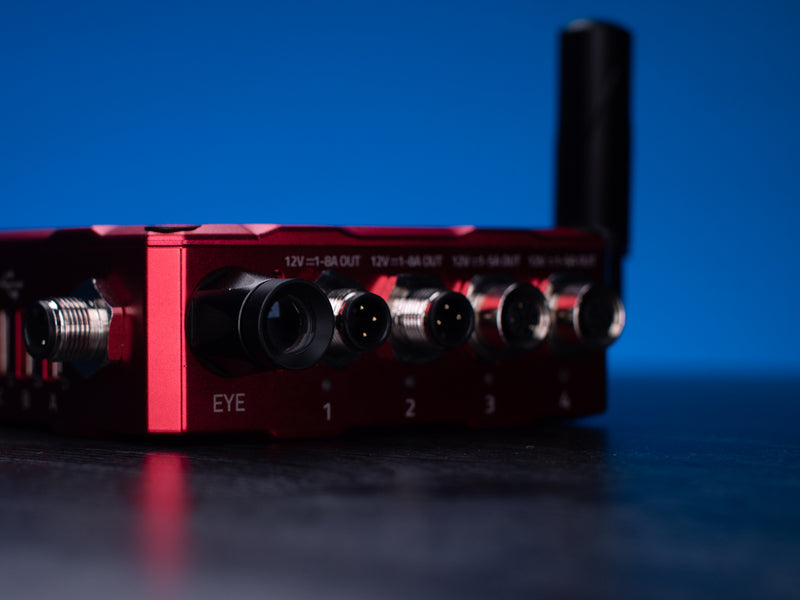

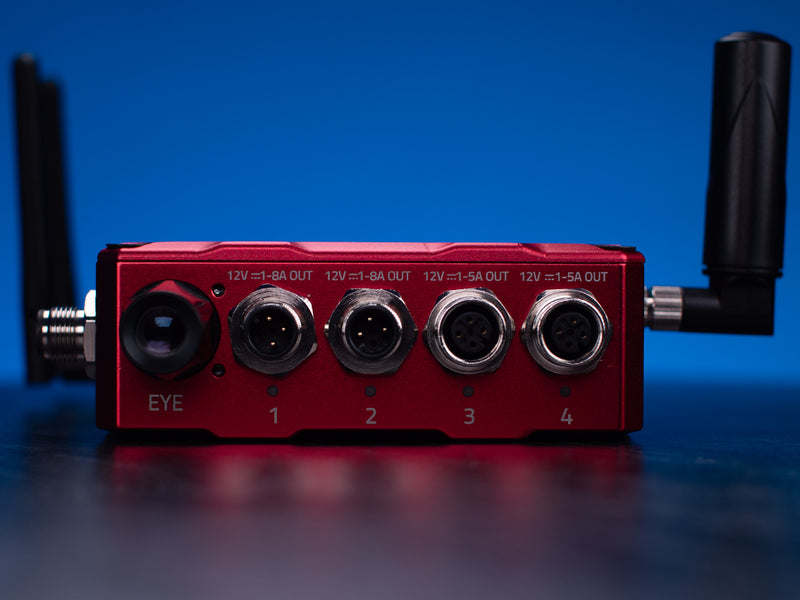

  • Advanced power distribution system for all of your imaging accessories with 7 power out ports
  • Controlled via the included EAGLE Manager software

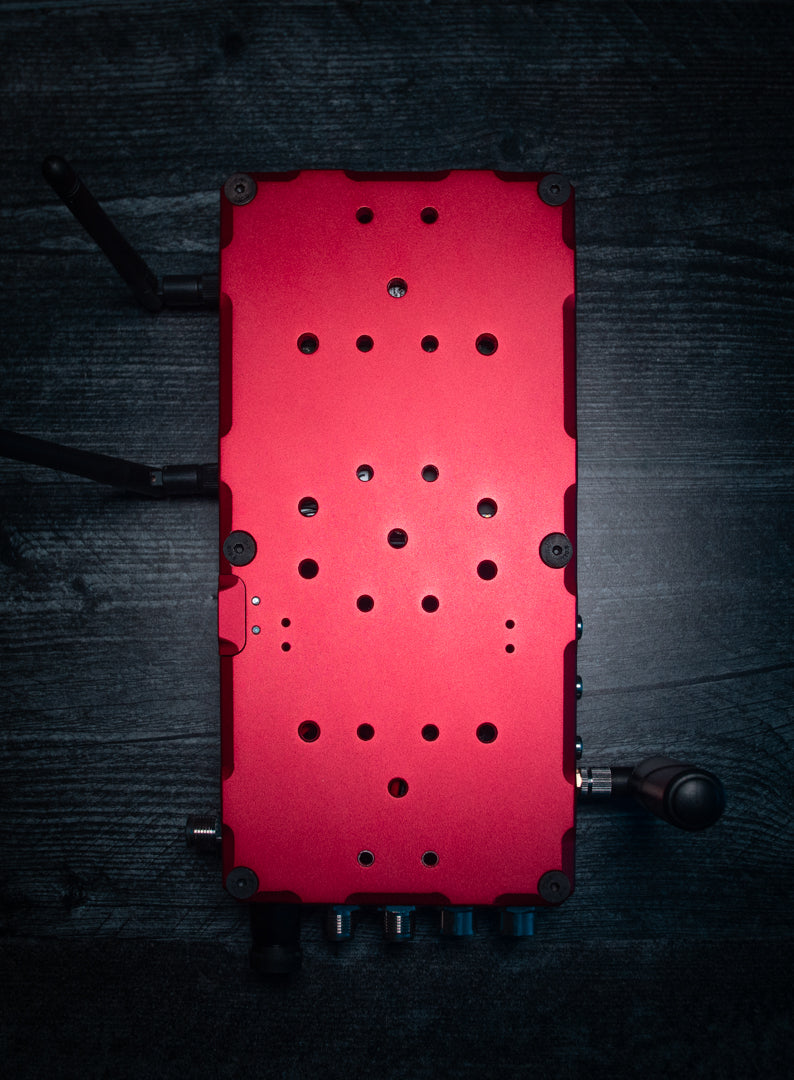

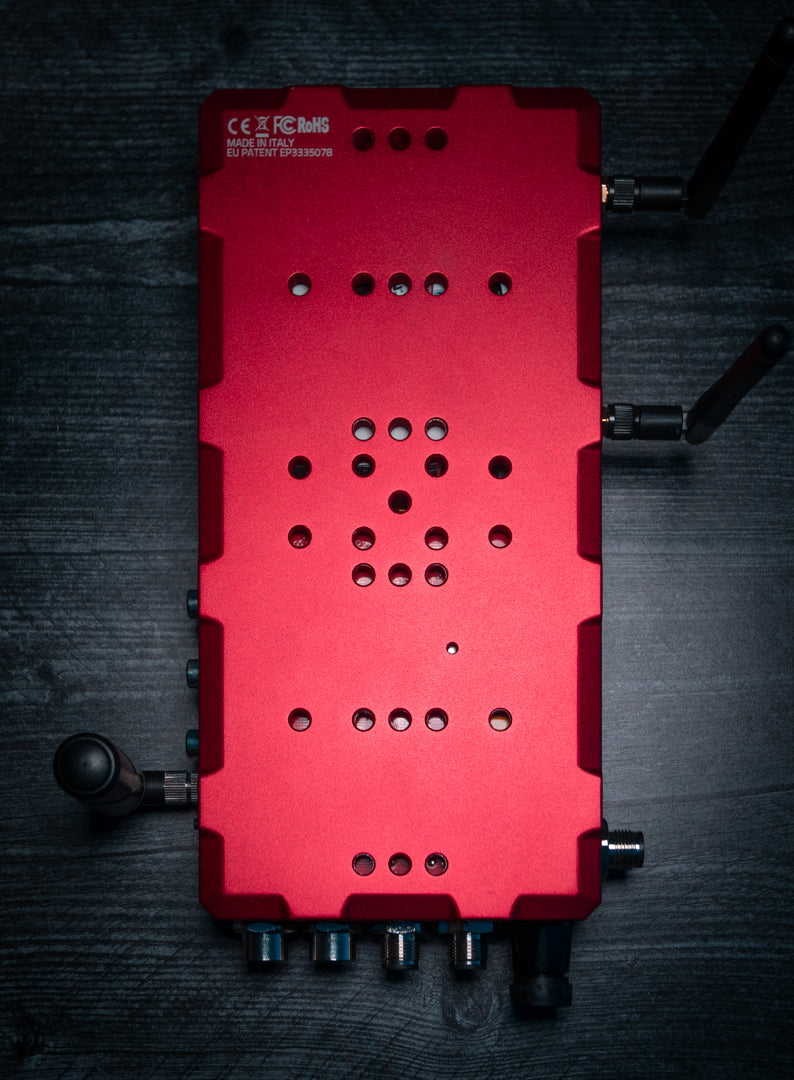

  • Housed in a beautiful rigid aluminum case designed with our flexible PLUS mounting system
  • Allows you to perfectly connect the EAGLE to any telescope

Product Details

  • Experience a Complete Telescope Control System with the EAGLE4

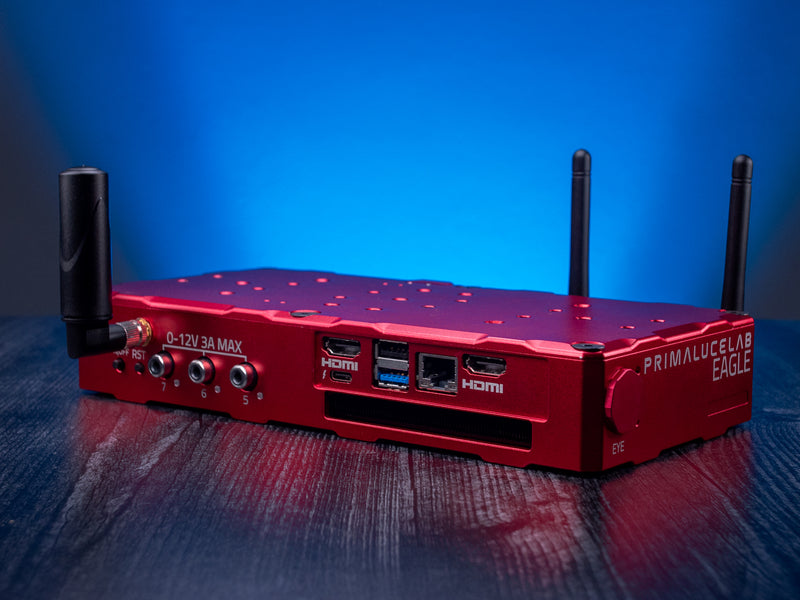

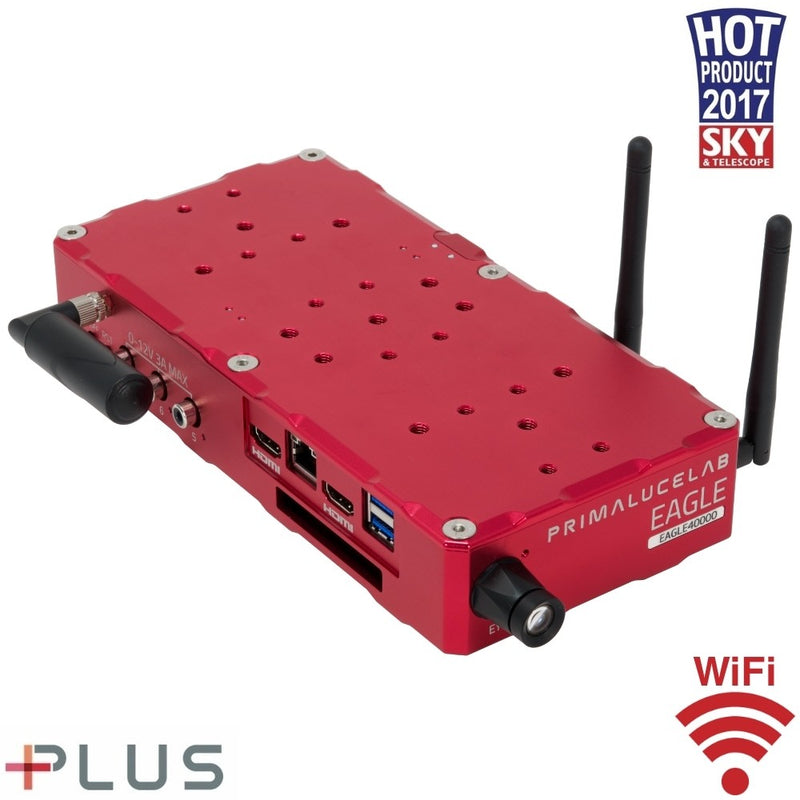

    Forget having to connect your telescope to a laptop or desktop computer with lengthy cables and big batteries. With the EAGLE4 you will spend less time setting up your equipment and more time imaging! In a single control unit, you have a powerful Windows 10 Enterprise computer (faster and more stable than standard computers), quick SSD storage, an 8 port USB hub (4 high-speed USB 3.0 ports, plus 4 USB 2.0 ports that can be remotely turned on/off), an advanced power distribution system for all of your imaging accessories with 7 power out ports (4 x 12V out plus 3x variable 0-12V ports for dew heater control), and a special WiFi system to remotely control the telescope from any smartphone, tablet or external computer (including Mac). Everything is controlled via the included EAGLE Manager software and housed in a beautiful rigid aluminum case designed with our flexible PLUS mounting system, allowing you to perfectly connect the EAGLE to any telescope.

    Features of the PrimaLuceLab EAGLE4

    Power Units and Cables

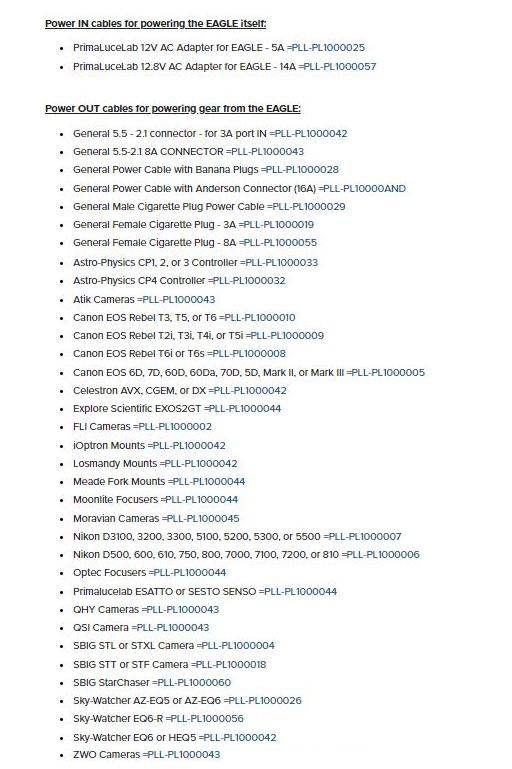

    In order to make the EAGLE system more efficient, PrimaLuceLab has made special power cables for different devices like mounts or cameras (sold separately). The EAGLE-compatible power cables have an instrument power jack (for 12V power) on one end, and the EAGLE screw-in connector on the other in order to prevent power cables from being disconnected accidentally from the EAGLE.

    Thanks to the EAGLE, you will have a single power cable going from your battery or AC power plug to the EAGLE. In the EAGLE box you will already find a 12V cigarette plug power cable (certified for total current up to 16A). Other optional power cables with other connectors (like Anderson or banana plugs) or AC adapters (with 5A or 12A max) are available.

    Install Any Astrophotography Software

    The EAGLE eliminates the need for an external computer and you are not limited to a preset list of features - You can install whatever software and device you want to use on the EAGLE. The Windows 10 Enterprise operating system is 100% Windows 10 compatible but is lighter-weight and more stable than traditional PCs that use Windows 10 Home or other OEM versions that come preinstalled with useless bloatware. PrimaLuceLab has optimized the Windows 10 Enterprise installation on the EAGLE to be a faster operating system (the EAGLE is ready to use just 20 seconds after pressing the ON button) and to maintain better stability during your astrophotography sessions. EAGLE uses a 2.0 GHz Celeron processor (J4005 dual-core with Burst Mode up to 2.7 GHz and 4MB cache) and 4 GB fast DDR4L RAM memory - both designed for low power consumption. This way you have the power you need to run any astrophotography software with a device that’s easy on your battery, improving overall portability.

    Telescope Control: the EAGLE Manager

    EAGLE comes with the "EAGLE Manager" software that, when you start EAGLE and with an easy and intuitive interface, shows devices connection status, power consumption of every device connected, power voltage value and, if you use a battery, its expected lifetime based on its charge. Thanks to  the EAGLE Manager:

    • Enable/Disable every 12V power out port

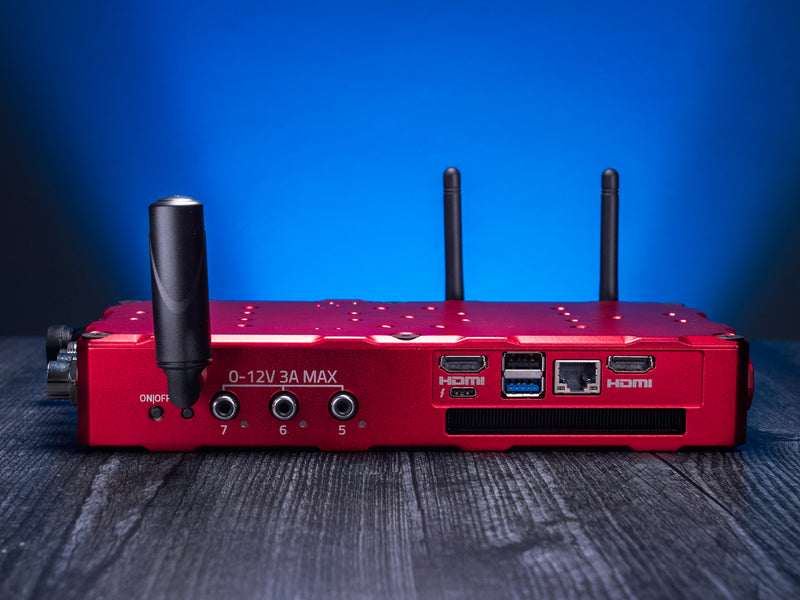

    • Set the power out voltage of the 3 x 0-12V power out ports

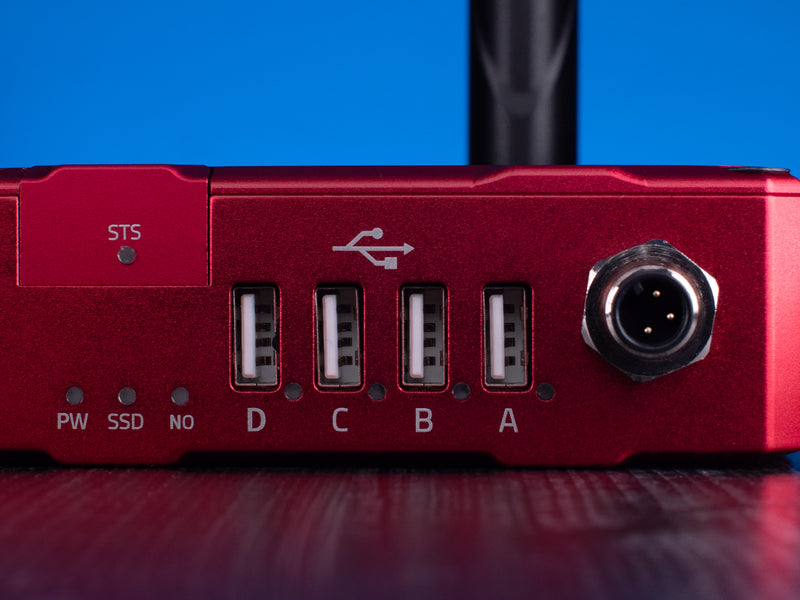

    • Connect or disconnect devices connected to the 4 USB 2.0 ports:
    • Check power consumption and battery lifetime
    • Set WiFi connectivity
    • Remotely turn on/off the entire telescope

    Integrated WIFI System

    To operate the EAGLE, you don't need a keyboard and mouse; you can control the EAGLE through a free dedicated app, available on any smartphone, tablet or personal computer running Windows, MacOS, iOS or Android. Turn the EAGLE on, then enable your device's WiFi connection and select the WiFi network provided by the EAGLE. Launch the remote control app and you will have EAGLE desktop on your screen with access to all your astrophotography software. If you like, you can also configure the EAGLE to connect to a pre-existing WiFi or wired/ethernet network allowing remote access via the internet - perfect for remote observatories! Since the EAGLE doesn't use VNC or other software for remote control, it's faster and more stable. For your safety each EAGLE device creates a unique WiFi network, from any other EAGLE that might be nearby. To avoid any other issues at a star party, every EAGLE also has a unique access password known only by you.

    The Latest EAGLE Models

    PrimaLuceLab EAGLE 4 - different models

    Product Measurements

  • included items

    • PrimaLuceLab EAGLE4 Telescope Control Unit
    • 2 WiFi Antennas
    • GPS Antenna
    • 12V Power Cable with Cigarette Plug for EAGLE - 250cm
    • n.4 M6x8 screws + n.4 M6x10 screws + n.4 M6x12 screws + n.4 M6x18 screws + n.4 M6x25 screws + n.4 M6x35 screws
    • Quick Guide
