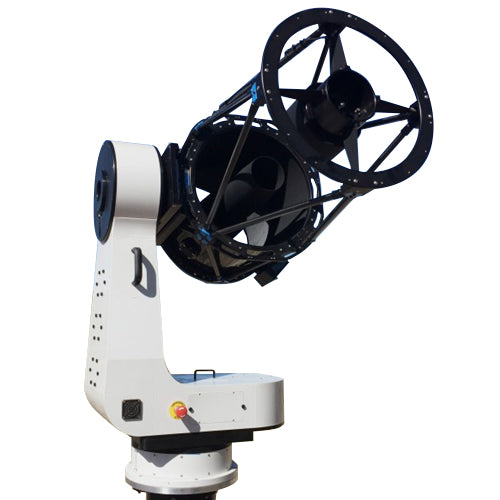

PlaneWave CDK400 (17-inch) Telescope System

Brand: Planewave

SKU : PI-170130Q

- Read
Looking for a PlaneWave CDK400 (17-inch) Telescope System? Shop this product at Agena Astro by clicking the SHOP NOW button!
SHOP NOW
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

This product is delivered via freight. Finalized shipping costs and crating fees will be determined after the order is placed.

  • For time frames or questions, please contact us at 800-483-6287.
  • Full system weight: 370 lbs.
  • Max load capacity: 200 lbs.
  • Focal length: 2939 mm (116 inches)
  • Focal ratio: f/6.8
  • Aperture: 432 mm (17 inches)
  • Image circle: 70 mm

Product Details

  • PlaneWave 17-inch CDK Features:

    • For time frames or questions, please contact us at 800-483-6287.
    • Dual Carbon Fiber Truss Design: Minimizes thermal expansion which causes focus shift with changes in temperature.
    • Carbon Fiber Lower Light Shroud: Protects the primary mirror from damage and from stray light.
    • Fused Silica Optics: Synthetic amorphous silica glass of the highest purity and one of the most transparent glasses available. Superior optical and thermal properties to most other glass in the world.
    • Dovetail expansion joint: Allows for the difference in thermal expansion between carbon fiber and aluminum. The expansion joint allows the aluminum dovetail to expand and contract without stressing the carbon fiber lower truss.
    • Cooling Fans: Three fans blow filtered air onto the back of the primary mirror to help it quickly equilibrate to the ambient temperature. The fans are controlled by a switch on the optical tube or can be controlled by a computer if the optional EFA Kit is purchased.
    • Delta-T Ready: Internally wired with polyimide film heater pads and temperature sensors that can be controlled with the (optional) Delta-T controller.

    The PlaneWave CDK Design

    Created to meet the demands of both the serious imager and visual observer, the PlaneWave CDK (Corrected Dall-Kirkham) design far exceeds the off-axis performance of most commercial telescope designs, including the Ritchey Chretien. The RMS spot sizes at the edge of a 35 mm frame remain smaller than a single pixel on the most advanced CCD cameras available to most astronomers today. Most telescope images degrade as you move off-axis from either coma, off-axis astigmatism, or field curvature. The CDK design suffers from none of these problems.

    The PlaneWave CDK is coma-free, has no off-axis astigmatism, and has a flat field. The design is a simple and elegant solution to the problems posed above. The CDK consists of three components: an ellipsoidal primary mirror, a spherical secondary mirror, and a lens group. All these components are optimized to work in concert in order to create superb pinpoint stars across the entire 52 mm image plane.

    One of the unique features of the PlaneWave CDK design is its ease of collimation and achievable centering tolerance for a telescope of its class. This ease of alignment and collimation guarantees the user will be sure to get the best performance out of the telescope possible, each and every night. The end result at the image plane of the CDK design is pinpoint stars from the center of the field of view out to the corner of the field of view.

    Important Order Information:
    • For time frames or questions, please contact us at 800-483-6287.
    • If these are out of stock, PlaneWave requires a 50% deposit at the time your order is placed. If you decide to cancel that order, the manufacturer will keep $800 from your deposit. (Lead time for out of stock is about 90 days.)
    • We also need to know which CCD camera you will be using so that we can inform you of the proper adapters for your set-up.
    • Shipping charges will be quoted separately. Just contact OPT for a shipping quote. The quote will include a shipping crate.

    L-Series Mount Features:

    • For time frames or questions, please contact us at 800-483-6287.
    • Direct-drive motors on each axis for smooth, fast, and virtually silent movement of the telescope
    • Slew speeds up to 50 degrees per second
    • High-resolution encoders on each axis for precise positioning
    • Zero backlash
    • Zero periodic error
    • PointXP mount modeling software
    • Enclosed electronics

    The L-Series mount combines versatility, simplicity, and affordability by combining all the technology of our Observatory class telescopes into a compact stand-alone mount. In its Alt/Az configuration, it is considerably more compact than its German equatorial counterpart, allowing a larger telescope to fit in a smaller enclosure.  Unlike German Equatorial mounts, there are no meridian flips to deal with, and no large protruding counterweights to create a dangerous hazard in a public observatory. Alt/Az is more intuitive to use and no polar alignment is needed. Besides, it is the way the pros do it!

    Direct drive motors and encoders Direct Drive motors and on-axis encoders eliminate the need for gears, thereby eliminating backlash and periodic error. With high-resolution encoders providing the feedback for the direct drive motors, not only will the telescope track without periodic error and backlash, but the mount will also counter wind gusts with precise servo feedback.
    Incredible Slew Speed The direct-drive motors can move the telescope at speeds up to 50 degrees per second for tracking satellites or just to minimize target acquisition time.
    Dual mounting bracket PlaneWave style mounting bracket to hold CDK17/20 onto inside of fork arm with the additional option of mounting a scope on the outside of the fork arm. Optional dovetail clamp required.
    Azimuth dovetail balance system For precise center of gravity balance whether in Alt-Az or Equatorial configuration
    Through the mount cabling Access panels in the fork arm and azimuth axis allow for camera equipment cabling through the inside of the mount.
    Proven CDK700/PW1000 Technology The L-Series uses the same proven technology as the CDK700 and 1-Meter PW1000 which are being used in Universities around the world.
  • specifications

    Aperture432 mm (17")
    Back Focus260 mm
    ComputerizedComputerized
    Corrected Image Circle70 mm
    Dawes Limit0.27 arcseconds
    Drive TypeDirect
    Focal Length2939 mm
    Focal Ratiof/6.8
    Glass TypeFused SIlica
    Head DesignAltitude Azimuth
    Highest Magnification864x
    Latitude Range0 to 90 Degrees
    Light Gathering Power3809x
    Mount Head Weight257 lb
    Optical DesignCorrected Dall Kirkham
    PECYes
    Tracking Accuracy0.3 Arcseconds
    Tube Diameter445 mm/9.37 inches
    Tube Length1067 mm
    Tube Weight106 lb
  • included items

    • For time frames or questions, please contact us at 800-483-6287.
    • PlaneWave CDK400 (17-inch) Telescope OTA
    • PlaneWave L-500 Direct Drive Mount
    • 12V DC Power Supply (Not included with European Orders)
    • English Hex Wrench Set (European Orders Only)
