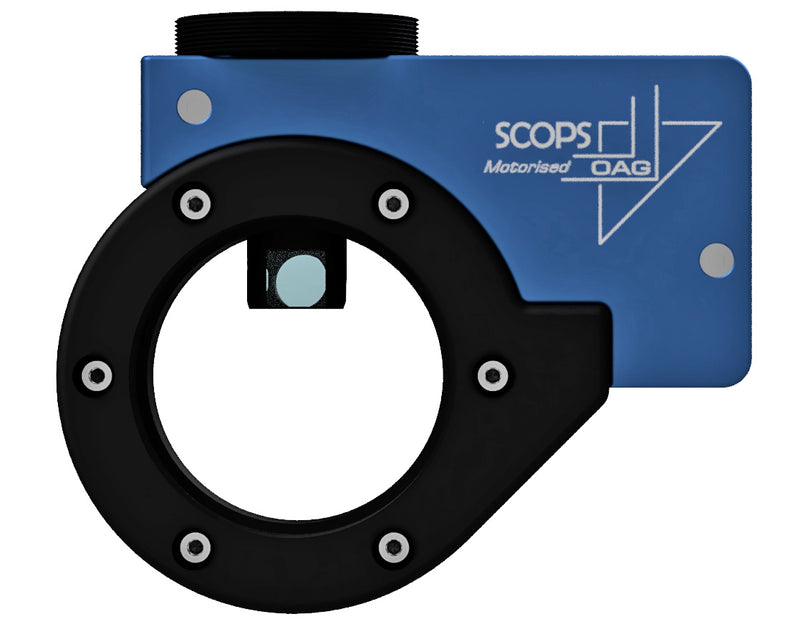

• Pegasus Astro Scops Motorized Off-Axis Guider

  The new Scops OAG (off-axis guider) from Pegasus Astro is a perfectly designed guider that can be used for remote operation, allowing you to adjust the focus of your guide camera with amazing precision. It is easily operable with ASCOM focus drivers or standalone software, making the guiding of your equatorial mount a breeze!

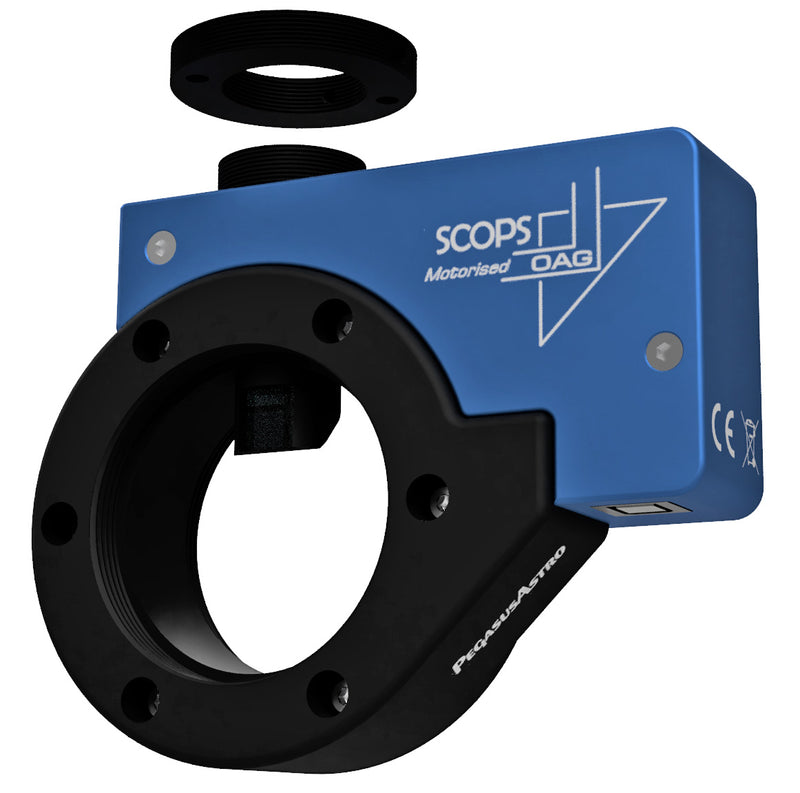

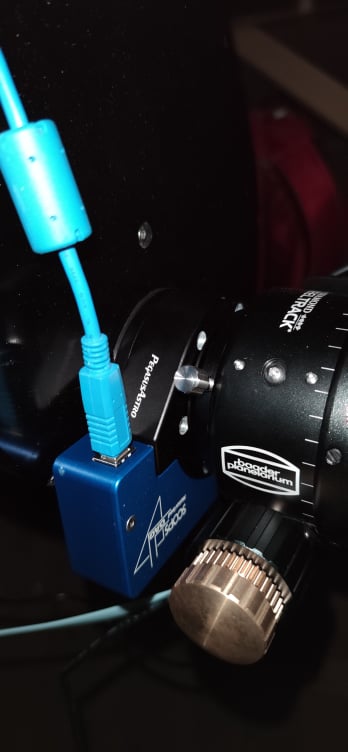

  For further ease of use, the Scops OAG does not require an external controller! Its body includes all of the electronics and only 1 USB cable is plugged, providing both power and control to the OAG. A stepper motor is used to ensure absolute focus precision. Simply profile each filter that might have a different focus position and click the filter in the supplied software to perfectly set the OAG to the stored position!

  Scops OAG has six (6) screw holes that allow it to be combined with Pegasus Astro's Falcon Rotator (SKU: PGA-ROT-FALCON) without any additional adapters.

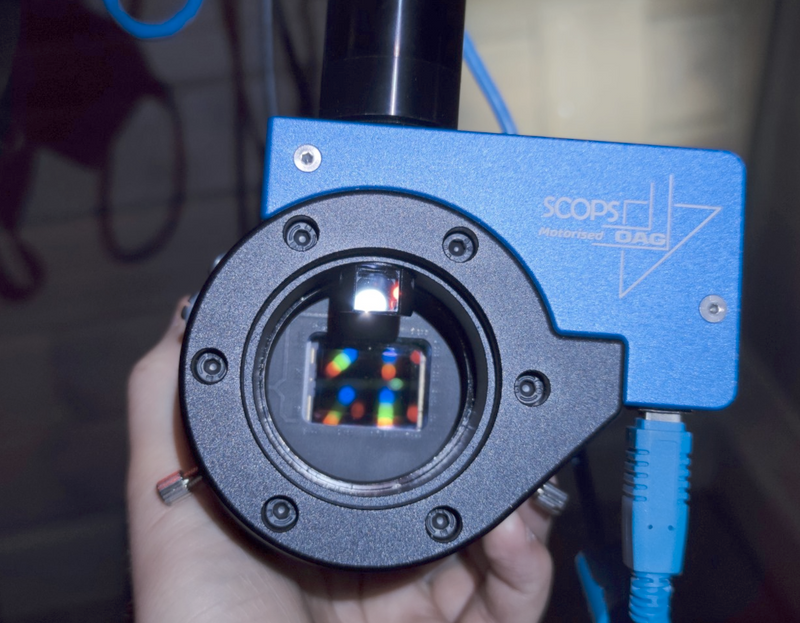

  A large 10 x 10 mm mirror that is fully multicoated and anti-reflection gives you full illumination to the guiding camera. You'll notice that stars are round and bright across the OAG's whole field of view. The prism height is totally adjustable to allow better illumination of the guiding camera's FoV (field of view). If your imaging / main camera sensor is large, the prism can be moved (with a set screw) upwards to prevent any obstruction of the sensor's optical path.

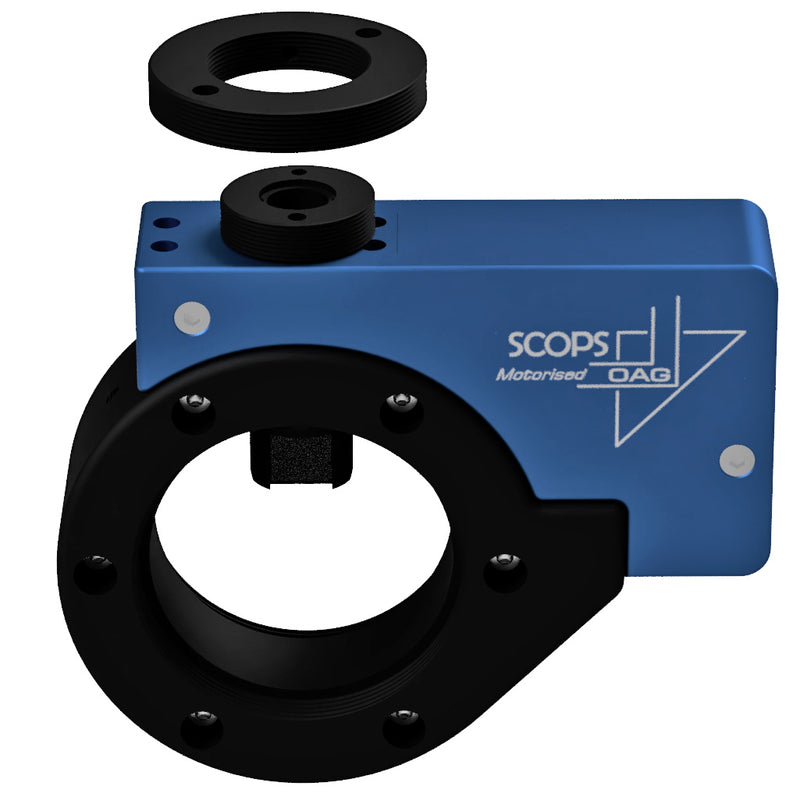

  The Scops OAG is built robustly at 31.4 mm thick, sturdy enough to support heavy imaging equipment. The OAG has 50 mm of clear aperture and accepts M54 threaded adapters on both sides. It accepts M42 and all new C-threaded guiding cameras. Both of these adapters (M42 / C) are included in the box.

  Please Note:

  • From the Center of the optical path to the edge of the prism is 8mm
  • From the Center of the optical path to the edge of the prism is 17mm
  • Diameter is 17.5mm (prism is 10x10mm, the bore of the main shaft is 10mm in diameter)

• specifications

  Back Focus	31.4 mm
  Camera/Eyepiece Side Connection	Female M54x.75
  Scope Side Connection	Female M54x.75
  Weight	0.9 lbs

• included items

  • Scops Off-Axis Guider
  • One (1) M54 Male to 2" Nosepiece
  • One (1) M54 Male to M48 Male Adapter
  • One (1) M42 Male to CD thread Guiding Adapter
  • 6 pieces x M3x8 mm screws (alternatively to attach Scops OAG on the Falcon Rotator)
  • One (1) USB2 Type B Cable (1.8 m)
