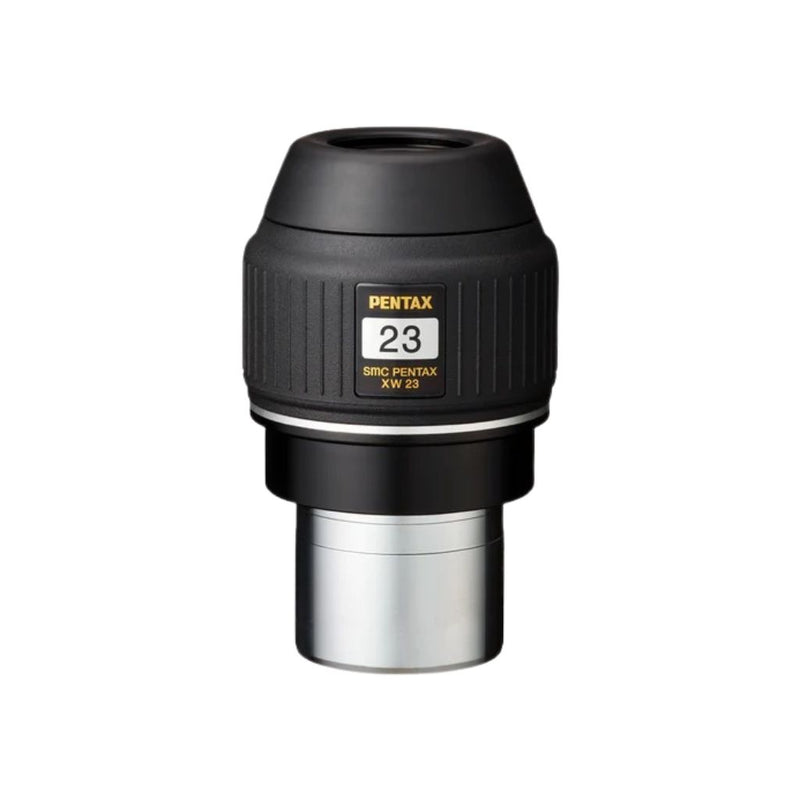

Pentax XW23 Eyepiece for Astronomical Telescopes

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

• Ricoh Imaging is pleased to announce the launch of two high-performance eyepieces for astronomical telescopes. The new smc PENTAX XW16.5 and smc PENTAX XW23 deliver an apparent field of view of 85°. The widest viewing angle in the XW series, suitable for observing nebulae and star clusters.

  The new eyepieces feature a new optical system with 7 elements in 5 groups that surpasses the performance of the conventional XW series to obtain sharp star images all the way to the edge of the field of view. Like all XW eyepieces, the new additions incorporate multi-layer coating for outstanding light transmission efficiency, advanced light-shielding technology for improved image contrast and weather resistant construction.

  Note: while the XW series features a weather resistant structure of JIS class 4, they cannot be used underwater.

• specifications

  Eye Relief	20mm
  Eyepiece Diameter	76mm
  Eyepiece Length	125mm
  Eyepiece Type	Wide Angle
  Eyepiece Weight	1.7 lbs
  Field of View	85 Degrees
  Focal Length	23mm
  Number of Elements	7
  Size	2"

• included items

  • XW23 eyepiece
  • Eyepiece lens cap
  • Objective lens cap
