$500 to $1,000 Pegasus Astro Indigo 7 Position Filter Wheel - 2" w/ LRGB Filter Set

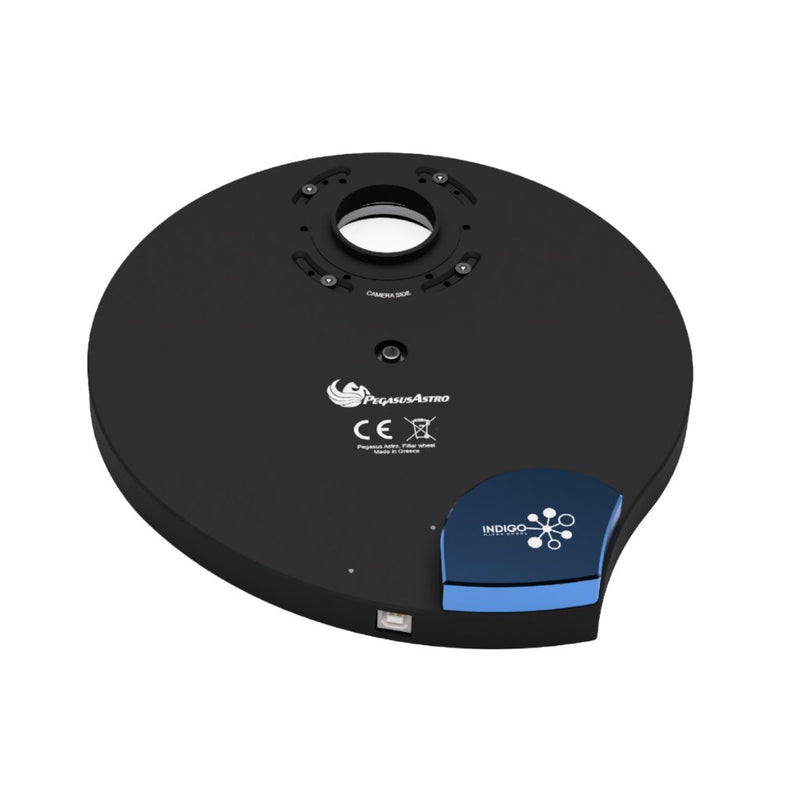

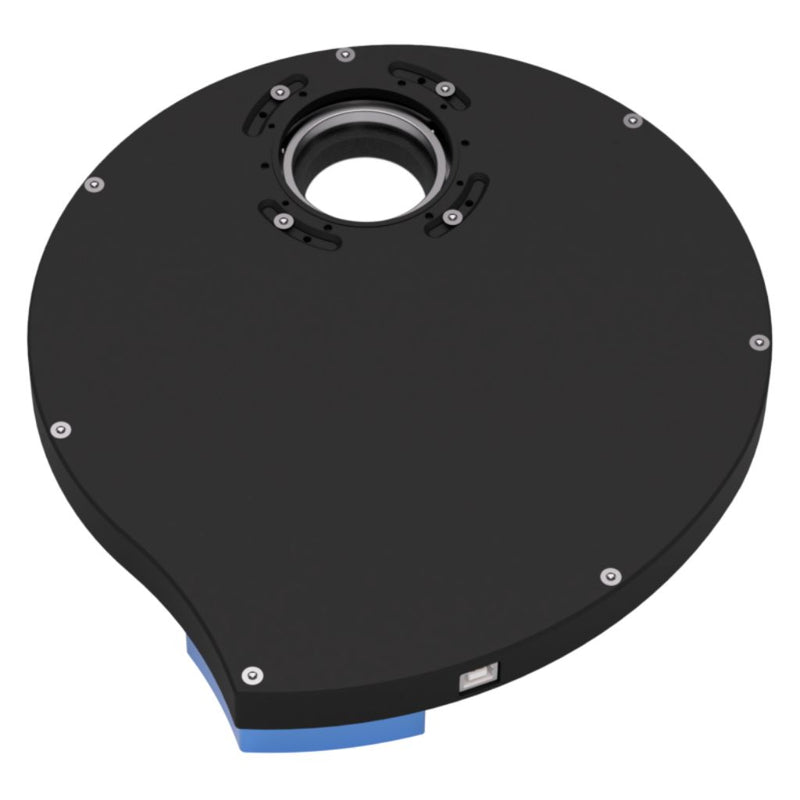

Pegasus Astro Indigo 7 Position Filter Wheel - 2" w/ LRGB Filter Set

Brand: Pegasus Astro

SKU : PGA-PEG-INDIGOFW-BUNDLE

- Read
$696.30
F34005CD-C89A-435A-B39C-A9E05E1BA24A

Price Match Guarantee

Looking for a Pegasus Astro Indigo 7 Position Filter Wheel - 2" w/ LRGB Filter Set? Shop this product at Agena Astro by clicking the SHOP NOW button!
SHOP NOW
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • The new high-quality Indigo Filter Wheel has a 7 position carousel and can house 2" mounted or 50mm unmounted filters
  • One Cable Operation
  • Thin Design
  • Orientation on Both Adapters

Product Details

  • The new high-quality Indigo Filter Wheel has a 7 position carousel and can house 2" mounted or 50mm unmounted filters.

    Orientation on Both Adapters

    Both sides of the filter wheel have M54 openings. The screw slide adapter allows you to properly align the orientation of your camera or telescope side. Just untie the screws and rotate the adapter to the desired orientation.

    Accurate Filter Selection

    The carousel has seven slots and accepts 2-inch mounted or 50mm unmounted filters (max filter diameter should be 50.8mm). Filter Wheel rotates clock or counterclockwise direction for filter selection. A combination of a direct drive stepper motor and optical encoders ensures that your filter selection is precise, and deadly accurate on every filter location. Pegasus Astro strongly suggests their photographic 2-inch filters in combination with the Indigo Filter Wheel.

    Thin Design

    The body of the Indigo filter wheel is aluminum CNC milled. High-quality aluminum alloy allowed us to design the filter wheel as thin as possible (19.0mm, 19.6mm with adapters installed on both sides).

    Camera Connection

    The 6 screw holes on the camera side allow direct connection with astronomical cameras that follow the same 6 x hole pattern (62mm diameter pattern) – can accept M3 or M2.5 screws). A neat feature allows you to reduce the total back focus instead of placing adapters.

    Mechanical Design

    Features:

    One Cable Operation

    Filter Wheel requires a USB2 (Type B) cable only. This simplifies the connectivity as it does not require a separate power supply when used with USB control.

    Thin Design

    The body of the Indigo filter wheel is aluminum CNC milled. High quality aluminum alloy allowed us to design the filter wheel as thin as possible (19.0mm, 19.6mm with adapters installed on both sides).

    Orientation on Both Adapters

    Both sides of the filter wheel have M54 openings. The screw slide adapter (image below) allows you to properly align the orientation of your camera or telescope side. Just untie the screws and rotate the adapter to the desired orientation.

  • specifications

    Free ShippingYes

  • included items

    • Indigo 7 Position Filter Wheel - 2"
    • LRGB Filter Set
