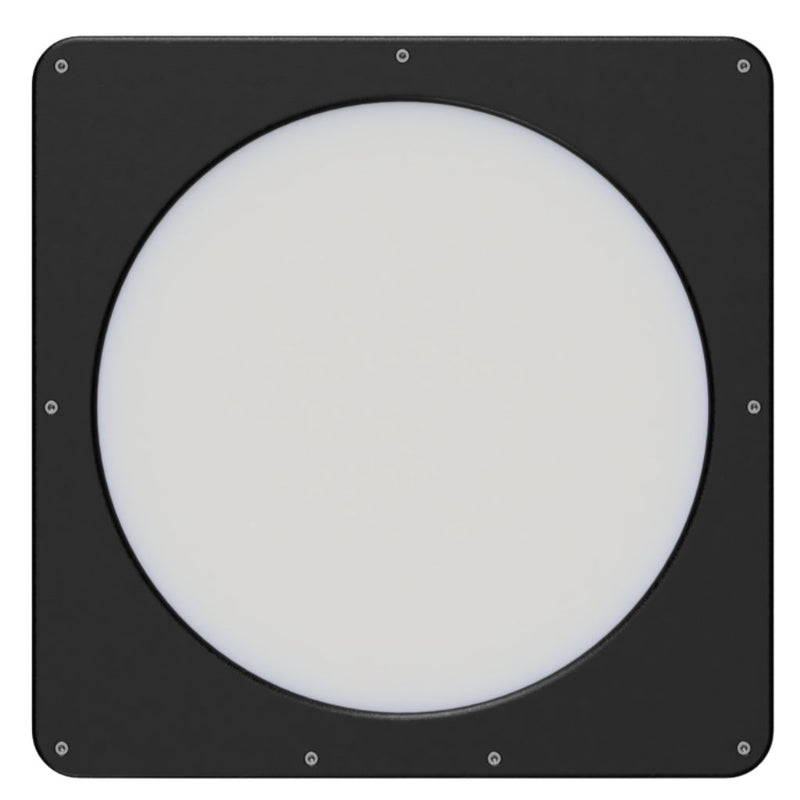

Pegasus Astro FlatMaster 250 - Dimmable Flat Panel

SKU : PGA-FLTMSTR250

- Read
  • One Left in Stock

Add to Wishlist

Got questions? Click for live chat

  • A flatfield electroluminescent panel for a uniform illumination of flat-frames. Produces high quality flatfield frames for astrophotography and photometric captures.
  • The panel will fit up to a 9-inch aperture telescope.
  • Can be run from your device, or manually with a push-button and five brightness settings.

Product Details

  • This FlatMaster 250 is the bigger flatfield electroluminescent panel from Pegasus Astro. It provides a uniform source of illumination for up to a 9-inch aperture telescope. It produces high quality flat-field frames for astrophotography and photometric captures.

    Pegasus Astro FlatMaster 250 - Dimmable Flat Panel-lit Image: With it illuminated.

    Dimmable EL Panel

    Unlike other EL (illumination) panels in the market, the FlatMaster can easily adjust its brightness. You can forget sheets of paper between your telescope and the panel. Now your can remotely control the EL lamp of your panel. Store the brightness per filter and immediately retrieve the value as needed.

    Manual Button

    This device has a small push button which sets five (5) levels of brightness. In case you would like to manually operate the FlatMaster, just click the push button to control the brightness.

    One cable operation

    There is only one USB2 type B cable required for use. This cable provides power and control of your panel.

    Standalone Software

    Software allows you to set filter names and store / retrieve brightness levels of your FlatMaster panel.

    Pegasus Astro FlatMaster 250 - Dimmable Flat Panel-screen

    Image: Screenshot of the display.

    Native support by the most popular imaging software

    FlatMaster is supported by the most popular imaging software packages,like SGPro, APT Voyager, or N.I.N.A..Pegasus Astro FlatMaster 250 - Dimmable Flat Panel-SW

    Technical Specifications:

    • Type: Electroluminescent Panel (White)
    • Dimmable: Yes -(0 to 100%).
    • Manual Push Button: 5 brightness levels.
    • Power requirements: 5V DC provided by USB type B cable.
    • Size: 320 mm.
    • Weight: 350g.



  • included items

    • A flatfield electroluminescent panel for a uniform illumination of flat-frames. Produces high quality flatfield frames for astrophotography and photometric captures.
    • The panel will fit up to a 9-inch aperture telescope.
    • Can be run from your device, or manually with a push-button and five brightness settings.

Product Reviews

Customer Reviews
3.5 Based on 2 Reviews
Write a Review Ask a Question
  • Reviews
  • Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
XL
12/22/2020
Xiaobin L.
United States United States
Unable to Lower Brightness

Works well in the beginning, then issues started to roll in. After a few uses, flat frames are showing horizontal patterns (with a CMOS camera at around 0.5s exposure). The strange pattern disappears at slightly longer exposures ( <2s), but it's a bit too bright for my camera. Then I tried to lower the brightness with the software but the brightness resets after around 15 seconds. Cannot lower the brightness either with power from a USB power bank and pressing the push button, as the light cuts off after a few seconds... I Wish the control software and firmware is more stable, otherwise, the product is really handy in many scenarios.

PM
11/17/2020
PHILLIP M.
United States United States
Pegasus Astro FlatMaster Flat Panel

Meets my expectations. No problems noted.
