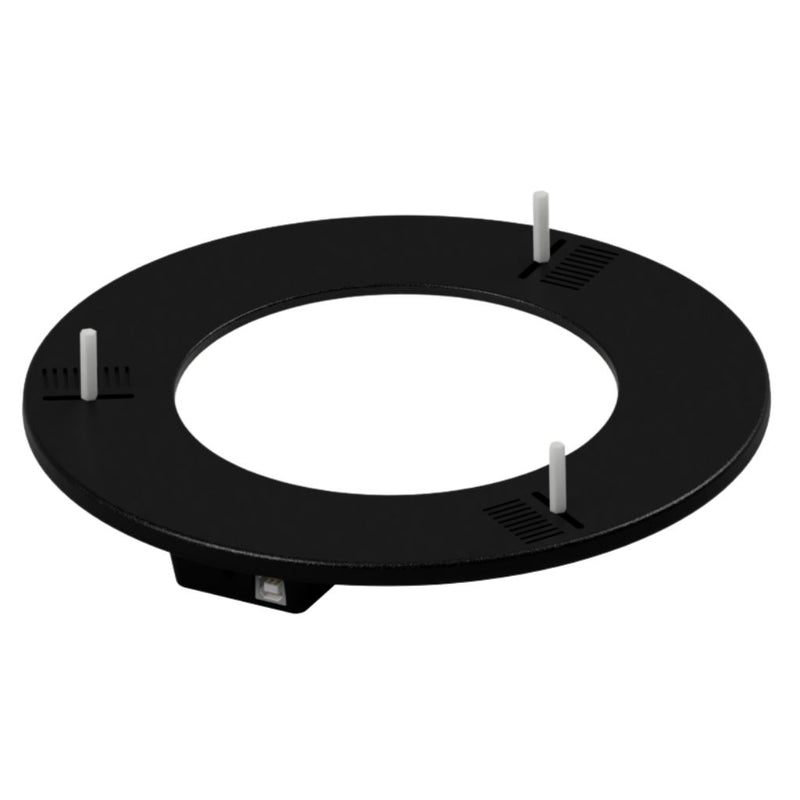

Pegasus Astro FlatMaster 150L

Brand: Pegasus Astro


- Read
Looking for a Pegasus Astro FlatMaster 150L? Shop this product at Agena Astro by clicking the SHOP NOW button!
Add to Wishlist

Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • Easily dimmable LED flatfield panel that produces beautiful flat field frames for astrophotography
  • Comes with a manual push button that has 5 brightness levels
  • Compatible with most popular imaging software, such as SGPro, APT, and Voyager

Product Details

  • Pegasus Astro FlatMaster 150L

    Pegasus Astro's new LED flatfield panel provides a uniform source of illumination up to 150mm and produces high-quality flat field frames for astrophotography and photometric captures. It can be used for telescopes up to 6 inches.

    Dimmable Panel

    Unlike other panels in the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget sheets of paper between your telescope and the panel. Remote control the brightness of your panel. Store the brightness per filter and immediately retrieve the value you need.

    The Flatmaster 150L can go up to very high brightness levels so it can easily support short exposures (2-3 seconds at f/7) with 3nm narrowband imaging filters.

    Manual Button

    The FlatMaster has a small push button that sets different gradual levels of brightness. In case you would like to manually operate the FlatMaster, no problem, just click the push button to control the brightness.

    One cable operation

    Only one USB type B cable provides power and control of your panel.

    Carry Bag

    A carry bag is in the package allowing you to easily transfer the FlatMaster 150 to any location.

    Unity Platform Support

    Unity Platform allows you to set filter names and store / retrieve brightness levels of your FlatMaster panel.

    ASCOM and INDI support

    The device is fully supported out of the box by ASCOM 6 & INDI.

    Technical Specs

    • Type - Led Light Panel (White)
    • Dimmable - Yes (0-100%)
    • Manual Push Buttons - Different brightness levels
    • Material - Strong black ABS plastic
    • Usable Diameter of Circle - 150 mm / 5.9"
    • Power Requirements - 5V DC provided by USB mini cable (500mA max current)
    • Size - Diameter 250 mm x 8 mm thickness
    • Weight - 350g (0.77 lbs)
  • included items

    • FlatMaster 150 (suitable for any telescope with apperture up to 150mm or 5.9 inches)
    • Carry bag
    • Cable USB2 Type B 1.8m
