Pegasus Astro External Motor Controller

Product Details

• Description
• Specifications
• Included Items
• Recommended Products
• Reviews

• An Ultimate Powerbox v2 and Pocket Powerbox Advance expansion accessory!

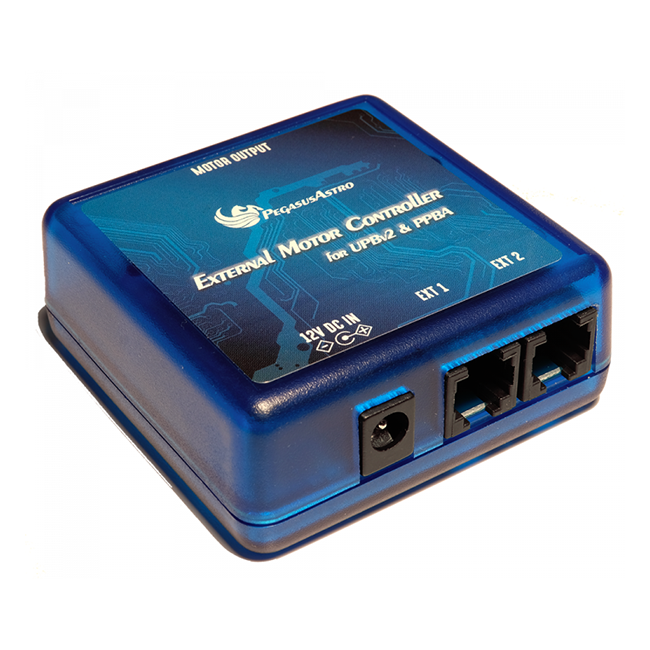

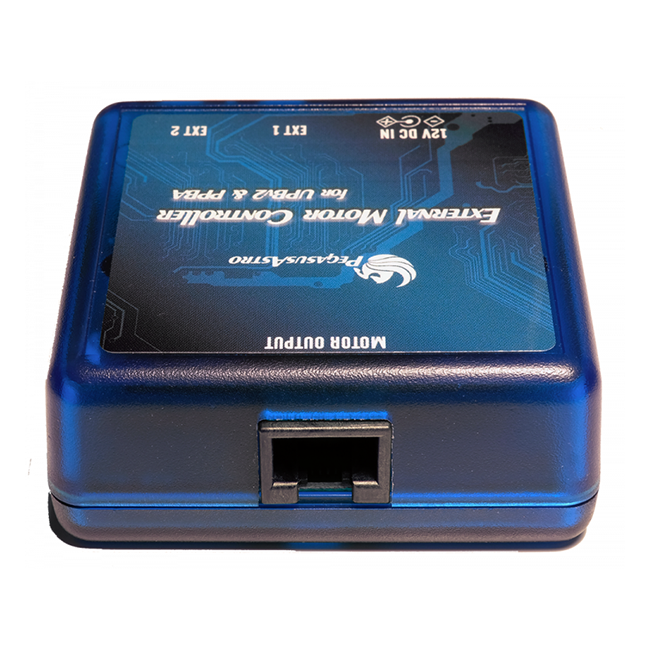

  The external motor controller (XMC) was designed to expand the focus capabilities of the “Ultimate Powerbox v2” (supports a 2nd focus controller) and adds focus functionality to the “Pocket Powerbox Advance“. The device does not require a USB cable and can be attached directly to the EXT port of the Powerboxes. It can drive a large bipolar or unipolar stepper motor (up to 2Amps per coil) with high precision.

  MICROSTEPPING

  Controller support micro-stepping which can be configured via software to Full, Half, 1/4 step and 1/8 step. This provides additional precision and a smooth rotation from the stepper motor.

  SUPPORTED MOTORS

  • Pegasus Motor Focus (v1 & v2) with Straight RJ45 network cable
  • Starlight HSM 25 / 30 / 35 with PEG-CMOT-HSM cable
  • Starlight MSM 25 / 30 / 35 with PEG-CMOT-MSM cable
  • Starizona Micro-Touch with PEG-CMOT-MSM cable
  • Rigel nStep Motors with PEG-CMOT-MSM cable
  • Moonlite Stepper Motor with PEG-CMOT-RJ45DB9 cable
  • Robofocus Stepper Motor with PEG-CMOT-RJ45DB9 cable
  • Lakeside Stepper Motor with PEG-CMOT-RJ45DB9 cable
  • Lacerta Motor with PEG-CMOT-LCRT cable

  NO USB PORT REQUIRED

  You do not have to occupy a USB port as the controller does not require a USB connectivity. Just plug the RJ12 port into the EXT port and the controller will be recognized from the power-box software. Simple as that!SECOND EXT PORT

  A second EXT port allows you to daisy chain future equipment or connect your environmental sensor.

  PROTECTIONS

  Fully protected against under-voltage, over-current, and over-temperature events.



  INCLUDED

  (1x) External Motor Controller(1x) RJ12 to RJ12 – EXT cable (60 cm)(1x) 2.1 mm to 2.1 mm DC cable (1 m)(1x) RJ45 to RJ45 Motor cable (1 m)

  TECHNICAL SPECIFICATIONS

  Supply Voltage: 12V DC Preferred. Accepts 8.2-V to 24V – depends of the motorDrive Current: 2 Amps per motor coilMotor Compatibility: Unipolar and Bipolar Stepper MotorsMotor Output: RJ45 SocketConnectivity: RJ12 Socket (Straight RJ12 to RJ12 cable) up to metersPower Input Connector: 2.1 mm Center Positive SocketDimensions: 66 mm (2.6-inches) x 66 mm (2.6-inches ) x 28 mm (1.1-inches).



• specifications

  Connectivity	RJ12 Socket
  Drive Current	2Amps per motor coil
  Free Shipping	Yes
  Motor Compatibility	Unipolar and Bipolar Stepper Motors
  Motor Output	RJ45 Socket
  Power Input Connector	2.1 mm Center Positive Socket
  Power Required	8.2V to 24V

• included items

  • External motor controller (XMC) for Ultimate Powerbox v2 and Pocket Powerbox Advance
  • Added focus functionalities
  • No USB required
  • 2 EXT ports
