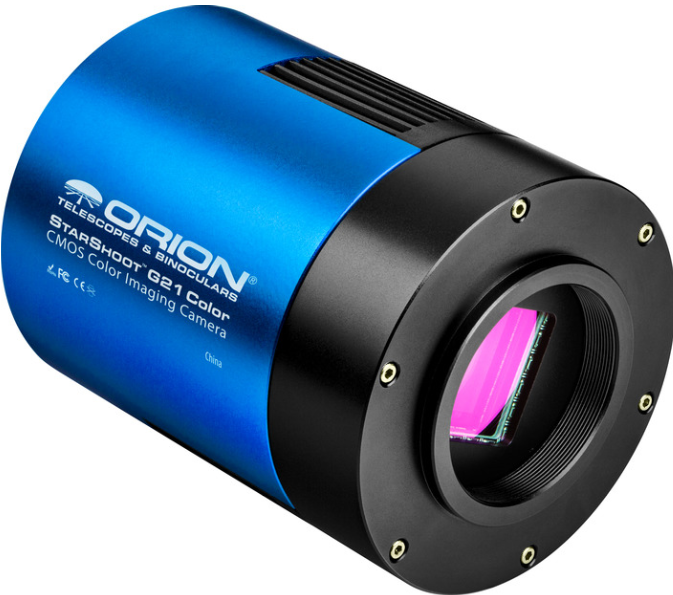

Orion StarShoot G21 Deep Space Camera - Color

SKU : OR-54290

- Read
  • Call for Availability

  • Extended Backorder

Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • The StarShoot G21 Color Deep Space Camera features multiple resolutions (up to 5280x3956) with 3.3 micron pixels
  • Fully ASCOM compatible for use with Sequence Generator Pro, Nebulosity, SharpCap, and more!
  • Perfect for short exposure video planetary imaging and long exposure deep-sky shots due to the 0.1ms-3600s exposure range and USB 3.0 video frame rates up to 18 fps full frame (75+ subframe)

Product Details

  • The Orion StarShoot G21 Deep Space Color Camera is a massive pixel count deep-sky astrophotography camera that uses the Sony IMX629 12-bit CMOS chip, complete with 3.3 micron pixels and 20.9M pixel array. Multiple resolution/aspect ratios are available in software, going all the way up to 5280x3956 pixels! This camera is wonderful for shooting planets and nebulae thanks to the 0.1ms-3600s exposures and up to 18 fps full frame (and much higher when subframing).

    The StarShoot G21 is equipped with a two-stage regulated thermo-electric (TE) cooler with a fan, which is capable of reaching ~40-degrees C below ambient, drastically reducing noise in your images. The USB 3.0 interface provides exceptionally fast frame rates and downloads. You can power the camera electronics via the USB port and the TE cooler by an included AC adapter.

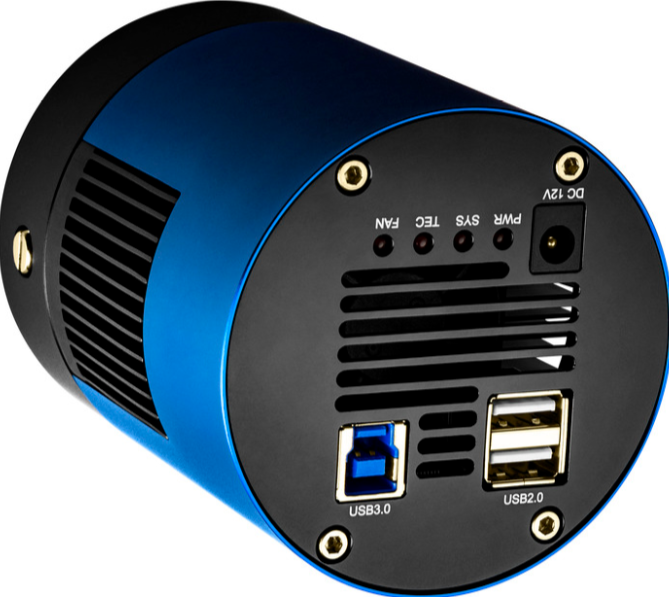

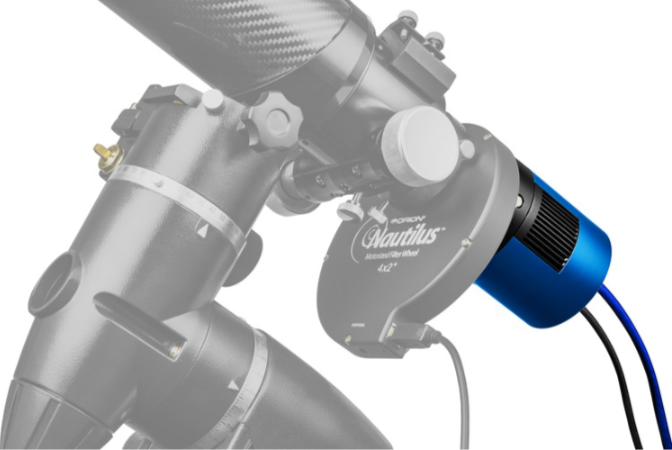

    A standard T-thread is cut into the front of the G21 Deep Space Camera, and you can attach the camera to most all telescope configurations including coma correctors, flatteners, and off-axis guiders using the included 2" nozzle. The built-in USB 2.0 hub allows you to directly wire your filter wheel and guidescope camera to the G21, meaning you'll only have the 1 USB cable running to your laptop. You won't have to worry about unruly cables hanging all over your set-up!

    This one-shot color CMOS chip excels at seeing faint objects in relatively short exposures, and adjustable gain means you can increase the sensitivity in a given exposure. The G21 has small pixels, which leads to better arc-seconds per pixel resolution, which is useful when imaging planets at higher power while sub-framing. The greater number of pixels also allows you to create large prints of your final image!

    The G21 Camera is compatible with Windows 7/8/10 and includes a hard case, along with free control and image acquisition software. It is also ASCOM compatible, meaning that you can use most dedicated astro-imaging software to unlock the full potential of your new StarShoot G21 camera!

  • specifications

    ADC12 bit
    Back Focus17.5 mm
    Camera ConnectionT thread
    Color or MonoColor
    CooledCooled
    Cooling Below Ambient40C
    Dynamic Range12 Stops
    Full Rez Frame Rate18fps
    Full Well23ke
    Mega Pixels20.9 MP
    Peak QE84%
    Pixel Array5280 x 3956
    Pixel Size3.3 microns
    Read Noise1.36e
    Sensor Diagonal21.8 mm
    Sensor TypeCMOS
    SensorSony IMX269
    Weight1.1875 lb
  • included items

    • Orion StarShoot G21 Deep Space Camera - Color
    • Hard Case
    • AC Adapter
    • USB 3.0 Cable
    • Removable Desiccant Plug
