Orion Mini 50mm Guide Scope

Brand: Orion

SKU : OR-08891

- Read
Looking for a Orion Mini 50mm Guide Scope? Shop this product at Agena Astro by clicking the SHOP NOW button!
SHOP NOW
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • Mini 50 mm Guide Scope
  • For Astrophotography Guide Star Acquisition.
  • Use with Orion StarShoot AutoGuider (sold separately)
  • Ideal for Guiding Long-Exposure Astrophotographs
  • Focus-Adjusting Front Ring with Locking Collar.
  • A Parfocal Ring for Repeating Autoguiding Performance



Product Details

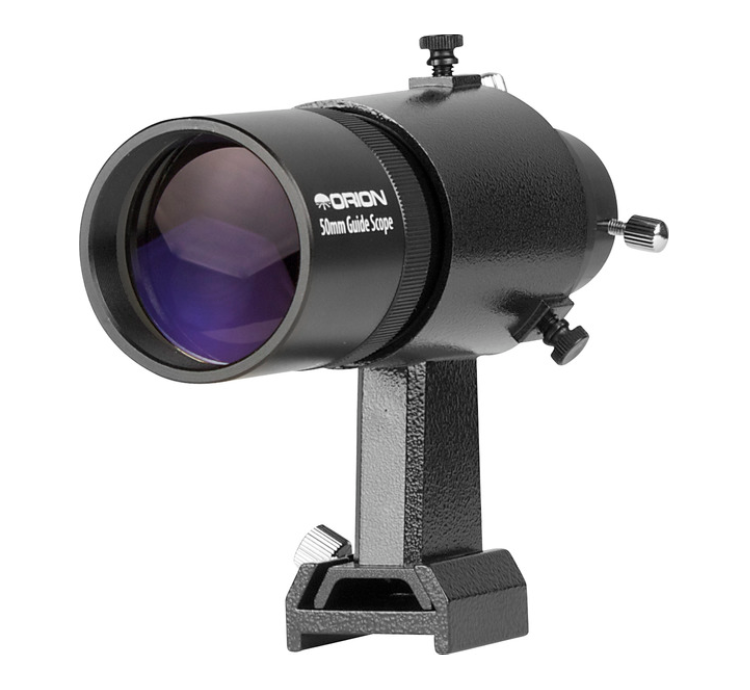

  • The Orion-designed Mini 50 mm Guide Scope is a complete and compact guide scope 50 mm (1.97-inches) aperture - solution designed for use with the Orion StarShoot AutoGuider (sold separately #OR-52064) or similar small-chip CCD autoguider devices. The Orion Mini 50 mm Guide Scope is ideal for guiding long-exposure astrophotographs with imaging telescopes up to 1500 mm in focal length.

    Thanks to the high level of guiding accuracy offered by modern autoguider devices such as the Orion StarShoot AutoGuider, astro-imagers of today can use guide scopes with much shorter focal lengths and smaller apertures compared to the large, bulky models used in the past. Using a more optically "fast" refractor as a guide scope can save astro-imagers time, space, and money, but will still provide the unrivaled accuracy that only autoguiding can bring to long-exposure astrophotographs. Although modern dedicated autoguider devices allow small, optically fast guide scopes to be used with excellent results, there is an unfortunate scarcity of quality offerings available. That is, until now. Our new Orion Mini 50mm Guide Scope brings autoguiding into the realm of affordability for any astro-imager, and brings the guide scope to a position that was previously occupied by a telescope finder scope.

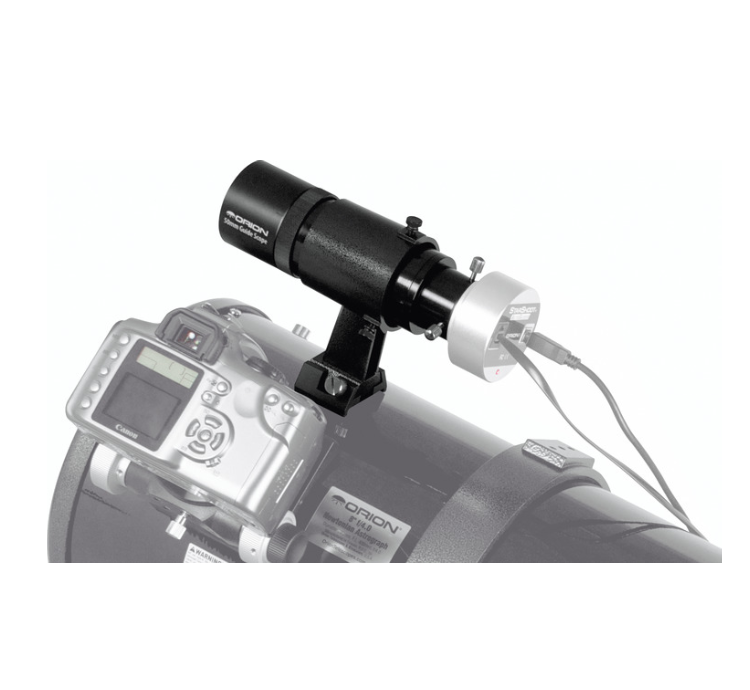

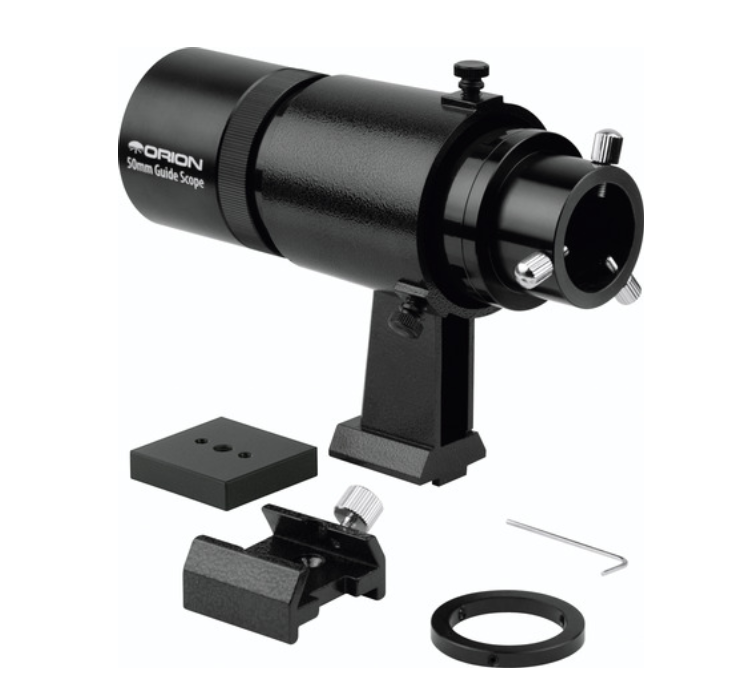

    Consisting of a 50 mm aperture, 162 mm focal length (f/3.2) achromatic refractor guide scope, an adjustable dovetail guide scope bracket, an 1.25-inch aluminum parfocal ring, a dovetail mounting base, and an adapter plate, the Orion Mini 50mm Guide Scope makes it easy for any astro-imager to enjoy the precision of autoguiding in their images. All this pint-sized setup requires is a StarShoot AutoGuider (sold separately) or similar small-chip CCD autoguider and it's ready for "Night. Camera. Action!" The guide scope bracket fits into the standard Orion dovetail finderscope base found on most Orion telescopes. If your imaging scope doesn't feature a dovetail base or has one already occupied by an often-used finder, the included dovetail base and attachment hardware lets you attach the Mini 50 mm Guide Scope to any optical tube.

    Alternatively, the included adapter plate can be used to attach the dovetail base and Mini 50 mm Guide Scope to any standard dovetail plate, or side-by-side plate if preferred. The featherweight guidescope tips the scales at a mere 16 oz., and has been designed for use with imaging telescopes measuring up to 1500 mm in focal length. This one-pound wonder Mini 50 mm Guide Scope features fully multi-coated optics and a focus-adjusting front ring with locking collar. The included parfocal ring makes it easy to repeat autoguiding performance night to night, by letting you set the ideal focus position of the autoguider. Find out how easy and affordable it can be to add autoguiding precision to your images today with the new Orion Mini 50mm Guide Scope!



    Orion Mini 50 mm Guide Scope Features

    • Compact mini guide scope designed for use with astrophotography telescopes up to 1500 mm focal length
    • Mini 50 mm guide scope with bright, wide-field optics puts numerous potential guide stars in view so you'll never have to search for one!
    • Adjustable-aim dovetail guide scope bracket installs on virtually any astrophotography telescope quickly and easily
    • Very small and compact autoguiding system adds hardly any weight to an astrophotography setup and can conveniently be stashed in an accessory case between uses
    • Designed for use with Orion StarShoot AutoGuider (sold separately) and other similar small-chip CCD autoguiders
    OPT Product Number: OR-08891
  • specifications

    Aperture50 mm (1.97")
    Dawes Limit2.32 arcseconds
    Focal Length162mm
    Focal Ratiof/3.2
    Free ShippingYes
    Highest Magnification100x
    Light Gathering Power51x
    WarrantyOrion Limited Warranty
  • included items

    • Mini 50 mm Guide Scope
    • For Astrophotography Guide Star Acquisition.
    • Use with Orion StarShoot AutoGuider (sold separately)
    • Ideal for Guiding Long-Exposure Astrophotographs
    • Focus-Adjusting Front Ring with Locking Collar.
    • A Parfocal Ring for Repeating Autoguiding Performance
