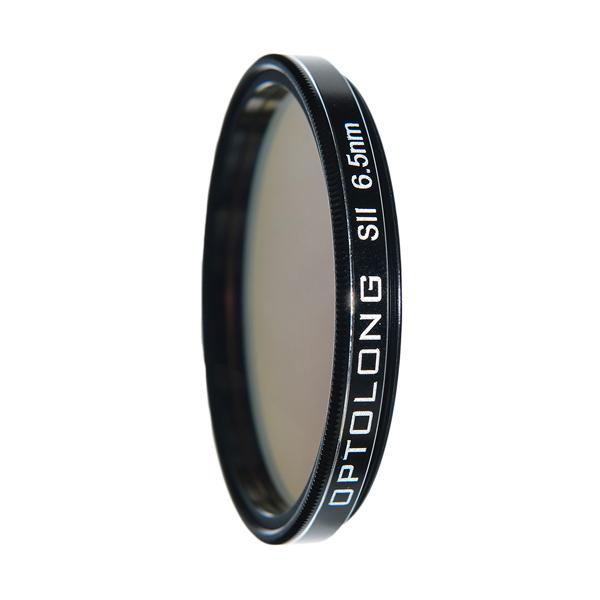

Optolong SII Narrowband Telescope Filter - 31mm

Brand: Optolong

SKU : OL-SII-31

- Read
Looking for a Optolong SII Narrowband Telescope Filter - 31mm? Shop this product at Agena Astro by clicking the SHOP NOW button!
SHOP NOW
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • SII 6.5nm CCD Deep Sky Imaging Filter
  • 80% peak transmission

Product Details

  • The SII-CCD 6.5nm Deep Sky Imaging Filter:

    This filter is an extra narrowband SII-CCD 6.5nm filter (Sulfur II for CCD) is designed for nebula observation allowing 6.5nm bandwidth of light centered on a wavelength of 672nm through, and reducing the transmission of certain wavelengths of light, specifically those produced by artificial light including mercury vapor, and both high and low pressure sodium vapor lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow).

    Main Use and Performance

    • Use with H-alpha and OIII-CCD extra narrowband filters (SHO Set) for tricolor CCD astrophotography
    • Narrowband imaging with SHO set can be done with the moon up in heavy light pollution, so your equipment is not sitting dormant for several weeks
    • Hubble look of images can be made by the combination of H-alpha, OIII-CCD and SII-CCD, such as the famous “Pillars of Creation” (M16 Eagle Nebula)
    • Narrowband filter do not eliminate the effects of light pollution or increase the object’s brightness. In many cases, they increase the contrast between nebula and night sky, not brightening the nebula.

    Optolong LRGB Ha SII & OIII Telescope Filter Kit-SII graph



    Features of the SII Filter:

    Technical Data

    • Schott substrate material
    • Thickness 2.0mm
    • Surface Quality: 60/40 (Refer to MIL-O-13830)
    • Fine-optically polished to ensure accurate 1/4 wavefront and <30 seconds parallelism over the both surfaces
    • The SII filter has 80% transmission, the SII line is 672nm
    • Precision off-band blocking

    Coating Parameter

    • Multi-layers anti-reflection coating
    • Non-cementing optical substrate coating
    • Electron-beam gun evaporation with Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL(central wavelength) no deviation affected by temperature change
    • Planetary rotation system offers precision and homogeneity of coatings ensuring high value on transmission of pass-band and Optical density of off-band

    Filter Cell

    • Ultra-thin filter cell minimize vignetting by maximize possible clear aperture (clear aperture is 26mm for 1.25-inch; 45mm for 2-inch)
    • Aerometal Material
    • Precise CNC Machining
    • Sand Blasting Process
    • Black Anodized Finish
    • Extinction Treatment to Prevent Reflection
    • Laser Engraving No Fading



  • specifications

    BandpassNarrow Bandpass at 672nm
    Filter Thickness2mm
    Filter TypeSII
    Free ShippingYes
    ShapeRound
    Size31mm
  • included items

    • SII 6.5nm CCD Deep Sky Imaging Filter
    • 80% peak transmission
