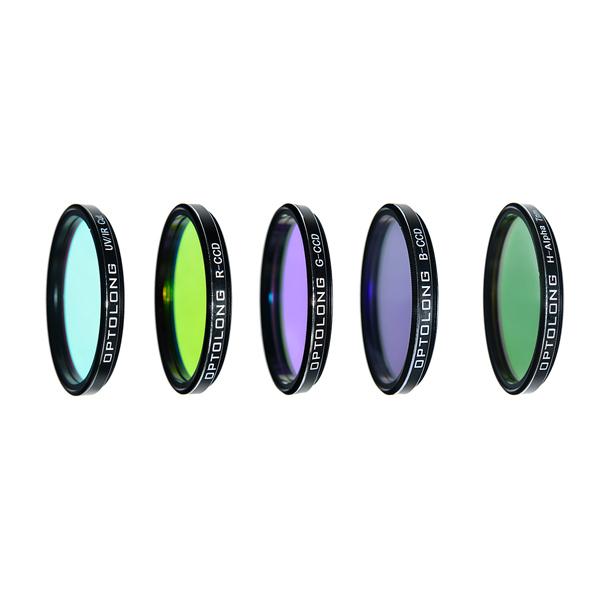

Optolong LRGB HA Kit Telescope Filter Kit - 36mm

Brand: Optolong

SKU : OL-LRGBHA-36

- Read
Looking for a Optolong LRGB HA Kit Telescope Filter Kit - 36mm? Shop this product at Agena Astro by clicking the SHOP NOW button!
SHOP NOW
Add to Wishlist

52D158B8-B55E-4DF3-8064-D4A13DFFDDC4 Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • Deep Sky CCD Imaging Filters: Luminance, Red, Green, and Blue
  • Narrowband Filter H-alpha (7nm)

Product Details

  • The LRGB H-alpha telescope filter Kit is designed for maximum contrast and with extremely high gradients for clear differentiation of colors along with the most popular narrowband filter which allow only 7nm bandwidth of light.



    The LRGB filter set:

    This set divides the spectrum into its components red, green, blue, and luminance.

    OIII emission overlaps on blue and green filters with maximum transmission to allow high efficiency and natural color imaging. Gap between green and red filters serves to block out the primary Sodium light pollution line at 589nm and improves color balance and separation.

    Main Use and Performance

    • Work well with debayered monochrome CCD cameras
    • Suitable for deepsky and planetary CCD imaging
    • RGB-imaging allows equal weighting factors for each channel, very important for automated imaging.
    • The ideal raw material for image processing in the sRGB color space is available with LRGB filter set and mono CCD camera.

     Optolong LRGB HA Kit Telesocpe Filter Kit-lrgb-graph



    The H-alpha 7nm Deep Sky Imaging Filter:

    H-Alpha 7nm filter is the most popular narrowband filter allowing 7nm bandwidth of light centered on a wavelength of 656nm through, and reducing the transmission of certain wavelengths of light, specifically those produced by artificial light including mercury vapor, and both high and low pressure sodium vapor lights and the unwanted natural light caused by neutral oxygen emission in our atmosphere (i.e. skyglow). Best choice of narrowband H-alpha astrophotography filter for highest contrast and revealing subtle nebula details.

    Main Use and Performance

    • Suitable for viewing on faint emission nebula of H-Alpha line in full moonlight or in severe light pollution
    • Hubble look of images can be made by the combination of H-alpha, OIII-CCD and SII-CCD, such as the famous “Pillars of Creation” (M16 Eagle Nebula)
    • Narrowband imaging with SHO set (H-alpha, OIII-CCD and SII-CCD) can be done with the moon up in heavy light pollution, so your equipment is not sitting dormant for several weeks
    • H-alpha filter is the first narrowband addition to LRGB set for most imagers who blend a black-and-white Ha image into RGB data to enhance structural detail while maintaining natural look
    • Narrowband filter do not eliminate the effects of light pollution or increase the object’s brightness. In many cases, they increase the contrast between nebula and night sky, not brightening the nebula.

     Optolong LRGB HA Kit Telesocpe Filter Kit-ha-graph

    Features of the Full Kit:

    Technical Data

    • Schott substrate material
    • Thickness 2.0mm
    • Surface Quality: 60/40 (Refer to MIL-O-13830)
    • Fine-optically polished to ensure accurate 1/4 wavefront and <30 seconds parallelism over the both surfaces
    • 95% transmission at bandpass /Ha filter has 80% transmission at H-alpha line 656nm
    • Infrared wavelength 700 to 1100nm cut-off
    • Precision off-band blocking

    Coating Parameter

    • Multi-layers anti-reflection coating
    • Non-cementing optical substrate coating
    • Electron-beam gun evaporation with Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL(central wavelength) no deviation affected by temperature change
    • Planetary rotation system offers precision and homogeneity of coatings ensuring high value on transmission of pass-band and Optical density of off-band

    Filter Cell

    • Ultra-thin filter cell minimize vignetting by maximize possible clear aperture (clear aperture is 26mm for 1.25-inch; 45mm for 2-inch)
    • Aerometal Material
    • Precise CNC Machining
    • Sand Blasting Process
    • Black Anodized Finish
    • Extinction Treatment to Prevent Reflection
    • Laser Engraving No Fading



  • specifications

    Bandpass7nm
    BandpassMulti Bandpass
    Filter Thickness2mm
    Filter TypeKit
    Filter TypeLRGB
    Free ShippingYes
    ShapeRound
    Size36mm
  • included items

    • Luminance, Red, Green, and Blue filters
    • 7nm H-alpha narrowband filter
